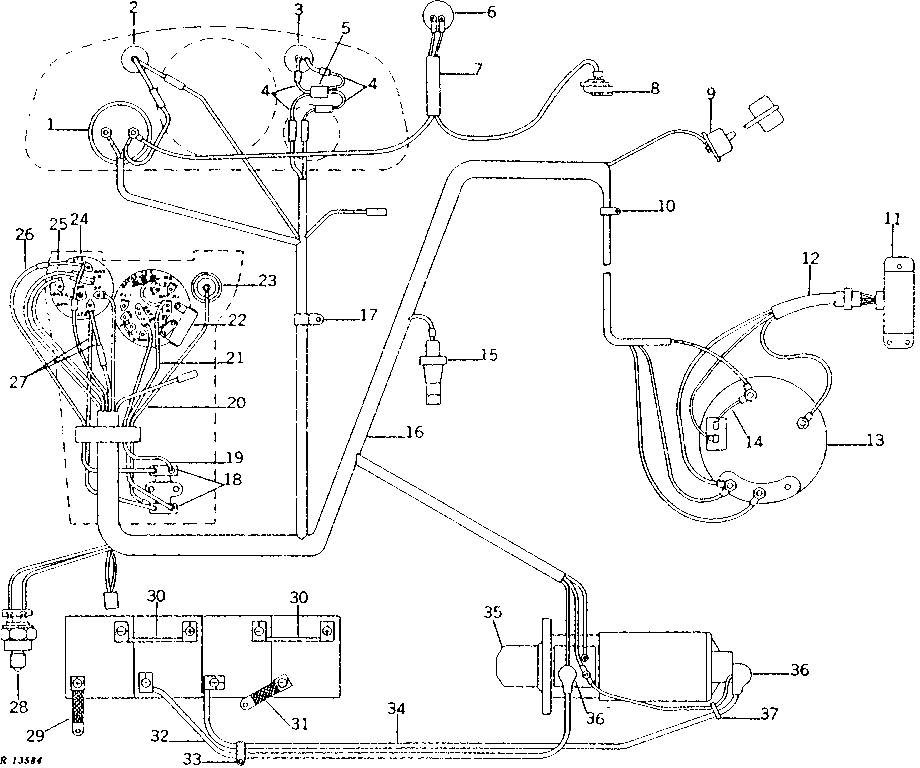

ALTERNATOR AND STARTER WIRING (TRACTOR SERIAL NO. -005573) [01D15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR46271	1	GAUGE	FUEL, (SUB FOR AR26716, R34262 OR AT27153)
2	AR27944	1	LAMP	ENGINE OIL PRESSURE, (SUB AT48674, AR55694, AT44165 AND R30378)
3	AT14699	1	INDICATOR LAMP	ALTERNATOR INDICATOR, (SUB FOR AR29350)
4	AR39839	2	WIRING HARNESS	-
5	R15005	1	RESISTOR	-
6	AR21823	1	SWITCH	-
7	R34702	1	WIRING HARNESS	(SUB FOR AR30415)
8	AT39043	1	High Note Horn	(SUB FOR AR11308 OR R11276)
9	R35648	1	FUEL SENDER	FUEL
10	R183R	1	CLIP	-
10	24H1287	1	Washer	9/32" X 5/8" X 0.065"
11	AR36977	1	VOLTAGE REGULATOR	(MOTOROLA) (SUB FOR R15017) (NLA)
12	AR39845	1	WIRING HARNESS	(NLA)
13	AR40419	1	ALTERNATOR	(24-VOLT) (MOTOROLA) (SUB FOR AR15007) (SUB TY1448)
13	TY1448	1	ALTERNATOR	(24-VOLT) (SUB FOR AR15007 OR AR40419)
13	SE501351	1	ALTERNATOR	(REMAN FOR AR40419)
14	-	1	Part 17	102MM (4") (MAKE FROM R66319, R32018, R65600 AND T28585)
15	AT85174	1	Switch	OIL PRESSURE, (SUB FOR AR27977)
16	AR47668	1	WIRING HARNESS	(NLA)
16	B1986R	2	CLIP	-
16	R44302	2	Tie Band	(SUB FOR R27457)
16	T13814	1	Clamp	-
17	T13814	1	Clamp	-
18	AR28403	2	CIRCUIT BREAKER	-
19	-	1	Part 25	254MM (10") (SUB FOR AR30048) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
20	-	1	Part 26	318MM (12-1/2") (SUB FOR AR30054) (MAKE FROM R66319 AND (2) R32018)
21	-	1	Part 27	254MM (10") (SUB FOR AR30048) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
21	R36838	1	WIRING HARNESS	(NLA)
22	AR28402	1	SWITCH	LIGHT
22	R37270	1	SWITCH	LIGHT
23	AR48643	1	ELECTRICAL LIGHTER	(SUB FOR AR30052 OR AR34556)
24	AR26557	1	SWITCH	STARTER
25	AR39851	1	WIRING HARNESS	STARTER SWITCH (NLA)
26	-	1	Part 34	254MM (10") (SUB FOR AR30048) (MAKE FROM R66319, R32018, R65600, T28585 AND R32027)
27	AR30050	1	WIRING HARNESS	(NLA)
28	RE38390	1	SWITCH	NEUTRAL START, (SUB FOR R36265, AR85323, AR89691 OR AT85123)
28	T16911	2	SHIM	-
29	AR26619	1	GROUND CABLE	(SUB FOR AB1833R)
29	24H1305	1	Washer	13/32" X 13/16" X 0.065"
29	19H2284	1	Cap Screw	3/8" X 7/8"
29	12H304	1	Lock Washer	3/8"
30	RE21742	2	Battery Cable	(SUB FOR AA4039R)
31	12H304	1	Lock Washer	3/8"
31	19H2284	1	Cap Screw	3/8" X 7/8"
31	24H1305	1	Washer	13/32" X 13/16" X 0.065"
31	AR26622	1	GROUND CABLE	NEGATIVE
32	AR35212	1	BATTERY CABLE	NEGATIVE
33	R35668	1	Clamp	-
33	19H1936	1	Cap Screw	3/8" X 3/4"
33	12H304	1	Lock Washer	3/8"
34	AR35213	1	BATTERY CABLE	POSITIVE
35	AR45036	1	STARTER MOTOR	(24-VOLT) (PRESTOLITE) (SUB FOR AR14006 OR AR36849) (SUB TY6721)
35	TY6721	1	STARTER MOTOR REMAN	(24-VOLT) (REMANUFACTURED) (PRESTOLITE) (SUB FOR TY6610, AR14006, AR36849 OR AR45036)
35	RE43047	1	STARTER MOTOR	(24-VOLT) (DELCO-REMY) (SUB FOR AR55313, AR102770 OR AR102771)
35	TY6699	1	STARTER MOTOR	(24-VOLT) (REMANUFACTURED) (DELCO-REMY) (SUB FOR TY6611, AR55313, AR102770 OR AR102771)
35	TY6747	1	ALTERNATOR	(24-VOLT) (REMANUFACTURED) (DELCO-REMY)
35	SE501373	1	ALTERNATOR	(REMANUFACTURED FOR TY6747)
35	SE501443	1	STARTER MOTOR	(REMANUFACTURED FOR TY6699)
36	R30964	2	Cover	-
37	R44302	1	Tie Band	(SUB FOR R27457)

ALTERNATOR AND STARTER WIRING (TRACTOR SERIAL NO. -005573) [01D15]
