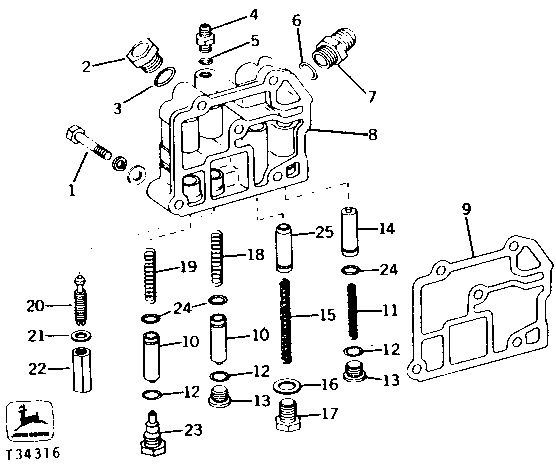

TRANSMISSION OIL FILTER VALVE HOUSING (COLLAR SHIFT) [01J03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3197	1	CAP SCREW	7/16" X 4"
1	19H2500	1	CAP SCREW	7/16" X 1-3/8"
1	24H1325	5	Washer	15/32" X 59/64" X 0.065"
1	12H293	5	Lock Washer	7/16"
1	19H2227	1	CAP SCREW	7/16" X 2-1/2"
1	19H2055	2	CAP SCREW	7/16" X 2-1/4"
2	R42002	1	DRAIN PLUG	-
3	B2762R	1	O-Ring	-
4	AR30762	1	Tee Fitting	-
5	R26286	1	O-Ring	-
6	U12547	1	O-Ring	(SUB FOR F3171R)
7	R27267	1	Fitting	-
8	AR52630	1	HOUSING	WITH BALL, (MARKED R40664, R44006 OR R49200)
8	R39112	1	Fitting	-
8	R26375	1	O-Ring	-
8	400R	1	Ball	-
9	R49758	1	GASKET	(SUB FOR R41463)
10	R57559	2	VALVE	-
10	R33162	1	VALVE	(SUB R57559 AND R33259)
11	R26686	1	SPRING	-
12	R26375	3	O-Ring	-
13	R33138	2	Fitting	-
14	R49197	1	VALVE	(SUB R57561 AND R33259)
14	R57561	1	VALVE	-
15	R39808	1	SPRING	-
16	R1742R	1	WASHER	-
17	R52589	1	FITTING PLUG	(SUB FOR R33163)
18	R28914	1	SPRING	-
19	R42057	1	Spring	-
20	R39587	1	SET SCREW	-
21	F2846R	1	WASHER	-
22	F2847R	1	NUT	-
23	R36943	1	Fitting	-
24	R33259	3	O-Ring	-
25	R33162	1	VALVE	(SUB R57559)
25	R57559	1	VALVE	(DO NOT USE R33259, THIS APPLICATION ONLY)

TRANSMISSION OIL FILTER VALVE HOUSING (COLLAR SHIFT) [01J03]
