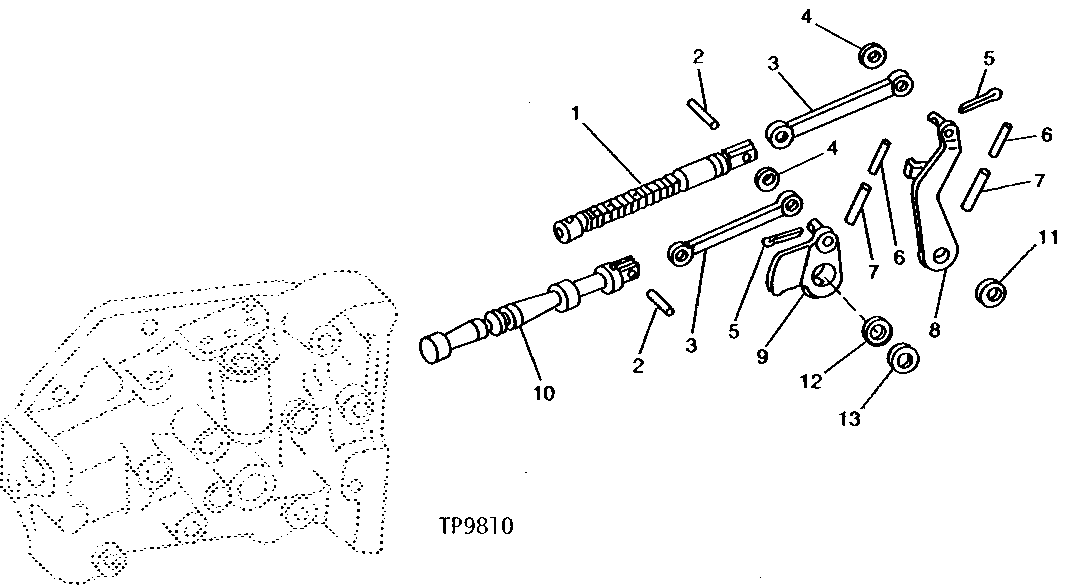

TRANSMISSION CONTROL VALVE ARMS AND VALVES (POWER SHIFT) [01F22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R82116	1	VALVE	(SUB FOR R72412)
1	R48370	1	VALVE	(SUB FOR R33292)
2	34H309	2	Spring Pin	1/4" X 5/8"
3	R33290	2	LINK	-
4	24H753	2	Washer	9/32" X 5/8" X 0.049"
5	11M7077	2	Cotter Pin	1.600 X 25 MM
6	R56503	2	SPRING PIN	1/8" X 1"
7	34H282	2	Spring Pin	3/16" X 1"
7	R56504	2	Spring Pin	7/32" X 1"
8	RE22319	1	ARM	WITH BEARING, (SUB FOR AR53840)
8	-	1	Part 10	( AR32155 NO LONGER AVAILABLE) (SUB RE21304, R49816, R49819, 34H297, 34H251, 34H299 AND 34H252, THIS APPLICATION)
9	-	1	Part 12	( AR32154 NO LONGER AVAILABLE) (SUB RE22320, R49817, R49819, 34H297, 34H251, 34H299 AND 34H252, THIS APPLICATION)
9	RE22320	1	ARM	WITH BEARING, (SUB FOR R53841)
10	R41649	1	SPOOL VALVE	-
10	R33291	1	VALVE	-
10	R82024	1	VALVE	(SUB FOR R72411) (ALSO ORDER RE21304 AND RE22320)
11	R51494	1	WASHER	1.50 MM (.060")
11	T16911	1	SHIM	0.38 MM (.015")
11	R67193	1	SHIM	0.33 MM (.013")
12	24H1359	2	Washer	5/8" X 7/8" X 0.060"
13	24H1806	1	Washer	37/64" X 7/8" X 0.036"

TRANSMISSION CONTROL VALVE ARMS AND VALVES (POWER SHIFT) [01F22]
