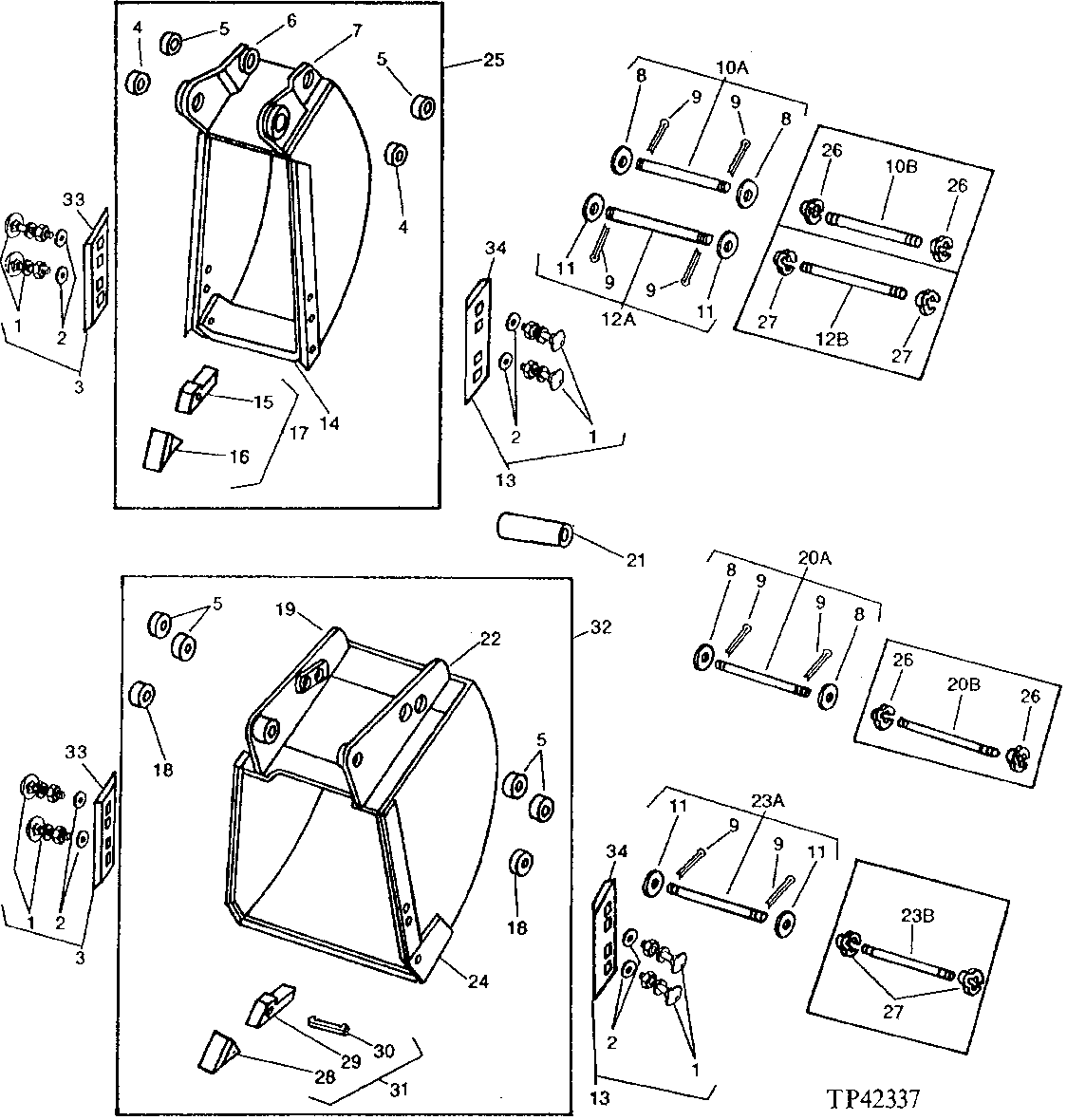

STANDARD BUCKETS (WITH STRAIGHT PIVOT PLATES) [02K03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H301	6	Lock Washer	1/2"
1	14H826	6	Nut	1/2"
1	03H1439	6	Bolt	1/2" X 1-3/4"
2	24H1162	6	Washer	17/32" X 1-1/4" X 0.060"
3	-	1	Part 5	L.H. ( AU12225 NO LONGER AVAILABLE)
4	U10481	1	BUSHING	(2 USED WITH 305 MM (12") AND 406 MM (16") BUCKET)
5	T105988	1	Bushing	305 MM, 406 MM, 914 MM (2 USED WITH 12", 16" AND 4 USED WITH 36" BUCKET) (SUB FOR U42739)
6	AU13425	1	PLATE	PIVOT L.H. (2 USED WITH 305 MM (12") AND 406 MM (16") BUCKET)
7	AU13424	1	PLATE	PIVOT R.H. (2 USED WITH 305 MM (12") AND 406 MM (16") BUCKET)
8	U11649	2	WASHER	-
8	U11649	4	WASHER	-
9	11H221	8	COTTER PIN	3/8" X 2-1/2"
9	11H221	4	COTTER PIN	3/8" X 2-1/2"
11	U11650	4	WASHER	-
11	U11650	2	WASHER	-
13	-	1	Part 22	R.H. ( AU12224 NO LONGER AVAILABLE)
14	U16079	1	CUTTING EDGE	FRONT, (FOR 406 MM (16") BUCKET)
14	U15995	1	CUTTING EDGE	FRONT, (FOR 305 MM (12") BUCKET)
15	U14436	1	SHANK	-
16	U14437	1	POINT	-
17	-	1	Part 27	(SUB U14436 ALONG WITH U14437) ( AU12534 NO LONGER AVAILABLE, ORDER INDIVIDUAL PARTS)
18	T105987	2	BUSHING	(USE WITH 914 MM (36") BUCKET) (SUB FOR U42736)
19	AU13415	1	PLATE	PIVOT, L.H. (USE WITH 914 MM (36") BUCKET)
21	28H2240	1	BUSHING	1-1/2" X 7"
22	AU13414	1	PLATE	PIVOT, R.H. (USE WITH 914 MM (36") BUCKET)
24	T38869	1	CUTTING EDGE	FRONT (FOR 914 MM (36") BUCKET) (USE WITH 914 MM (36") BUCKET)
25	-	1	Part 41	AT83702 NO LONGER AVAILABLE, (MARKED AT83704) (SUB FOR BU10614)
25	BU10618	1	BACKHOE BUCKET	-
26	T59452	4	SNAP RING	-
27	T59445	4	SNAP RING	-
28	U42751	1	POINT	-
29	U43792	1	Bucket Tooth Adapter	(SUB FOR (AR) U42750)
30	U40910	1	Back-Up Ring	-
31	-	1	Part 48	( AU41838 - NO LONGER AVAILABLE) (SUB T40910, U43792 AND U42751)
32	AT37725	1	BACKHOE BUCKET	914 MM (36") COMPLETE WITH BUSHINGS
33	U13953	1	CUTTING EDGE	L.H.
34	U13952	1	CUTTING EDGE	R.H.
10A	AU13550	1	PIN FASTENER	CONTROL LINK TO BUCKET (USE WITH 305 MM (12") AND 406 MM (16") BUCKET)
10A	AU13550	1	PIN FASTENER	CONTROL LINK TO BUCKET (USE WITH 305 MM (12") AND 406 MM (16") BUCKET)
10B	T59454	1	PIN FASTENER	(SUB AU13550)
12A	AU13551	1	PIN FASTENER	DIPPERSTICK TO BUCKET (USE WITH 305 MM (12") AND 406 MM (16") BUCKET)
12A	AU13551	1	PIN FASTENER	DIPPERSTICK TO BUCKET (USE WITH 305 MM (12") AND 406 MM (16") BUCKET)
12B	T59455	1	PIN FASTENER	(SUB AU13551)
20A	T125931	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
20A	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) (USE WITH 914 MM (36") BUCKET)
20A	AU42334	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931) (USE WITH 914 MM (36") BUCKET)
20B	T59451	1	PIN FASTENER	(SUB (2) U11649, (2) 11H221 AND T125931)
23A	T125926	1	PIN FASTENER	(DOES NOT INCLUDE WASHERS OR COTTER PINS)
23A	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) (USE WITH 914 MM (36") BUCKET)
23A	AU42333	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926) DIPPERSTICK TO BUCKET ASSEMBLY (USE WITH 914 MM (36") BUCKET
23B	T59450	1	PIN FASTENER	(SUB (2) U11650, (2) 11H221 AND T125926)

STANDARD BUCKETS (WITH STRAIGHT PIVOT PLATES) [02K03]
