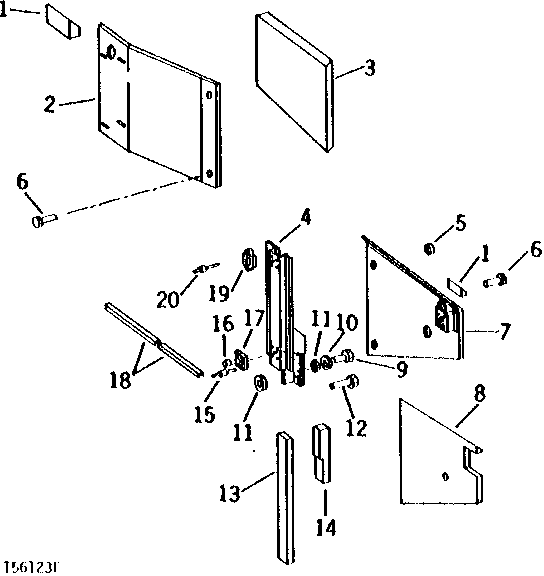

SHIELD, UPPER RIGHT-HAND WITH BAFFLES (EXPORT ONLY) (SERIAL NO. 245789- ) [02C04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	( T45368 USE IF AVAILABLE)
2	-	1	Part 2	RIGHT, (INCLUDES KEYS 1 AND 3) (WHEN AT53947 IS NO LONGER AVAILABLE,ORDER THE FOLLOWING IF AVAILABLE T45368, T56170 AND T56171)
2	-	1	Part 3	( T56170 USE IF AVAILABLE) (IF AVAILABLE ALSO ORDER T45368 AND T56171)
2	T135732	1	ISOLATOR	(SUB FOR T45368 AND T56171)
3	-	1	Part 5	( T56171 USE IF AVAILABLE)
4	-	1	Part 6	(INCLUDES KEYS 1, 14, 15, AND 20) (WHEN AT53948 IS NO LONGER AVAILABLE,ORDER THE FOLLOWING IF AVAILABLE AT53949, T45358 AND T56167)
4	-	1	Part 7	( AT53949 USE IF AVAILABLE) (ALSO ORDER THE FOLLOWING IF AVAILABLE T45358 AND T56167)
5	M2291T	4	PLUG	-
6	T22211	6	SCREW WITH WASHER	-
7	-	1	Part 10	(K) WITH ISOLATORS, ( AT53950 NO LONGER AVAILABLE) (SUB AT67529 IF AVAILABLE)
8	-	1	Part 11	( T56176 NO LONGER AVAILABLE) (SUB T70593 IF AVAILABLE)
8	T135732	1	ISOLATOR	(SUB FOR T70593)
9	19H2721	4	Cap Screw	1/4" X 1-1/2"
10	24H1908	5	Washer	17/64" X 1-3/4" X 0.095"
11	24H1288	12	Washer	9/32" X 1" X 1/16"
12	19H2102	1	Cap Screw	1/4" X 1-3/4"
13	-	1	Part 17	( T45358 USE IF AVAILABLE)
13	T135732	1	ISOLATOR	(SUB FOR T45358)
14	-	1	Part 19	( T56167 USE IF AVAILABLE)
15	AT44188	12	Rivet	-
16	28H1611	5	Washer	1/8" X .312"
17	AT44187	3	SUPPORT	-
18	-	1	Part 23	TOP EDGE, 711 MM (28") LONG (MAKE FROM T61798, 15M (50') BULK) (SUB FOR T45412)
19	-	4	Part 24	(SUB AT16695)
20	AT44195	8	Rivet	-
..	AT16695	1	KIT	FASTENER STUD RECEPTACLE AND RIVETS, (INCLUDES M259T AND (2) AT44195)

SHIELD, UPPER RIGHT-HAND WITH BAFFLES (EXPORT ONLY) (SERIAL NO. 245789- ) [02C04]
