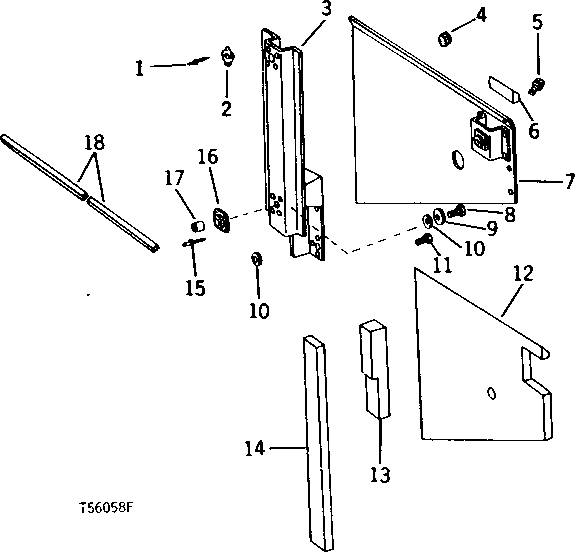

SHIELD, UPPER RIGHT-HAND WITH BAFFLES (EXPORT ONLY) (SERIAL NO. -245788) [02C03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT44195	8	Rivet	-
2	-	4	Part 2	(SUB AT16695)
3	AT53955	1	SUPPORT	(INCLUDES KEYS 1, 13, 14, AND 15)
4	M2291T	4	PLUG	-
5	T22211	6	SCREW WITH WASHER	-
6	-	1	Part 6	( T45368 USE IF AVAILABLE)
6	T135732	1	ISOLATOR	(SUB FOR T45368)
7	AT44198	1	SHIELD	WITH FOAM PAD, (SUB AT53950, AT53955 AND (6) T22211 AND THE FOLLOWING IF AVAILABLE T46368, T56170 AND T56171
7	T135732	1	ISOLATOR	(SUB FOR T45368 AND T56171)
8	19H2721	4	Cap Screw	1/4" X 1-1/2"
9	24H1908	5	Washer	17/64" X 1-3/4" X 0.095"
10	24H1288	12	Washer	9/32" X 1" X 1/16"
11	19H2102	1	Cap Screw	1/4" X 1-3/4"
12	-	1	Part 14	( T45367 AND T56176 NO LONGER AVAILABLE) (SUB T70593 IF AVAILABLE)
12	T135732	1	ISOLATOR	(SUB FOR T70593)
13	-	1	Part 16	( T45359 USE IF AVAILABLE)
14	-	1	Part 17	( T45358 USE IF AVAILABLE)
14	T135732	1	ISOLATOR	(SUB FOR T45358)
15	AT44188	12	Rivet	-
16	AT44187	3	SUPPORT	-
17	28H1611	5	Washer	(1/8" X .312")
18	-	1	Part 22	TOP EDGE, 711 MM (28") LONG (MAKE FROM T61798, 15M (50') BULK) (SUB FOR T45412)
..	AT16695	1	KIT	FASTENER STUD RECEPTACLE AND RIVETS, (INCLUDES M259T AND (2) AT44195)

SHIELD, UPPER RIGHT-HAND WITH BAFFLES (EXPORT ONLY) (SERIAL NO. -245788) [02C03]

Нет текстового описания
