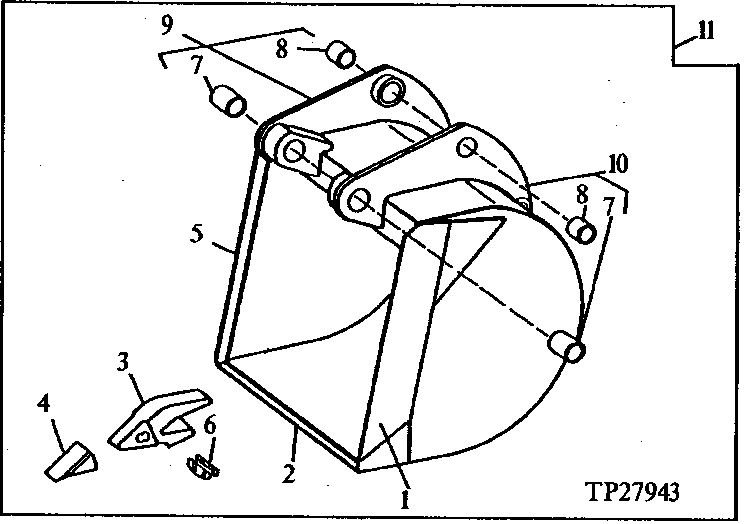

REPLACEMENT STANDARD BACKHOE BUCKETS 457 MM, 610 MM, 762 MM AND 914 MM (18, 24, 30 AND 36") [02K07]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T140019	1	DURA-MAX TM CUTTING EDGE	SIDE, R.H., FOR 914 MM (36") BUCKET, (SUB FOR T119175)
1	T139706	1	CUTTING EDGE	SIDE, R.H., FOR 457 MM (18"), 610MM (24"), AND 762 MM (30") BUCKETS, (SUB FOR T119088)
2	T147549	1	CUTTING EDGE	(USED WITH 18" AND 24") FRONT, CUT TO LENGTH, (SUB FOR T119090, T119087, T119122 AND T113764) (SUB FOR T140092, THIS APPLICATION)
2	T161319	1	Dura-Max Cutting Edge	(USED WITH 30" AND 36") FRONT, CUT TO LENGTH, (SUB FOR T119090, T119087, T119122 AND T113764 OR T147440) (SUB FOR T140092, THIS APPLICATION)
3	U43792	1	Bucket Tooth Adapter	(3 USED WITH 457 MM (18"), 4 USED WITH 610 MM (24"), 5 USED WITH (30"), AND 6 USED WITH 914 MM (36") BUCKET) (SUB FOR U42750)
4	TF23	1	TOOTH	(3 USED WITH 457 MM (38"), 4 USED WITH 610 MM (24"), 5 USED WITH (30"), AND 6 USED WITH 914 MM (36") BUCKET) (SUB FOR T230SP, THIS APPLICATION)
5	T139707	1	CUTTING EDGE	SIDE, L.H., FOR 457 MM (18"), 610 MM (24") AND 762 MM (30") BUCKETS, (SUB FOR T119089)
5	T140020	1	DURA-MAX TM CUTTING EDGE	SIDE, L.H., FOR 914 MM (36") BUCKET, (SUB FOR T119176)
6	TF23P	1	Pin	(SUB FOR T40910, THIS APPLICATION) (3 USED WITH 457 MM (18"), 4 USED WITH 610 MM (24"), 5 USED WITH (30") BUCKET AND 6 USED WITH 914 MM (36") BUCKET)
7	T113755	2	BUSHING	-
8	T113756	4	BUSHING	-
9	-	1	Part 12	L.H. ( AT114427 - NO LONGER AVAILABLE)
10	-	1	Part 13	R.H. ( AT114425 - NO LONGER AVAILABLE)
11	-	1	Part 14	(18") ( AT158369 USE IF AVAILABLE) (SUB FOR AT114260 AND AT149956) (SUB AT181720, AT180471, AT180472, (2) T29342 AND (2) 19M8935)
11	-	1	Part 15	(24") ( AT163744 USE IF AVAILABLE) (SUB FOR AT114257, AT149954 AND AT156374) (SUB AT181721, AT180471, AT180472, (2) T29342 AND (2) 19M8935)
11	-	1	Part 16	762 MM (30") ( AT158376 USE IF AVAILABLE) (SUB FOR AT114262 AND AT149958)
11	-	1	Part 17	914 MM (36") ( AT150140 USE IF AVAILABLE) (SUB FOR AT114256)

REPLACEMENT STANDARD BACKHOE BUCKETS 457 MM, 610 MM, 762 MM AND 914 MM (18, 24, 30 AND 36") [02K07]

Нет текстового описания
