Открытый узел

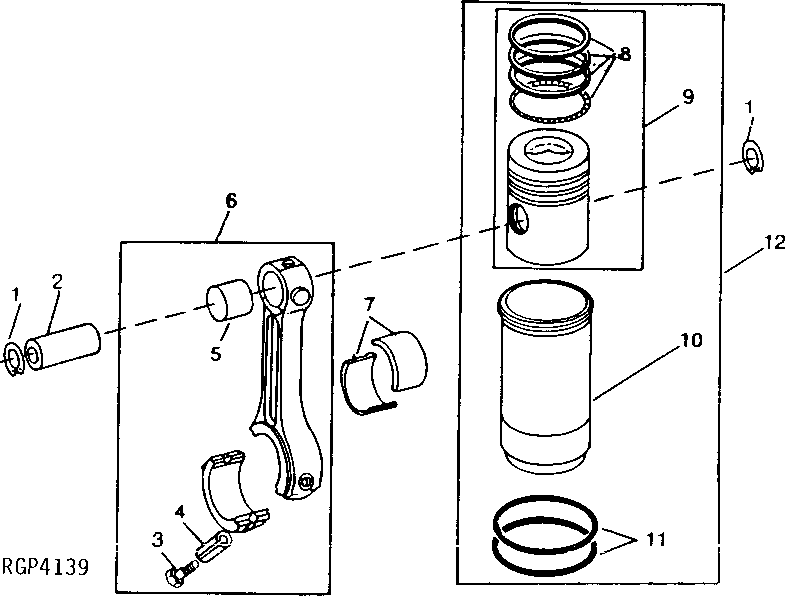

PISTONS, RINGS, LINERS AND CONNECTING RODS (DIESEL) [01B16]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26093	8	SNAP RING	-
2	R44161	4	PISTON PIN	STD, (SUB FOR R26092)
2	R44162	4	PISTON PIN	0.08MM (.003") OS (YELLOW) (SUB FOR R28972)
2	R44163	4	PISTON PIN	0.13MM (.005") OS (RED) (SUB FOR R28973)
3	R66452	8	Cap Screw	(SUB FOR R26325 OR R53290)
4	R53292	8	Sleeve	-
5	R30939	4	BUSHING	-
6	AR86981	4	CONNECTING ROD	(MARKED R26047, R53285 OR R58880 OR R66923) (SUB FOR AR26328, AR59419 OR AR70910)
6	SE500081	4	CONNECTING ROD REMAN	(REMANUFACTURED)
7	AR45723	4	BEARING	STD (PKG (2) R26087 OR R44378) (SUB FOR AR27628)
7	AR46395	4	BEARING	0.05MM (.002") US (PKG (2) R28226 OR R44925) (SUB FOR AR27629)
7	AR46396	4	BEARING	0.25MM (.010") US (PKG (2) R44926)
7	AR46397	4	BEARING	0.51MM (.020") US (PKG (2) R28228 OR R44927) (SUB FOR AR27640)
7	AR46398	4	BEARING	0.76MM (.030") US (PKG (2) R28230 OR R44928) (SUB FOR AR27642)
8	AR27852	4	PISTON RING KIT	(USE WITH PISTON R26091) (5 RING)
8	AR55630	4	PISTON RING KIT	(3 RING) (USE WITH AR46265, AR51799, RE23172, AR48743 OR RE40566) (SUB FOR AR41563 AND AR54732)
8	AR40145	4	PISTON RING KIT	(4 RING) (USE WITH R32073) (SUB FOR AR33995)
8	AR39860	4	PISTON RING KIT	(USE WITH PISTON R39927) (4 RING)
9	AR63284	4	PISTON	(NLA) (MARKED AR41564, AR48743 OR AR51799) (SUB FOR AR41562, AR48742 OR AR51800) (SUB RE23165)
10	R32050	4	CYLINDER LINER	108MM (4-1/4") BORE, (USE WITH R26160) (SUB FOR AR32195) (SUB RE23173) (ALSO ORDER AR40155)
11	AR40155	4	O-RING KIT	(USE WITH R26160, R32020, R72127 OR R40850)
11	AR70645	4	O-RING KIT	(USE WITH R40910, R40700, R40920, R46350, R46430, R48430, R50610, R49540) (SUB FOR AR48687)
12	AR68650	4	KIT	(SUB RE23165) (MARKED AR51799)
12	RE23173	4	KIT	(MARKED RE23172 OR RE40566) (USE WITH R40850, R26160 AND R32020) (SUB FOR AR49052)
12	RE23170	4	KIT	(MARKED RE23172 OR RE40566) (USE WITH R40910, R46350 OR R46430) (SUB FOR AR40615, R41562, AR68650, AR83122 AND AR84048) (ALSO ORDER AR70645)
12	RE23165	4	KIT	(BLOCK MARKED R40700, R48430, R50610, R47520 OR R72127) (SUB FOR AR68650 OR AR63284) (MARKED RE40563, AR46265, AR51799, AR48743, RE23168 OR RE40564)
..	AR31744	1	SHIM	0.10 MM (.004") (USE WITH R26160)
..	AR31745	1	SHIM	0.76 MM (.030") (USE WITH R26160)
..	AR39521	1	SHIM	0.38 MM (.015") (USE WITH R26160)

PISTONS, RINGS, LINERS AND CONNECTING RODS (DIESEL) [01B16]

Нет текстового описания
