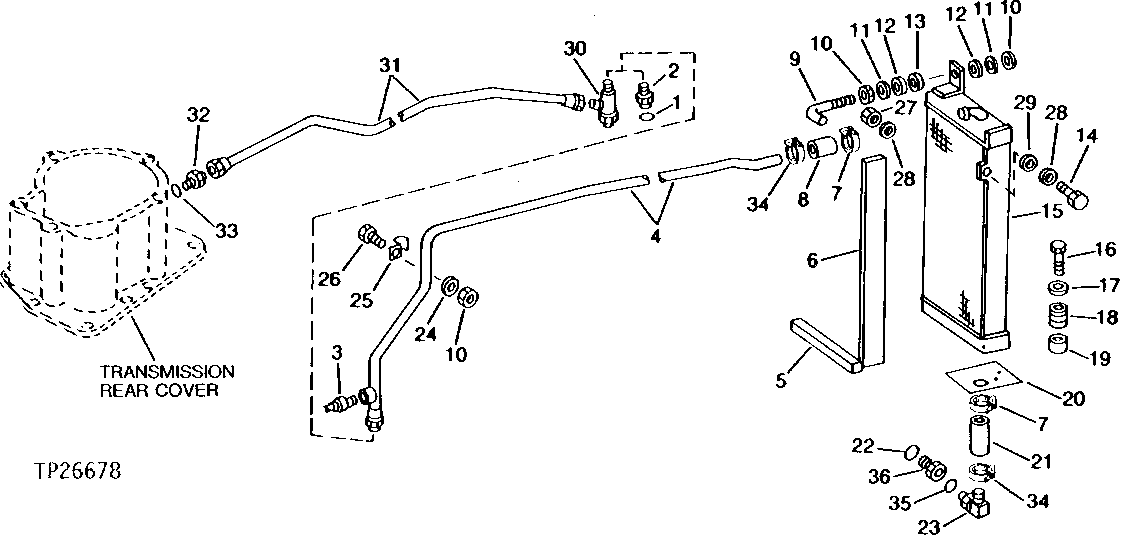

OIL COOLER AND OIL LINE (POWER SHIFT) [01D07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U12547	1	O-Ring	(SUB FOR F3171R)
2	R27267	1	Fitting	(WITHOUT PARKING BRAKE)
3	AR52607	1	PRESSURE SWITCH	(TRANSMISSION LUBE PRESSURE)
4	AR42152	1	OIL LINE	(WITHOUT PARKING BRAKE)
4	AT50067	1	LINE	(WITH PARKING BRAKE)
5	-	2	Part 6	(MAKE FROM R30937) (URETHANE FOAM STRIP)
6	R34688	2	WEATHERSTRIP	-
7	AR21839	2	Clamp	-
8	-	1	Part 9	19 MM X 114 MM (3/4" X 4-1/2") (MAKE FROM T78497) (SUB FOR T35692 AND T21371)
9	-	1	Part 10	( R42116 USE IF AVAILABLE)
10	14H812	3	NUT	3/8"
11	R27441	2	Washer	-
12	A4666R	2	WASHER	-
13	28H1884	1	Spacer	3/8" X 1/2", (SUB FOR F2257R)
14	19H2676	1	Cap Screw	3/8" X 1"
15	AR44000	1	OIL COOLER	(SUB AT35811)
15	AT35811	1	OIL COOLER	-
16	19H2549	1	Cap Screw	3/8" X 1-7/8"
17	24H1309	1	Washer	13/32" X 1-1/16" X 0.120"
18	F2411R	1	Spring	-
19	R26417	1	Spacer	-
20	-	1	Part 22	(MAKE FROM R30597 ROLL OF ANTI-SQUEAK WEBBING)
21	-	1	Part 23	19 MM X 86 MM (3/4" X 3-3/8") (MAKE FROM T78497) (SUB FOR T35694 AND T21371)
22	U13639	1	O-Ring	-
23	AR32708	1	ELBOW FITTING	(SUB AT21574, T27517 AND U12547)
23	AT21574	1	Fitting	-
24	12H304	1	Lock Washer	3/8"
25	R41465	1	Clamp	-
26	19H1648	1	Cap Screw	3/8" X 3/4"
27	C744R	1	WASHER	(SUB FOR 14H1076, THIS APPLICATION)
28	24H1302	2	Washer	13/32" X 11/16" X 0.035"
29	T22381	1	Washer	-
30	AT50063	1	TEE FITTING	WITH O-RING (WITH PARKING BRAKE)
31	AT50064	1	OIL LINE	(WITH PARKING BRAKE)
32	R27272	1	Fitting	(WITH PARKING BRAKE)
33	R26286	1	O-Ring	(WITH PARKING BRAKE)
34	RE65978	2	Clamp	(SUB FOR AT18904 OR RE62322)
35	U12547	1	O-Ring	-
36	T27517	1	Adapter Fitting	-

OIL COOLER AND OIL LINE (POWER SHIFT) [01D07]

Нет текстового описания
