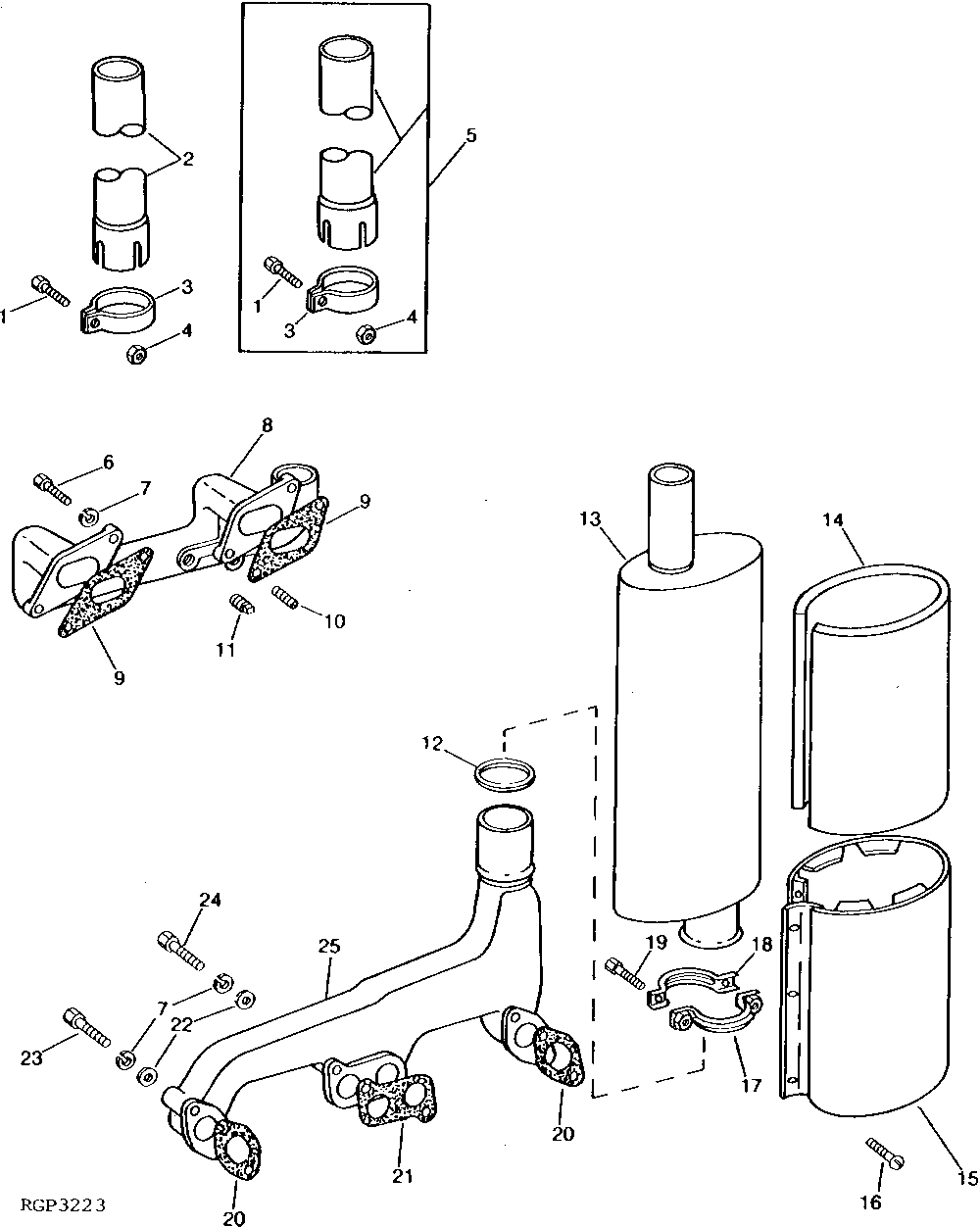

MANIFOLDS, MUFFLER AND MUFFLER EXTENSION (DIESEL) [01C16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1732	1	Cap Screw	3/8" X 1-1/4"
2	T38965	1	MUFFLER EXTENSION	(EXPORT ONLY)
3	R66684	1	CLAMP	(ALSO ORDER 19H1732, 14H812) (SUB FOR AR45917)
4	E55662	1	Flange Nut	-
5	AR45916	1	MUFFLER EXTENSION	-
6	19H1732	4	Cap Screw	3/8" X 1-1/4"
7	12H304	10	Lock Washer	3/8"
8	AR45304	1	INTAKE MANIFOLD	(MARKED R33217 OR R44084)
9	R26297	2	GASKET	-
10	15H255	1	Pipe Plug	3/8"
11	15H604	1	Pipe Plug	1/4"
12	R227500	1	GASKET	(SUB FOR R31142)
13	AR86595	1	MUFFLER	(SUB FOR AR41171)
14	T45139	1	BARRIER	(EXPORT ONLY)
15	AT43970	1	SHIELD	(EXPORT ONLY) (SUB FOR AR43971)
16	21H1199	3	SCREW	0.190" X 1-3/4"
17	AR46323	1	CLAMP	-
18	R32235	1	CLAMP	-
19	19H1849	2	Cap Screw	5/16" X 1-1/4"
20	R83021	2	Gasket	(SUB FOR R44374)
21	R83020	1	GASKET	(SUB FOR R44373)
22	24M7096	6	Washer	10.500 X 18 X 1.600 MM
23	19H1765	3	Cap Screw	3/8" X 1-3/4"
24	19H1944	3	Cap Screw	3/8" X 2-3/4"
25	R27406	1	EXHAUST MANIFOLD	-

MANIFOLDS, MUFFLER AND MUFFLER EXTENSION (DIESEL) [01C16]
