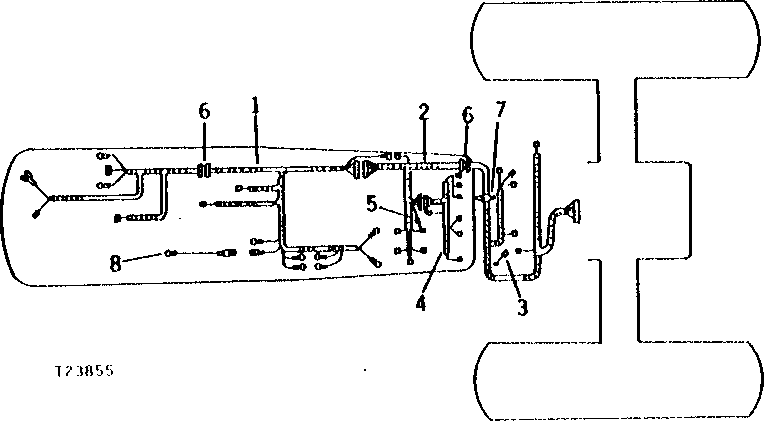

MAIN WIRING HARNESS [02E03]

MAIN WIRING HARNESS [02E03]

MAIN WIRING HARNESS [02E03]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

MAIN WIRING HARNESS [02E03]

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	1	Tie Band	-
1	R45211	3	Clamp	-
1	R27583	1	Grommet	-
1	AT34941	1	WIRING HARNESS	(INCLUDES CONNECTIONS FOR HORN, FUEL GAUGE SENDER, VACUUM INDICATOR SWITCH, STARTING CIRCUIT RELAY, FUEL SHUTOFF, OIL PRESSURE SWITCH HOUR METER)
2	AT33431	1	WIRING HARNESS	(INCLUDES CONNECTIONS FOR CIRCUIT BREAKERS, SIDE LAMPS, HORN SWITCH, LIGHT SWITCH, KEY SWITCH FLASHER, CIGAR LIGHTER, STARTER SAFETY SWITCH, HYDRAULIC OIL FILTER, BYPASS SWITCH, AIR FILTER LAMP RELAY AND FUSIBLE LINK LEAD)
2	AT57258	1	WIRING HARNESS	(INCLUDES CONNECTIONS FOR CIRCUIT BREAKERS, SIDE LAMPS, HORN SWITCH, LIGHT SWITCH, KEY SWITCH FLASHER, CIGAR LIGHTER, STARTER SAFETY SWITCH, HYDRAULIC OIL FILTER, BYPASS SWITCH, AIR FILTER LAMP RELAY AND FUSIBLE LEAD) (SUB AT67087)
2	AT67087	1	WIRING HARNESS	-
2	AR48594	1	Flasher	-
2	-	1	Part 9	FOR NO FLASHER ( AR41694, NO LONGER AVAILABLE)
3	R45211	1	Clamp	-
3	AR47858	1	WIRING HARNESS	-
4	AR47856	1	WIRING HARNESS	(INCLUDES CONNECTIONS FOR FUEL GAUGE, TACHOMETER LAMP, OIL, ALTERNATOR, AND AIR CLEANER RESTRICTION INDICATOR LAMPS) (COLLAR SHIFT)
4	RE61109	1	WIRING HARNESS	(SUB FOR AR47857) (INCLUDES CONNECTIONS FOR FUEL GAUGE, TACHOMETER LAMP, OIL, ALTERNATOR, AND AIR CLEANER RESTRICTION INDICATOR LAMPS) (POWER SHIFT)
4	-	1	Part 14	152 MM (6") (MAKE FROM R32007, R32018, R32024, AND R32027 FROM AR84006 WIRING REPAIR KIT)
5	AR47547	1	WIRING LEAD	WITH FUSE
5	AR47548	1	Fuse	25 AMP
5	R45231	1	LABEL	-
6	R41439	5	Grommet	-
7	R27457	5	TIE BAND	-
8	-	1	Part 20	190 MM (7-1/2") (MAKE FROM R32007, R32018, R32025, AND R32027 FROM AR84006 WIRING REPAIR KIT)
