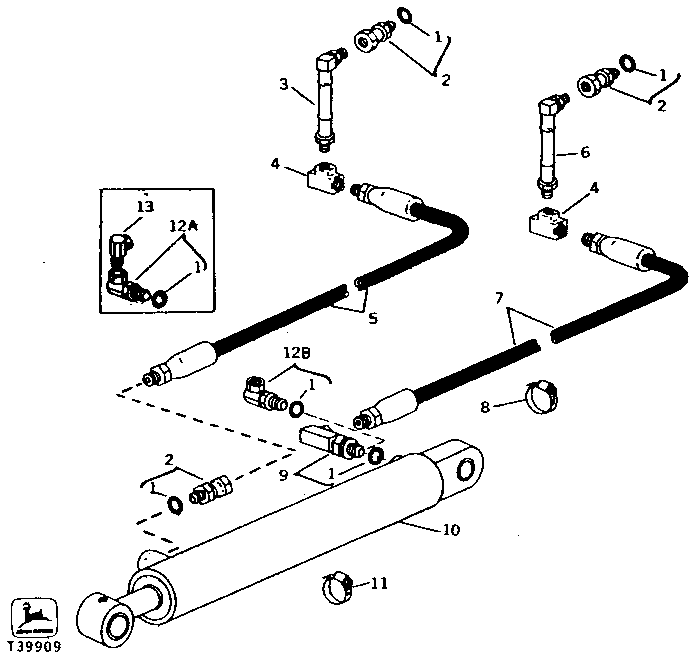

LOADER LEFT HAND BOOM CYLINDER CIRCUIT [02I02]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26906	4	O-Ring	-
2	AU11753	3	UNION FITTING	-
3	AU42518	1	HYDRAULIC HOSE	-
3	AU11507	1	HYDRAULIC HOSE - FABRICATE	-
4	B28097	2	TEE FITTING	-
5	AT33075	1	HYDRAULIC HOSE - FABRICATE	-
5	TY3014	1	HYDRAULIC HOSE	(WHEN NOT EQUIPPED WITH NOISE-REDUCTION PACKAGE) (SUB FOR AU10853)
5	AT33188	1	HYDRAULIC HOSE - FABRICATE	(WHEN EQUIPPED WITH NOISE PACKAGE)
6	AU42519	1	HYDRAULIC HOSE	-
6	AU11507	1	HYDRAULIC HOSE - FABRICATE	-
7	AT33188	1	HYDRAULIC HOSE - FABRICATE	-
7	AU40262	1	HYDRAULIC HOSE - FABRICATE	(WHEN EQUIPPED WITH NOISE-REDUCTION PACKAGE)
7	AU40261	1	HYDRAULIC HOSE - FABRICATE	(WHEN NOT EQUIPPED WITH NOISE-REDUCTION PACKAGE)
8	AR21999	1	Hose Clamp	-
9	AU11751	1	ELBOW FITTING	90°, WITH O-RING, (SUB FOR AT33027)
10	AT33026	1	HYDRAULIC CYLINDER	-
11	AR21839	1	Clamp	(SUB FOR AR21842, THIS APPLICATION)
13	AT34204	1	Union Fitting	90°, WITH O-RING (EXPORT ONLY)
12A	AU11752	1	Fitting	90°, WITH O-RING (EXPORT ONLY)
12B	AT44806	1	ELBOW FITTING	90°, WITH O-RING (EXPORT ONLY)

LOADER LEFT HAND BOOM CYLINDER CIRCUIT [02I02]

Нет текстового описания
