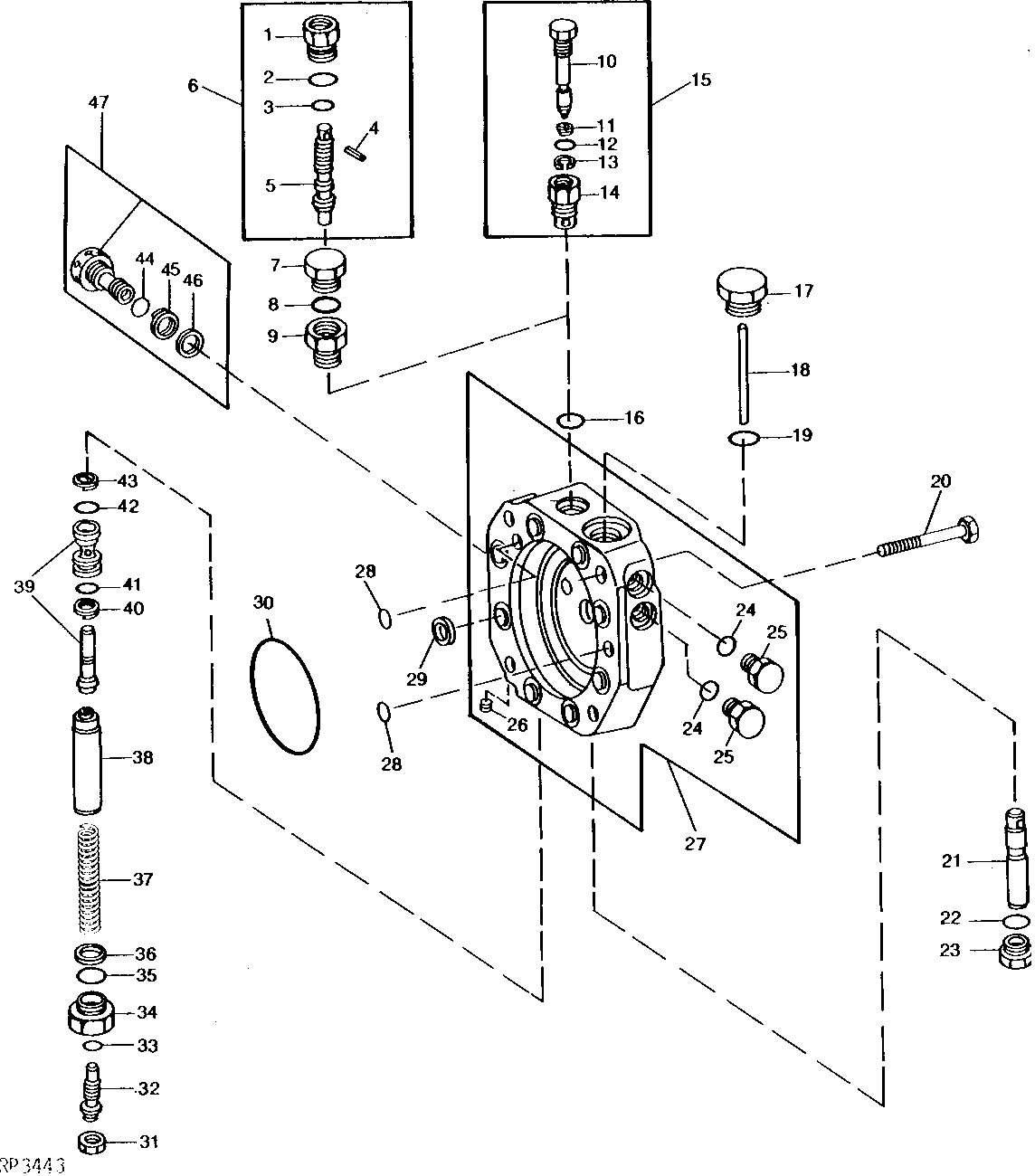

HYDRAULIC PUMP STROKE CONTROL VALVE (SERIALIZED REPLACEMENT PUMP) 65 CM3 (4 IN.3) (PUMP SERIAL NO. 386723- ) [01I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27475	1	FITTING	-
2	R26448	1	O-Ring	-
3	A4365R	1	O-Ring	-
4	34H254	1	Spring Pin	1/8" X 1-1/2"
5	R75879	1	Screw	-
6	AR96625	1	Pump Repair Kit	(A) (MANUAL DESTROKE)
7	R27218	1	Fitting Plug	(LESS MANUAL DESTROKE)
8	R26448	1	O-Ring	(LESS MANUAL DESTROKE)
9	R70617	1	Pipe Plug	-
10	R79266	1	Screw	-
11	R36358	1	Back-Up Ring	-
12	R34802	1	O-Ring	-
13	R79268	1	Snap Ring	-
14	R79267	1	Plug	-
15	RE13271	1	Screw	(A) (MANUAL DESTROKE)
16	R26906	1	O-Ring	-
17	R75642	1	Drain Plug	-
18	R75564	1	Pin	-
19	R56751	1	O-Ring	-
20	19H3520	4	Cap Screw	1/2" X 3-1/4"
21	R74225	1	SLEEVE	-
22	R26375	1	O-Ring	-
23	R73736	1	Fitting Plug	-
24	R26448	2	O-Ring	-
25	R75376	2	Drain Plug	-
26	15H560	1	Pipe Plug	1/16"
27	AR101632	1	Housing	(MARKED R77712)
28	R56755	2	WASHER	-
29	R107239	8	Packing	(SUB FOR R69279)
30	R56757	1	O-Ring	-
31	14H1021	1	NUT	7/16"
32	AR52254	1	SET SCREW	-
33	R28782	1	O-Ring	-
34	R28781	1	FITTING	-
35	U12547	1	O-Ring	(SUB FOR F3171R)
36	R42260	1	WASHER	-
37	R31781	1	Spring	-
38	R71321	1	Guide	-
39	RE10712	1	Control Valve	-
40	R41057	1	BACK-UP RING	-
41	R27166	1	O-Ring	-
42	R27564	1	O-Ring	-
43	R75938	1	Thrust Washer	-
44	R26375	1	O-Ring	-
45	T40308	1	O-Ring	-
46	T57374	1	Back-Up Ring	-
47	AR90378	1	PLUG	(LESS ELECTRIC DESTROKE SOLENOID)

HYDRAULIC PUMP STROKE CONTROL VALVE (SERIALIZED REPLACEMENT PUMP) 65 CM3 (4 IN.3) (PUMP SERIAL NO. 386723- ) [01I09]
