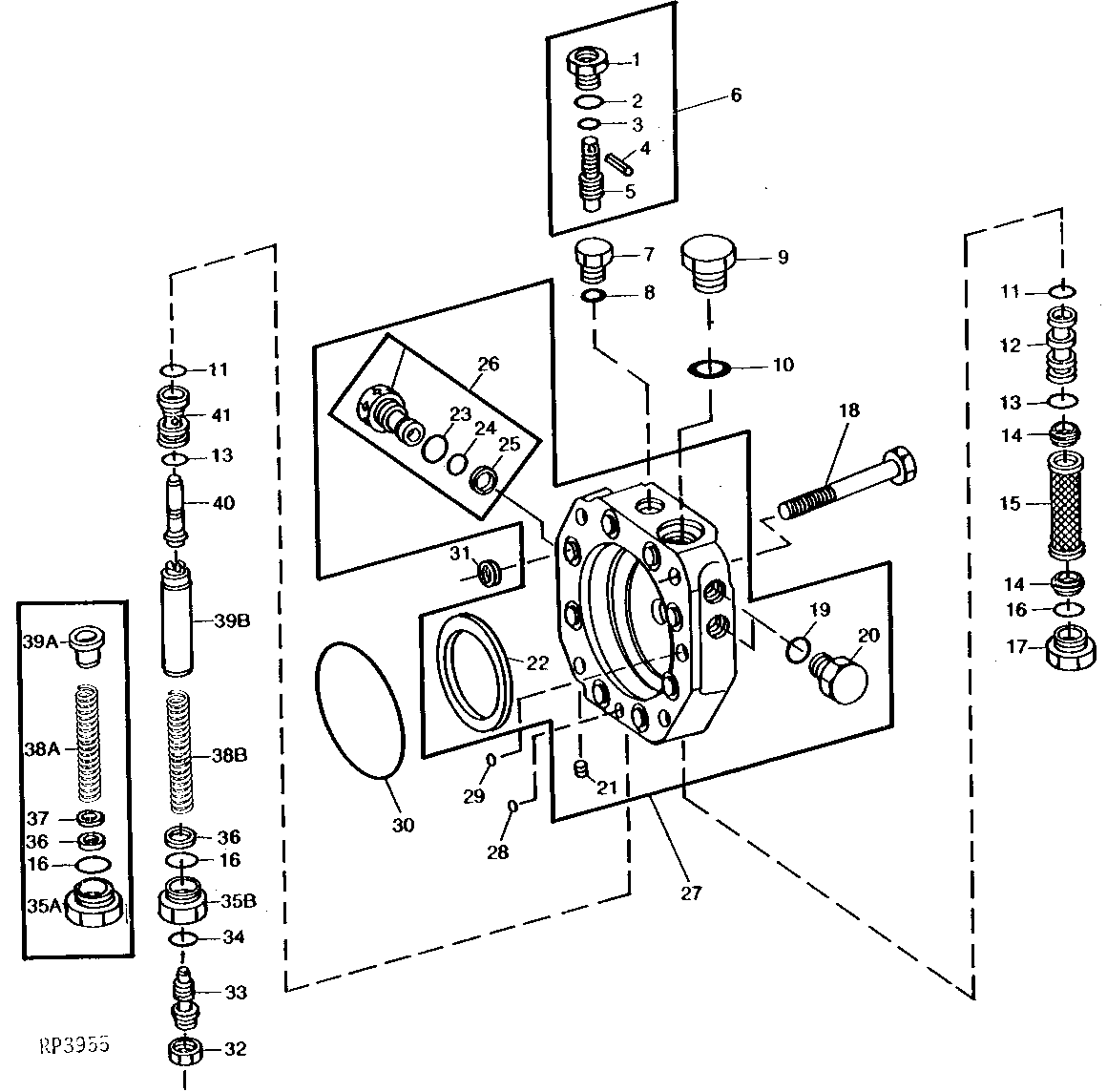

HYDRAULIC PUMP STROKE CONTROL VALVE (NON-SERIALIZED) 66 CM3 (4 IN.3) (SERIAL NO. -386722) [01I01]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27475	1	FITTING	-
2	R26448	1	O-Ring	-
3	A4365R	1	O-Ring	-
4	34H254	1	Spring Pin	1/8" X 1-1/2"
5	R27171	1	SCREW	-
6	AR33249	1	SCREW	(MANUAL DESTROKE)
7	R27218	1	Fitting Plug	(LESS MANUAL DESTROKE)
8	R26448	1	O-Ring	(LESS MANUAL DESTROKE)
9	R27474	1	Drain Plug	-
10	R26906	1	O-Ring	-
11	R27564	2	O-Ring	-
12	R70335	1	SLEEVE	(SUB FOR R53693)
13	R27166	2	O-Ring	-
14	R27174	2	PACKING	-
15	R27173	1	FILTER ELEMENT	-
16	U12547	2	O-Ring	(SUB FOR (2) F3171R)
17	R27175	1	Drain Plug	-
18	19H3520	4	Cap Screw	1/2" X 3-1/4"
19	R26287	2	O-Ring	-
20	R27216	2	DRAIN PLUG	-
21	15H560	1	Pipe Plug	1/16"
22	R49072	1	WASHER	(NOT USED IN ALL APPLICATIONS)
23	R26375	1	O-Ring	-
24	T40308	1	O-Ring	-
25	T57374	1	Back-Up Ring	-
26	AR90378	1	PLUG	(SUB FOR AR52495)
27	AR38714	1	HOUSING	(MARKED R49071) (SUB FOR AR52494 OR RE13611)
28	R56755	1	WASHER	(SUB FOR A4847R)
29	R63548	1	O-Ring	(SUB FOR A3917R OR R56756)
30	R56757	1	O-Ring	(SUB FOR R26621)
31	R107239	8	Packing	(SUB FOR R56754 OR R69279)
32	14H1021	1	NUT	7/16"
33	AR52254	1	SET SCREW	-
34	R28782	1	O-Ring	-
36	R42260	1	WASHER	-
37	R48808	1	Washer	(SUB R28781, R31781 AND R71321)
40	R70559	1	CONTROL VALVE	(SUB RE10712, R27166 AND R41057) (SUB FOR R27472 OR R65194)
41	R69262	1	SLEEVE	(SUB RE10712, R27166 AND R41057) (SUB FOR R27471, R58499 OR R65192)
..	AR99845	1	HYDRAULIC PUMP	(SUB FOR AR52952) (SUB AR101288 AND P47908)
35A	R55907	1	FITTING	(SUB R28781, R31781 AND R71321)
35B	R28781	1	FITTING	-
38A	R55908	1	SPRING	(SUB R28781, R31781 AND R71321)
38B	R31781	1	Spring	-
39A	R71563	1	GUIDE	(SUB R28781, R31781 AND R71321) (SUB FOR R55909)
39B	R71321	1	Guide	(SUB FOR R32344)

HYDRAULIC PUMP STROKE CONTROL VALVE (NON-SERIALIZED) 66 CM3 (4 IN.3) (SERIAL NO. -386722) [01I01]
