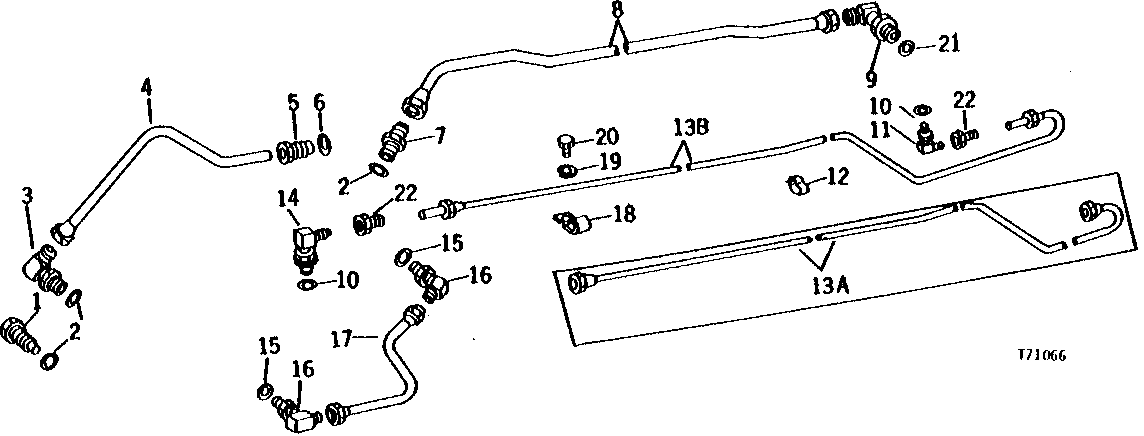

HYDRAULIC OIL RETURN PIPES (POWER SHIFT) [01J04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33610	1	FITTING	-
2	U12547	3	O-Ring	(SUB FOR (3) F3171R)
3	AT32331	1	Elbow Fitting	(SUB FOR AR26723) 90° ADJUSTABLE
4	AR39561	1	OIL LINE	-
5	R33610	1	FITTING	-
6	B2762R	1	O-Ring	-
7	T34433	1	ADAPTER FITTING	-
8	AT33438	1	LINE	-
9	AT33436	1	ELBOW FITTING	90° ADJUSTABLE
10	R26287	2	O-Ring	-
11	AT32336	1	ELBOW FITTING	90° ADJUSTABLE, (SUB FOR AR26746 AND AT32335)
12	R44302	2	Tie Band	(SUB FOR R21551 AND R34749, THIS APPLICATION)
14	AT32335	1	ELBOW FITTING	90° ADJUSTABLE, (SUB FOR AR26746)
15	R26906	2	O-Ring	-
16	AR35712	2	ELBOW FITTING	90° ADJUSTABLE
17	AR44260	1	OIL LINE	-
18	T29527	2	Clamp	(SUB FOR T14050)
19	12H303	2	Lock Washer	5/16"
20	19H2020	2	Cap Screw	5/16" X 1/2"
21	R29936	1	O-Ring	-
22	R64170	2	ADAPTER FITTING	-
13A	AR45249	1	OIL LINE	(SUB FOR AR45250, AT66103 AND (2) R64170, THIS APPLICATION)
13B	AT66103	1	OIL LINE	(SUB FOR AR79711, THIS APPLICATION)

HYDRAULIC OIL RETURN PIPES (POWER SHIFT) [01J04]
