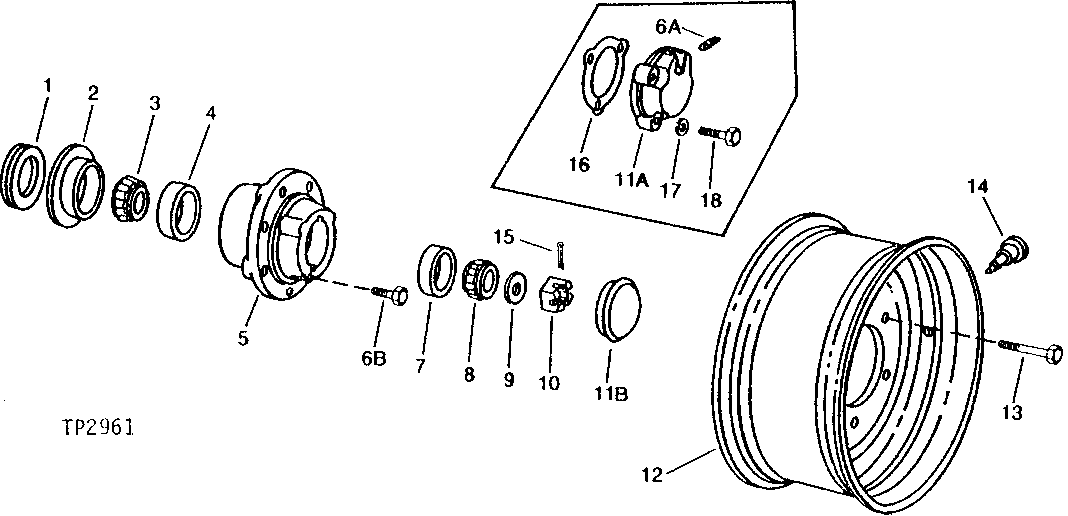

FRONT WHEELS (EIGHT HOLE HUB AND RIM) (SERIAL NO. 202408- ) [01J10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR27806	1	Seal	-
2	R28574	1	Seal	-
3	JD8131	1	Bearing Cone	WITH ROLLERS, INNER
4	JD7439	1	Bearing Cup	INNER
5	T41358	1	HUB	(SUB R63556, DT2127W AND 22H841)
5	R63556	1	Hub	-
7	JD7266	1	Bearing Cup	OUTER
8	JD10190	1	Bearing Cone	WITH ROLLERS, OUTER, (SUB FOR JD8981)
9	R28575	1	Washer	-
10	14M7519	1	Nut	M24, (USE WITH AT76138)
10	14H920	1	Nut	1", (USE WITH AR45807 AND AT46780)
12	AT310291	1	Wheel	(FOR 11 L X 16, 10-PLY TIRE) (USE WITH (8) JD27) (SUB FOR JD3216)
12	-	1	Part 17	(FOR 14.5 L X 75 X 16.1, 10-PLY TIRE) ( AT63452 NO LONGER AVAILABLE) (USE WITH (8) JD27) (SUB AT187347) (ALSO ORDER (8) 19H3418) (SUB FOR JD3232 AND AR90898) (DO NOT USE JD3221, THIS APPLICATION)
12	AT187347	1	WHEEL	(FOR 14.5 L X 75 X 16.1, 10-PLY TIRE) (USE WITH (8) 19H3418) (SUB FOR AT63452)
13	JD27	8	Screw	-
13	19H3418	8	Screw	5/8" X 1-1/2"
14	AN132749	1	Tire Valve Stem	(TUBELESS) (SUB FOR AT37037)
15	11M7030	1	Cotter Pin	5 X 40 MM
16	A1556R	1	GASKET	-
17	24H1136	3	Washer	11/32" X 11/16" X 0.065"
18	19H2915	3	CAP SCREW	5/16" X 1-1/4"
6A	15H638	1	Pipe Plug	1/8"
6B	22H841	1	Set Screw	1/4" X 1/4"
11A	A1555R	1	CAP	-
11B	DT2127W	1	Cap	-

FRONT WHEELS (EIGHT HOLE HUB AND RIM) (SERIAL NO. 202408- ) [01J10]
