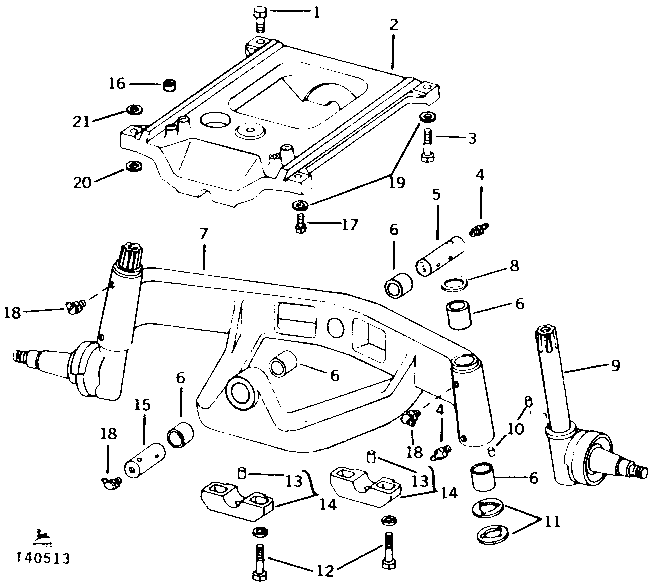

FRONT AXLE AND PIVOT BRACKET (SERIAL NO. -238502) [01J13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1347	1	CAP SCREW	3/4" X 1-5/8"
2	AR41238	1	BRACKET	WITH PIVOT PIN, (MARKED R41560) (SUB AT35224)
2	-	1	Part 3	WITH PIVOT PIN, (USE AT35224 UNTIL EXHAUSTED) (MARKED T36252)
3	19H2641	2	Cap Screw	(ALSO ORDER T497T) HS, SAE 8, 5/8" X 3-1/4"
4	JD7759	3	Lubrication Fitting	STRAIGHT, 1/8"
5	R28469	1	PIN FASTENER	FRONT
6	R52188	7	Bushing	(SUB FOR R28471)
7	AR41734	1	FRONT AXLE	WITH BUSHING, (MARKED R41741)
8	R31251	2	Washer	-
9	AR45807	2	KNUCKLE	WITH SPINDLE DUST EXCLUDER, WASHER AND NUT
10	34H308	4	Spring Pin	1/4" X 1/2"
11	R30398	4	Washer	-
12	19H1707	4	CAP SCREW	3/4" X 2-3/4"
12	12H236	4	Lock Washer	3/4"
13	R726R	2	Dowel Pin	-
14	AR28453	2	CLAMP	WITH DOWEL PIN
15	R28470	1	PIN FASTENER	REAR
16	T26929	4	Bushing	(SUB FOR T15089)
17	19H3107	2	Cap Screw	5/8" X 2-3/4", (ALSO ORDER T497T) (SUB FOR R39773)
17	19H2726	2	Cap Screw	HS, SAE 8, 5/8" X 4" (EXPORT ONLY)
18	JD7781	3	Lubrication Fitting	1/8" X 90°
19	T497T	4	WASHER	-
20	24H1366	2	Washer	21/32" X 1-1/8" X 0.036", 21/32" X 1-1/8" X 0.036" (EXPORT ONLY)
21	14H1039	2	Nut	5/8", (EXPORT ONLY)

FRONT AXLE AND PIVOT BRACKET (SERIAL NO. -238502) [01J13]
