Открытый узел

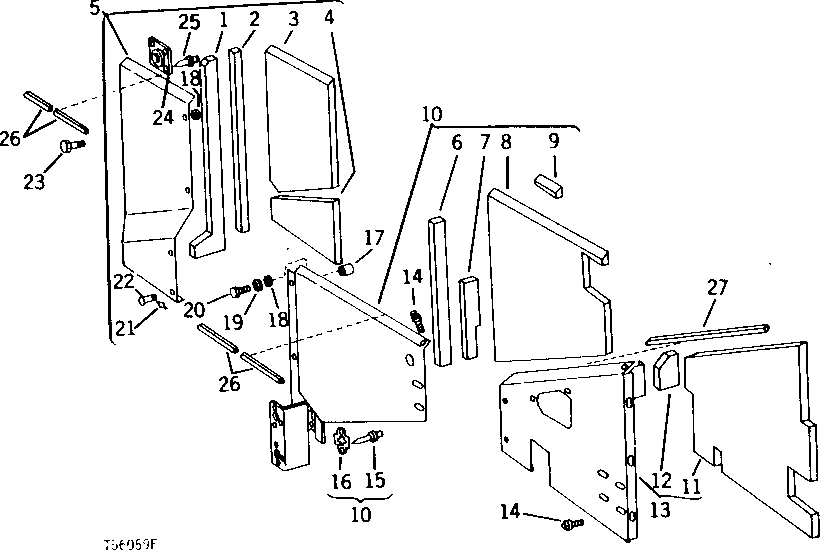

DOOR, UPPER AND LOWER SHIELDS AND BAFFLES (EXPORT ONLY) [02B20]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	DOOR FRONT ( T56161 USE IF AVAILABLE)
1	-	1	Part 1	DOOR FRONT ( T45347 USE IF AVAILABLE)
1	T135732	1	ISOLATOR	(SUB FOR T45347 AND T56161)
2	-	1	Part 4	( T45346 USE IF AVAILABLE)
3	-	1	Part 5	DOOR, UPPER ( T45345 USE IF AVAILABLE)
3	T135732	1	ISOLATOR	(SUB FOR T45345)
4	-	1	Part 7	DOOR, LOWER ( T45344 USE IF AVAILABLE)
4	-	1	Part 8	DOOR, LOWER ( T56160 USE IF AVAILABLE)
4	T135732	1	ISOLATOR	(SUB FOR T56160)
5	-	1	Part 10	WITH ISOLATORS, L.H. ( AT44189 USE IF AVAILABLE)
5	-	1	Part 11	WITH ISOLATORS, L.H. ( AT53939 USE IF AVAILABLE)
6	-	1	Part 12	( T45358 USE IF AVAILABLE)
6	T135732	1	ISOLATOR	(SUB FOR T45358)
7	-	1	Part 14	( T45359 USE IF AVAILABLE)
7	-	1	Part 15	( T56167 USE IF AVAILABLE)
8	-	1	Part 16	( T45356 USE IF AVAILABLE)
8	T135731	1	Isolator	(SUB FOR T45356)
9	-	1	Part 18	( T45357 USE IF AVAILABLE)
9	T135732	1	ISOLATOR	(SUB FOR T45357)
10	-	1	Part 20	UPPER LEFT, WITH ISOLATORS ( AT44193 NO LONGER AVAILABLE) (SUB AT44194 IF AVAILABLE) (ALSO ORDER THE FOLLOWING IF AVAILABLE T45356, T45357, T45358 AND T45359)
10	AT53943	1	SHIELD	UPPER LEFT, WITH ISOLATORS
10	T135732	1	ISOLATOR	(SUB FOR T45357 AND T45358)
11	T135731	1	Isolator	(SUB FOR T56169)
11	T135732	1	ISOLATOR	(SUB FOR T45363)
11	-	1	Part 23	( T45363 USE IF AVAILABLE)
11	-	1	Part 24	LOWER, LEFT ( T56169 USE IF AVAILABLE)
12	-	1	Part 27	SHIELD SPACER ( T45362 USE IF AVAILABLE)
12	T135732	1	ISOLATOR	(SUB FOR T45362)
13	-	1	Part 29	LOWER LEFT WITH ISOLATORS ( AT44196 NO LONGER AVAILABLE) (SUB AT44197 IF AVAILABLE) (ALSO ORDER THE FOLLOWING IF AVAILABLE T45362 AND T45363)
13	-	1	Part 30	LOWER LEFT WITH ISOLATORS (WHEN AT53945 IS NO LONGER AVAILABLE,ORDER THE FOLLOWING IF AVAILABLE T45362, T56169 AND AT56169)
13	-	1	Part 31	( AT53946 USE IF AVAILABLE) (ALSO ORDER THE FOLLOWING IF AVAILABLE T45362 AND T56169)
13	T135732	1	ISOLATOR	(SUB FOR T45362)
13	T135731	1	Isolator	(SUB FOR T45363 AND T56169)
14	T22211	8	SCREW WITH WASHER	-
15	AT44195	8	Rivet	-
16	-	4	Part 36	(SUB AT16695)
17	28H1611	5	Washer	0.269" X 0.405" X 5/16"
18	24H1288	12	Washer	9/32" X 1" X 1/16"
19	24H1908	5	Washer	17/64" X 1-3/4" X 0.095"
20	19H2721	4	Cap Screw	1/4" X 1-1/2"
21	M316T	1	Groove Pin	-
22	M322T	4	PIN FASTENER	-
23	19H2102	1	Cap Screw	1/4" X 1-3/4"
24	AM640T	2	CUSHION	(SUB FOR AT44187)
25	AT44188	12	Rivet	-
26	-	1	Part 46	TOP EDGE, 422 MM (16-1/2") LONG (MAKE FROM T61798, BULK MATERIAL CUT TO LENGTH) (SUB FOR T45412)
26	-	1	Part 47	UPPER SHIELD, TOP EDGE (MAKE FROM T61798, BULK MATERIAL CUT TO LENGTH) (SUB FOR T45412)
27	-	1	Part 48	LOWER SHIELD, TOP EDGE ( T45413 USE IF AVAILABLE)

DOOR, UPPER AND LOWER SHIELDS AND BAFFLES (EXPORT ONLY) [02B20]
