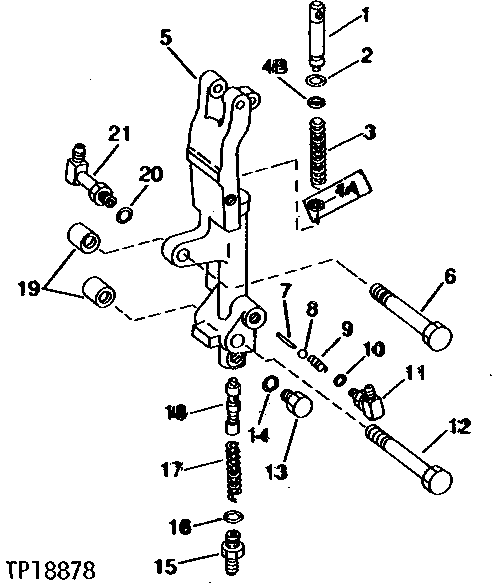

DIFFERENTIAL LOCK VALVE (SERIAL NO. 161708- ) [01G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R86162	1	PLUNGER	(SUB FOR R46863 AND R68648)
2	F3353R	1	O-Ring	-
3	R46862	1	Spring	-
5	R86767	1	HOUSING	(SUB FOR R46819)
6	19H2364	1	CAP SCREW	9/16" X 4-1/2"
7	R33058	1	NEEDLE ROLLER	-
8	400R	1	Ball	-
9	R26373	1	Spring	-
10	R26287	1	O-Ring	-
11	AT32335	1	ELBOW FITTING	90° ADJUSTABLE, (SUB FOR AR26746)
12	08H4686	1	Cap Screw	9/16" X 6-1/2"
13	R27094	1	Drain Plug	-
14	R26286	1	O-Ring	-
15	R46856	1	Fitting	-
16	R26448	1	O-Ring	-
17	R31698	1	SPRING	(SUB R82134 AND R74418, THIS APPLICATION)
17	R74418	1	Spring	-
18	R46855	1	SPOOL VALVE	(SUB R82134 AND R74418, THIS APPLICATION)
18	R79134	1	VALVE	(SUB FOR R74417) (SUB R82134 AND (11) R82133)
18	R82134	1	VALVE	(USE WITH R46819)
18	R85362	1	VALVE	(USE WITH R86767)
19	H29167	2	BUSHING	(SUB FOR C14757, THIS APPLICATION)
20	R26286	1	O-Ring	-
21	AR35710	1	ELBOW FITTING	90° ADJUSTABLE
4A	R82133	1	SHIM	.508 MM (.020") (SUB FOR R46901) (USE WITH R68648)
4B	B1664R	1	SHIM	0.76 MM (.030") (USE WITH R86162)
4B	R82133	1	SHIM	0.508 MM (.020") (USE WITH R86162)

DIFFERENTIAL LOCK VALVE (SERIAL NO. 161708- ) [01G22]
