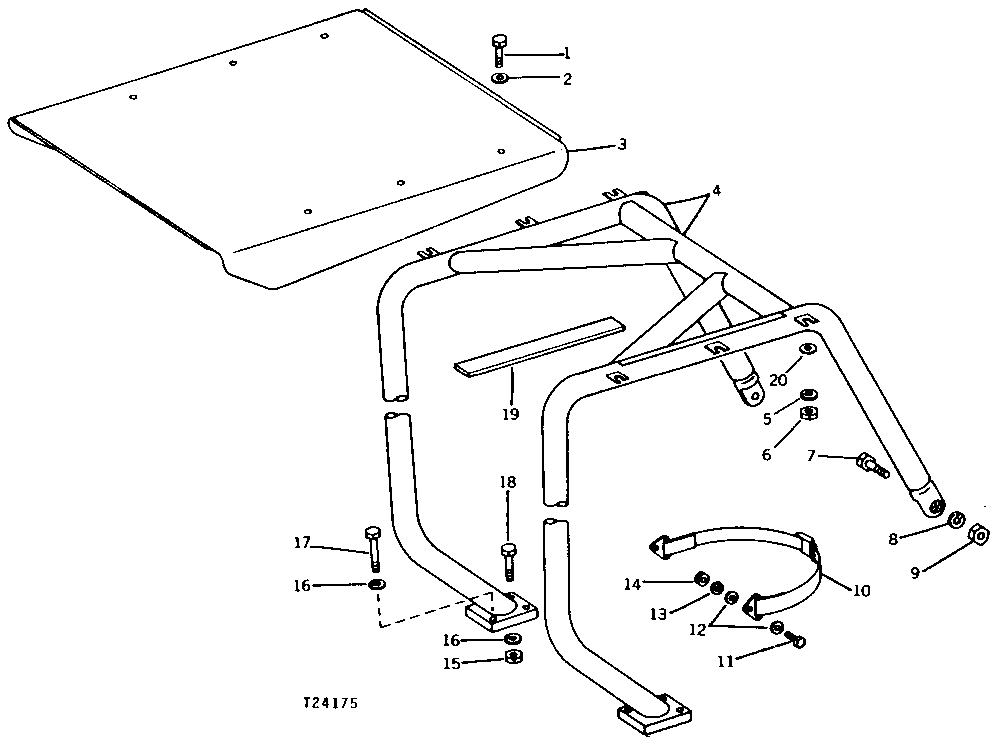

CANOPY, ROLL-GARD AND SEAT BELT [02C13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3239	6	Cap Screw	3/8" X 1-1/4"
2	24M7101	6	Washer	11 X 34 X 3 MM
3	AT33070	1	ROOF	-
4	AT39012	1	ROPS	(SUB FOR AT33069) (WITHOUT CAB)
4	AT36919	1	CANOPY	(WITH CAB)
5	12H304	6	Lock Washer	3/8"
6	14H812	6	NUT	3/8"
7	19H3099	2	CAP SCREW	1" X 3-3/4"
8	12H234	2	LOCK WASHER	1"
9	14H1048	2	Nut	1"
10	AT38518	1	SEAT BELT	76 MM (3") WIDE (COMPLIES WITH CALIFORNIA SAFETY CODE) (INCLUDES (2) R41778, (2) 12H293, (2) 14H813 AND (4) 24H1226)
10	AT37833	1	SEAT BELT	47 MM (1-7/8" WIDE)
10	AR41761	1	Hardware Kit	47 MM (1-7/8" WIDE)
11	R41778	2	Bolt	-
12	24H1226	4	Washer	1/2" X 1-1/4" X 0.083"
13	12H293	2	Lock Washer	7/16"
14	14H813	2	Nut	7/16"
15	14H794	2	Nut	3/4"
16	12H236	3	Lock Washer	3/4"
17	19H2411	2	Cap Screw	3/4" X 2-1/2"
18	19H3196	4	Cap Screw	3/4" X 4"
19	-	2	Part 22	(CUT TO LENGTH) (MAKE FROM AT186713)
20	24H1309	6	Washer	13/32" X 1-1/16" X 0.120"
..	AT33068	1	CANOPY	WITH ROOF AND SEAT BELT, (ALSO ORDER AR45916) (MUFFLER EXTENSION)

CANOPY, ROLL-GARD AND SEAT BELT [02C13]
