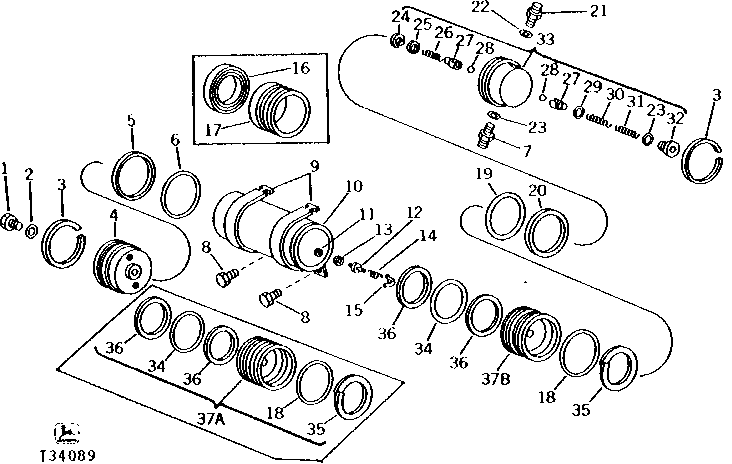

BRAKE ACCUMULATOR (MODEL NOS. 10HA1, 11HA1, AND 11HA2) (SERIAL NO. -700266) [02B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R27094	1	Drain Plug	(A)
2	R26286	1	O-Ring	(A)
3	U10136	2	SNAP RING	(A)
4	R48957	1	END	(A)
5	R78823	1	BACK-UP RING	(A) (SUB FOR R35684, THIS APPLICATION)
6	R86192	1	O-RING	(A) (SUB FOR U12331)
7	R27272	1	Fitting	-
8	19H2021	2	Cap Screw	3/8" X 5/8"
9	R41891	2	STRAP	-
10	R46987	1	HYDRAULIC CYLINDER BARREL	(A)
11	R60038	1	Packing	(A) (SUB FOR R26760)
12	R47085	1	VALVE	(A)
13	R47087	1	WASHER	-
14	R47086	1	SPRING	(A)
15	R41877	1	GUIDE	(A)
16	R35680	1	SEAL	(A)
17	R48952	1	PISTON	(A) (SUB R57103, (2) A4728R, R27649 AND (2) L29015) (SUB FOR R44253)
18	A4728R	2	O-Ring	(A)
19	R86192	1	O-RING	(A) (SUB FOR U12331)
20	R78823	1	BACK-UP RING	(A) (SUB FOR R35684, THIS APPLICATION)
21	R36742	1	COUPLING	-
22	R26287	1	O-Ring	-
23	R26286	2	O-Ring	-
24	R33282	1	Snap Ring	(A)
25	R48013	1	Washer	(A)
26	R44256	1	SPRING	(A)
27	R44254	2	GUIDE	(A)
28	400R	2	Ball	(A)
29	R31632	1	SHIM	(A)
30	R47606	1	Spring	(A)
31	R47605	1	SPRING	(A)
32	R47607	1	Pipe Plug	(A)
33	AR67781	1	CAP	(SUB FOR AR50387) (SUB AR93259) (SUB AR93259)
34	A4728R	1	O-Ring	(A)
35	R27649	1	BACK-UP RING	(A)
36	L29015	2	BACK-UP RING	(A)
..	AR67778	1	ACCUMULATOR	(SUB FOR AR51092) (SUB RE11956)
37A	AR55711	1	PISTON	(SUB FOR R49345) (SUB R57103, (2) A4728R, R27649 AND (2) L29015) WITH O-RINGS
37A	AL23523	1	BEARING	WITH 0-RINGS AND BACKUP RINGS, (SUB R57103, (2) A4728R, R27649 AND (2) L29015)
37B	R57103	1	PISTON	(A)
