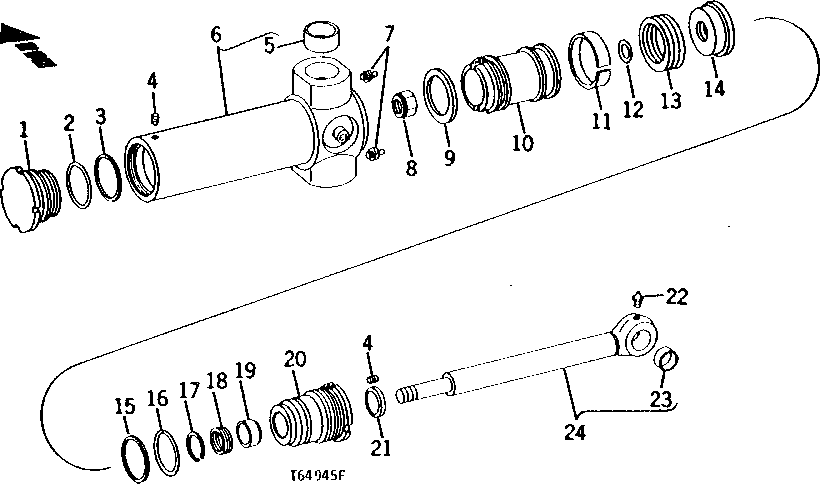

BACKHOE SWING CYLINDER (SERIAL NO. 303509-700717) [02J23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R81342	1	HYDRAULIC CYLINDER CAP	(SUB FOR U43461)
2	L2309CU	1	BACK-UP RING	(A)
3	L2301CU	1	O-Ring	(A)
4	22H842	2	SET SCREW	1/4" X 5/16"
5	U43454	2	BUSHING	-
6	AT56435	1	HYDRAULIC CYLINDER BARREL	(SUB AR104410)
6	AR104410	1	HYDRAULIC CYLINDER BARREL	-
7	T162396	2	Lubrication Fitting	(SUB FOR JD7798) 1/8"
8	L2235CU	1	LOCK NUT	-
9	U44491	1	PISTON RING	-
10	T37360	1	PISTON	-
11	U17337	1	WEAR RING	(A)
12	R29463	1	O-Ring	(A)
13	T37381	1	PACKING	(A) (SUB FOR R72830)
14	U17347	1	PISTON	(SUB R77809 AND RE18741, THIS APPLICATION)
15	A5598R	1	O-Ring	(A)
16	R79122	1	Back-Up Ring	(A) (SUB FOR T42032, THIS APPLICATION)
17	N10193	1	SNAP RING	-
18	R76801	1	PACKING	(A) (SUB FOR T35850)
19	U41578	1	WEAR RING	(A)
20	R80937	1	HYDR. CYLINDER ROD GUIDE	(SUB FOR T57011)
21	L2029CU	1	SEAL	(A)
22	JD7797	1	Lubrication Fitting	1/4"
23	T33708	1	BUSHING	-
24	AT56434	1	HYDRAULIC CYLINDER ROD	-
..	AT56433	1	HYDRAULIC CYLINDER	(SUB RE12723)
..	AR104408	1	HYDRAULIC CYLINDER	(SUB RE12723)
..	AR105387	1	HYDRAULIC CYLINDER KIT	(SUB FOR AT52710 AND AR96530)
