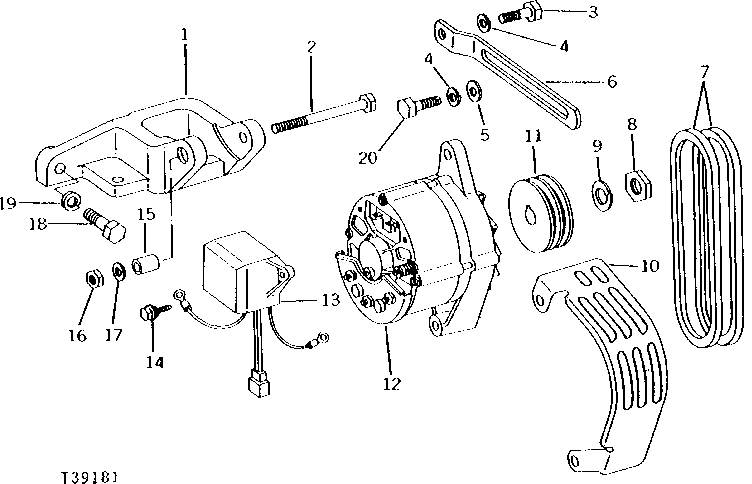

ALTERNATOR, REGULATOR AND MOUNTING BRACKETS [02F24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R40952	1	BRACKET	-
2	19H1854	1	Cap Screw	3/8" X 3-3/4"
3	19H1900	1	Cap Screw	5/16" X 3/4"
4	12H303	2	Lock Washer	5/16"
5	R53667	1	Lock Washer	11/32" X 11/16" X 0.060", (SUB FOR A3030R)
6	R40953	1	STRAP	-
7	AR41628	1	BELT SET	(GASOLINE) (JD500A&, JD500B)
7	AR41576	1	BELT SET	(DIESEL) (SUB FOR AR41629) (JD500A&, JD500B, JD500C, JD510)
8	14H866	1	Nut	5/8"
9	12H294	1	Lock Washer	5/8"
10	R122848	1	Shield	(SUB FOR R41334 AND AR50722 OR R56012)
11	R42294	1	PULLEY	-
12	-	1	Part 13	(SUB AR40420 OR TY1430) (MOTOROLA)
13	AR78298	1	VOLTAGE REGULATOR	(12 VOLT MOTOROLA) (SUB FOR AR38459 AND AR52927) (USE WITH MOTOROLA ALTERNATOR)
13	AH117788	1	Voltage Regulator	(12 VOLT PRESTOLITE) (USE WITH PRESTOLITE ALTERNATOR)
14	R44008	3	SCREW	-
15	R45377	1	SPACER	-
16	E55662	1	Flange Nut	-
17	12H304	1	Lock Washer	3/8", (NO LONGER REQUIRED)
18	19H2731	2	Cap Screw	7/16" X 1-3/8"
19	12H293	2	Lock Washer	7/16"
20	19H1905	1	Cap Screw	5/16" X 1"

ALTERNATOR, REGULATOR AND MOUNTING BRACKETS [02F24]

Нет текстового описания
