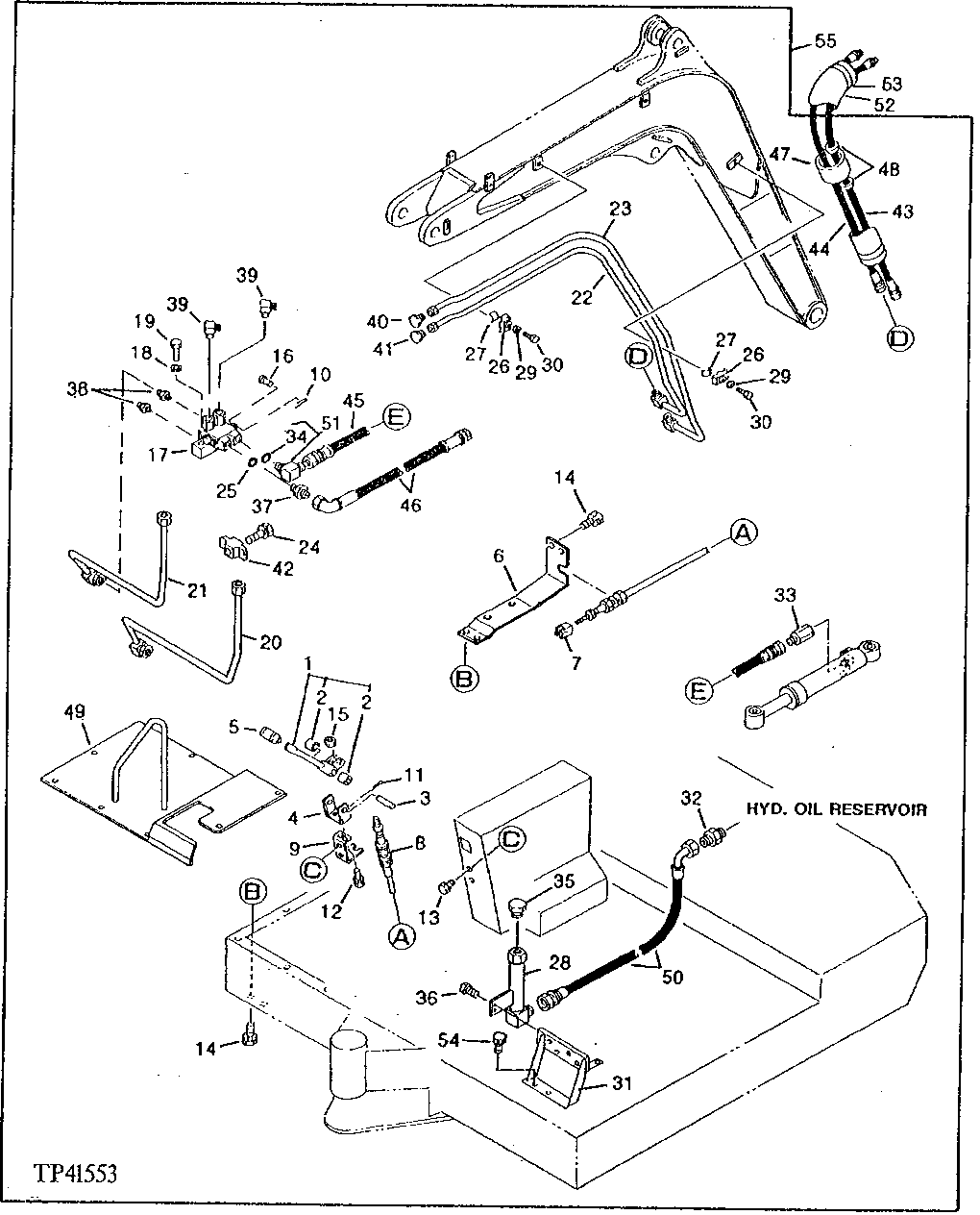

AUXILIARY FUNCTION CONTROL VALVE AND HYDRAULIC OIL LINES [I21]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT110671	1	LEVER	-
2	T110633	2	BUSHING	-
3	AT110001	1	SHAFT	(SUB FOR T111447)
4	T110105	1	BRACKET	-
5	T110837	1	GRIP	-
6	T111448	1	SUPPORT	-
7	T111449	1	LINK	-
8	T111450	1	PUSH PULL CABLE	-
9	T111451	1	BRACKET	-
10	11M7094	1	Cotter Pin	1.600 X 16 MM, (SUB FOR T110417)
11	11M7087	1	Cotter Pin	4 X 40 MM
12	19M7166	2	Cap Screw	M10 X 20
12	12M7066	2	Lock Washer	10 MM
13	19M7166	2	Cap Screw	M10 X 20
13	12M7066	2	Lock Washer	10 MM
14	12M7066	4	Lock Washer	10 MM
14	19M7166	4	Cap Screw	M10 X 20
15	14M7229	1	Nut	M5
16	T110484	1	PIN FASTENER	-
17	T111452	1	SELECTIVE CONTROL VALVE	-
18	12M7060	2	Washer	5.300 MM
19	CH15013	2	BOLT	-
20	T111453	1	PIPE	-
21	T111454	1	PIPE	-
22	T111455	1	PIPE	-
23	T111456	1	PIPE	-
24	M800452	1	SCREW WITH WASHER	-
25	T110593	1	Packing	-
26	T111457	4	CLAMP	(USE IF AVAILABLE)
27	T111458	4	SPACER	-
28	T111459	1	PIPE	-
29	12M7058	4	Lock Washer	12 MM, (SUB FOR 12M7067)
30	19M7331	4	Cap Screw	M12 X 65
31	T111460	1	PIPE	-
32	4156432	1	ADAPTER FITTING	(SUB FOR T111461) (SUB FOR TH101939)
33	T111462	1	ADAPTER	-
34	T110593	1	Packing	-
35	T111464	1	PLUG	-
36	19M7166	2	Cap Screw	M10 X 20
36	12M7066	2	Lock Washer	10 MM
37	T110896	1	FITTING	-
38	4154653	2	ADAPTER FITTING	(SUB FOR T110871) (SUB FOR TH100989)
39	4154658	2	Elbow Fitting	(SUB FOR T110870) (SUB FOR TH101039)
40	T111465	1	PLUG	-
41	T111464	1	PLUG	-
42	T110599	1	CLAMP	-
43	T111466	1	HYDRAULIC HOSE - FABRICATE	-
44	T111467	1	HYDRAULIC HOSE - FABRICATE	-
45	T111468	1	HYDRAULIC HOSE - FABRICATE	-
46	T111469	1	HYDRAULIC HOSE - FABRICATE	-
47	T111470	1	BUSHING	-
48	T110897	2	GROMMET	-
49	T111471	1	COVER	-
50	T111472	1	HYDRAULIC HOSE - FABRICATE	-
51	T111463	1	ELBOW FITTING	-
52	T114060	1	COVER	WITH CANOPY
53	T111653	2	Tie Band	WITH CANOPY
54	12M7066	2	Lock Washer	10 MM
54	19M7402	2	Cap Screw	M10 X 25
55	-	1	Part 60	( AT107210 NO LONGER AVAILABLE)
