Открытый узел

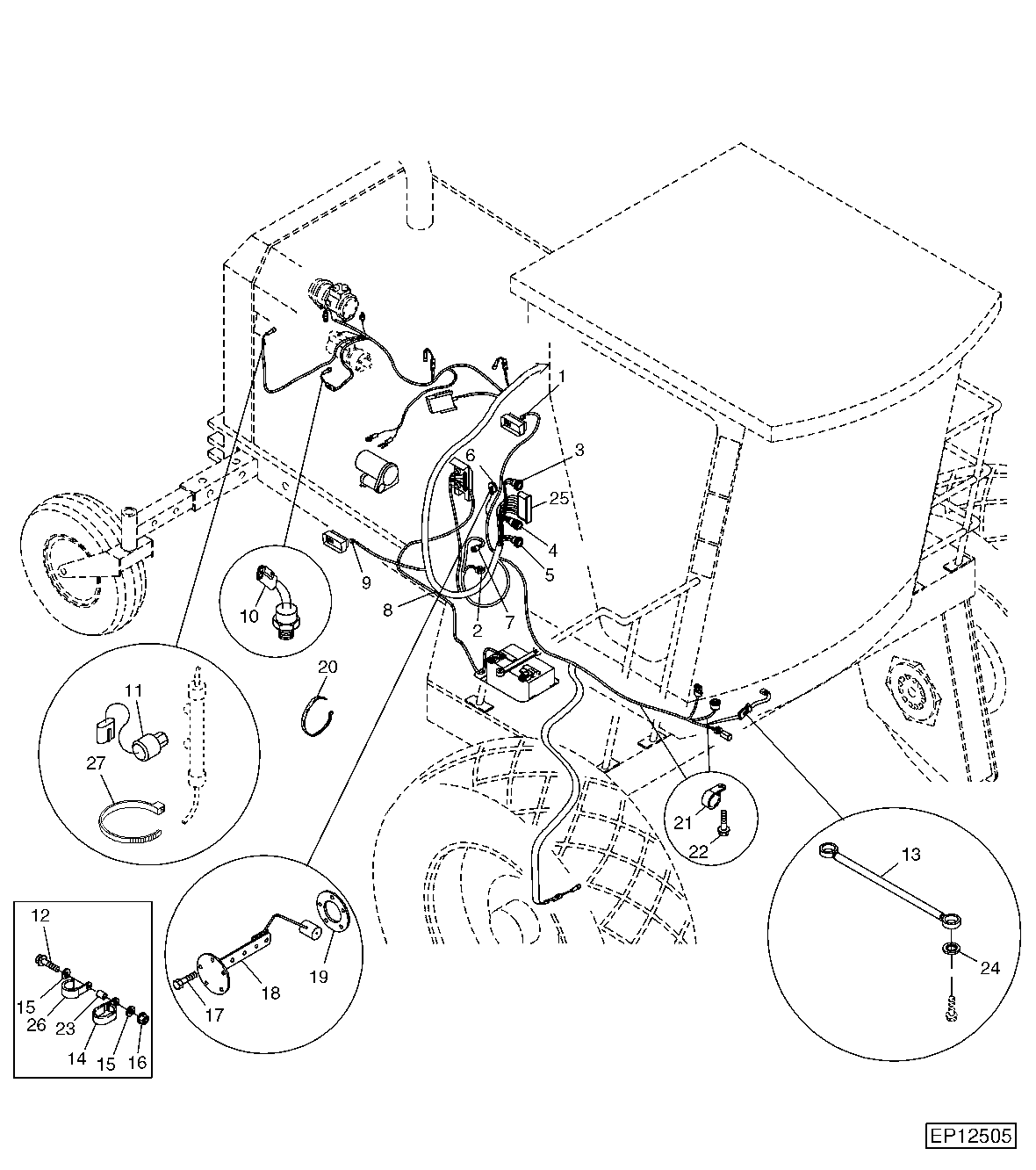

Wiring Harness (Right Side) (Main Traction) - Continued

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R78063	1	Elec. Connector Seal	-
1	57M7552	1	Electrical Connector Assy	FLOOD LAMP
1	57M7491	1	Elec. Connector Terminal	12-14 GAUGE
2	57M7306	1	Elec.Connect Locking Device	PLATFORM FORWARD
2	57M7309	1	Elec. Connector Housing	-
3	H130510	1	Elec. Connector Terminal	TO HEAT/AIR CONDITIONER HARNESS
3	57M7536	1	Elec. Connector Terminal	-
3	R78069	1	Elec. Connector Cavity Plug	-
3	R78066	1	Elec. Connector Terminal	-
3	R78063	1	Elec. Connector Seal	-
4	R77464	1	Elec. Connector Terminal	-
4	R78059	1	Elec. Connector Seal	-
4	57M7297	1	Elec. Connector Terminal	MPH280 - ARMREST HARNESS
4	AE44931	1	Elec. Connector Accessory	CLAMP
4	57M7822	1	Electrical Connector Assy	14 CAVITY TO ARMREST HARNESS
5	N282065	1	Elec. Connector Terminal	9 CAVITY TO MAIN CAB HARNESS
5	57M7297	1	Elec. Connector Terminal	-
5	R78059	1	Elec. Connector Seal	-
5	R104701	1	Elec. Connector Terminal	-
5	R78065	1	Elec. Connector Terminal	-
5	R78058	1	Elec. Connector Terminal	-
5	R78069	1	Elec. Connector Cavity Plug	-
6	57M7813	1	Elec. Connector Housing	FUEL SENDER
6	R104919	1	Elec. Connector Terminal	-
6	57M7258	1	Elec. Connector Seal	-
7	AE44389	1	Elec. Connector Accessory	-
7	AE44392	1	Electrical Connector Assy	PLATFORM SPEED
8	AE70970	1	Wiring Harness	(SUB AE73190) MAIN
8	AE73190	1	Wiring Harness	(SUB AE74212) (ALSO ORDER AN220289)
8	AE74212	1	Wiring Harness	-
9	57M7552	1	Electrical Connector Assy	FLOOD LAMP
9	R78063	1	Elec. Connector Seal	-
9	57M7491	1	Elec. Connector Terminal	12-14 GAUGE
10	AH172066	1	Switch	ENGINE OIL PRESSURE
11	RE24307	1	Pressure Switch	-
12	19M7663	1	Cap Screw	M8 X 70
13	AE70409	1	Ground Cable	-
14	AH79175	1	Clip	-
15	24M7207	2	Washer	8.400 X 24 X 2 mm
16	14M7298	1	Flange Nut	M8
17	21H1300	2	SCREW	0.190" X 3/8"
18	AE54875	1	Fuel Sender	-
19	T155195	1	Gasket	-
20	R44302	1	Tie Band	-
21	AH90990	2	Clip	-
22	19M7868	2	Screw	M8 X 30
23	T71897	1	SLEEVE	-
24	PT2314	1	Washer	-
25	57M7812	1	Connector	-
25	57M7815	1	Lock	-
25	E92564	1	Seal	-
26	AH130222	1	Clamp	-
27	H77698	1	Tie Band	-

Wiring Harness (Right Side) (Main Traction) - Continued
