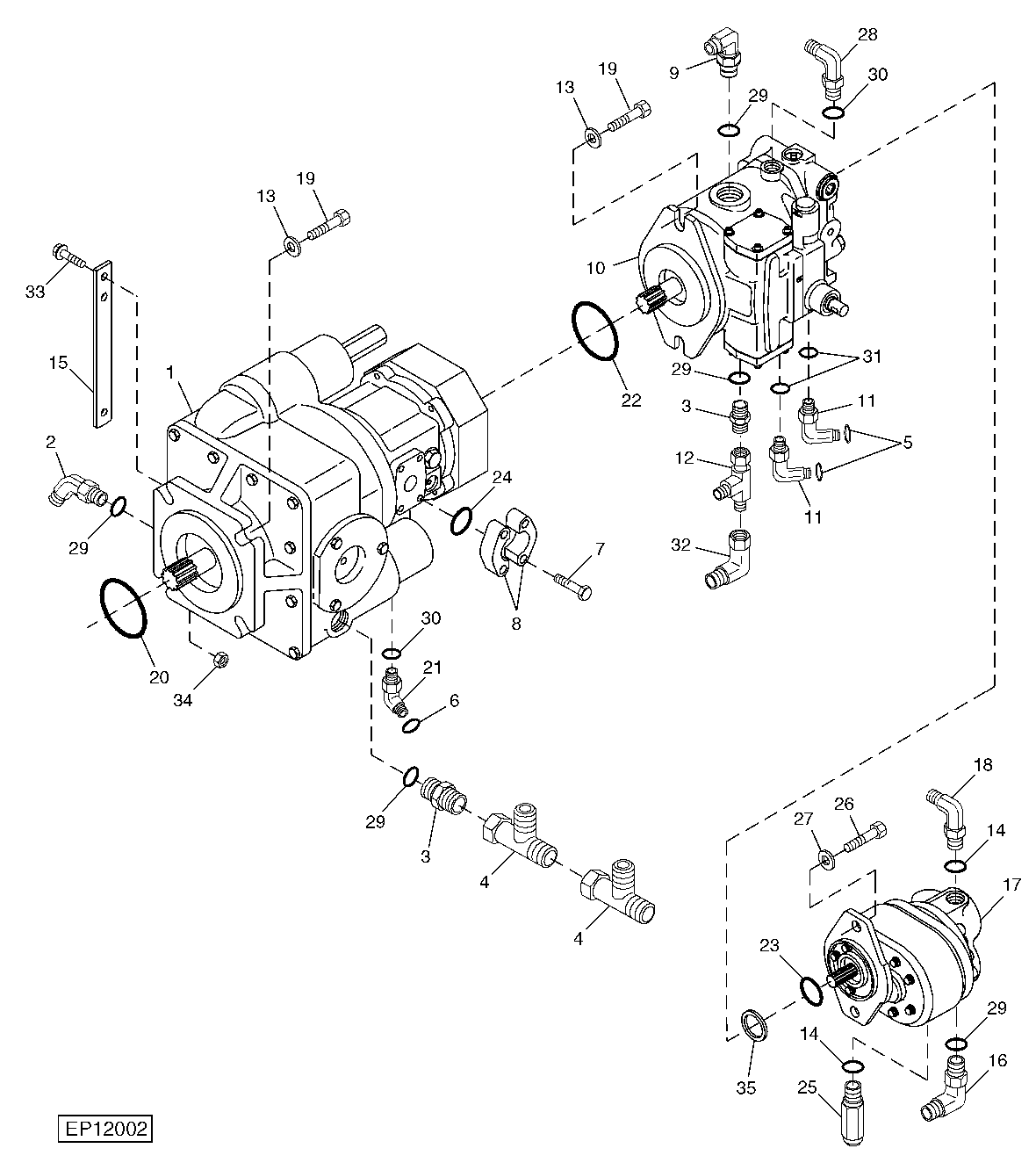

Tandem Pump Assembly (R.H. Pumps) ( - 319999)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE71529	1	Hydraulic Pump	-
1	AE70117	1	Hydraulic Pump	PLATFORM DRIVE
2	AT48506	1	Elbow Fitting	-
3	R27267	2	Fitting	-
4	AE71051	2	Tee Fitting	-
5	T77858	2	O-Ring	-
6	T77857	1	O-Ring	-
7	19H2563	8	Cap Screw	7/16" X 1-3/4"
8	H122182	4	Flange Fitting	-
9	AT52417	1	Elbow Fitting	-
10	AE70181	1	Hydraulic Pump	GROUND DRIVE
11	38H1052	2	Elbow Fitting	-
12	X12R6X-S	1	Tee Fitting	(SUB FOR AT43903)
13	24H1254	6	Washer	17/32" X 1-1/8" X 0.105"
14	R26906	2	O-Ring	-
15	E92817	1	Strap	-
15	E98742	1	Strap	(A)
16	AH76990	1	Elbow Fitting	-
16	AE71534	1	Fitting	-
17	AE70485	1	Seal Kit	-
17	AE70387	1	Pump	-
18	AR26724	1	Elbow Fitting	-
18	AE71535	1	Fitting	-
19	19H2898	6	Cap Screw	1/2" X 1-1/4"
20	C11884	1	O-Ring	-
21	X8-10V5OLO-S	1	Elbow Fitting	(SUB FOR 38H1046, THIS APPLICATION)
21	AW25149	1	Fitting	(SUB FOR AT35599, THIS APPLICATION)
22	E66413	1	O-Ring	-
23	E65288	1	O-Ring	-
24	T78313	2	O-Ring	-
25	AE59080	1	Pressure Relief Valve	-
26	19H3483	2	Cap Screw	3/8" X 1-1/8"
27	24H1864	2	Washer	13/32" X 3/4" X 7/64"
28	AT32332	1	Elbow Fitting	-
29	U12547	5	O-Ring	-
30	R26375	2	O-Ring	-
31	R29936	2	O-Ring	-
32	AT28379	1	Fitting	-
33	19M7862	2	Screw	M6 X 20
34	E63524	2	Nut	-
35	E125697	1	Seal	(SUB FOR AE70484)

Tandem Pump Assembly (R.H. Pumps) ( - 319999)
