PLATFORM DRIVE SHAFT, HOUSING, SWASHPLATE, AND SERVO CYLINDERS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	N126603	1	Pin Fastener	-
2	M48000	2	Snap Ring	-
3	AH131391	1	Holder Kit	-
4	E97535	1	Splined Coupling	-
5	AT175471	2	Flow Control Hyd. Valve	-
6	R26906	2	O-Ring	-
7	AN274375	4	Pin Fastener	-
8	19H3198	4	Screw	1/2" X 3-1/4"
9	JD9076	2	Bearing Cone	-
9	JD9133	2	Bearing Cup	-
10	N126600	2	Link	-
11	AE59145	1	Pressure Relief Valve	6000 PSI
12	E98327	1	Housing	-
13	AN122506	1	Shim	FOUR, .002", .005", .010", AND .015"
14	T14065	2	O-Ring	-
15	E98328	1	Gasket	-
16	19H2284	6	Cap Screw	3/8" X 7/8"
17	H63271	2	Pin	-
18	FH319816	1	Gasket	(SUB FOR N376359)
19	R51031	1	Fitting	-
20	AN122507	1	Tapered Roller Bearing	-
21	AN122509	1	Shim	FIVE, .002", .005", .010, AND .015"
22	R28782	2	O-Ring	-
23	19H3230	6	Screw	3/8" X 4-1/2"
24	19H3053	4	Screw	5/16" X 1"
25	L26753	2	SCREW	-
26	19H3176	6	Screw	0.164" X 0.380"
27	N126602	2	Retainer	SERVO
28	AZ46634	1	Housing	(SUB FOR AN122493) SERVO, INCLUDES R53543 AND M43518 O-RINGS
29	AH131172	2	Piston	(INCLUDES KEYS 7 AND 10)
30	R53543	2	O-Ring	-
31	M43518	2	O-Ring	-
32	AN122518	1	Fitting Plug	-
32	R28782	1	O-Ring	-
33	AE59144	1	Pressure Relief Valve	5000 PSI
34	AE59143	2	Check Valve	-
..	AE70117	1	Hydraulic Pump	(SUB FOR AE55478)

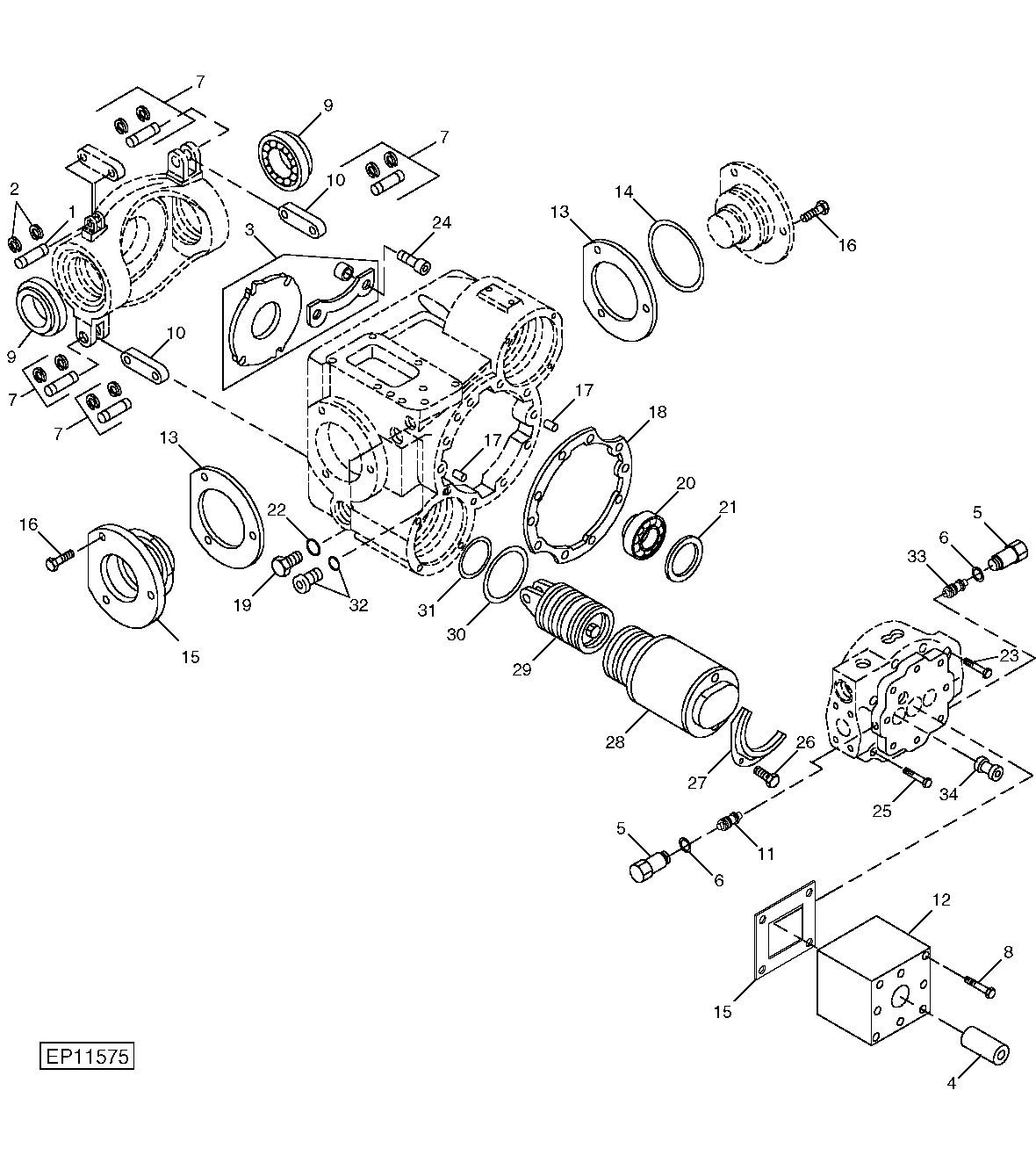

PLATFORM DRIVE SHAFT, HOUSING, SWASHPLATE, AND SERVO CYLINDERS
