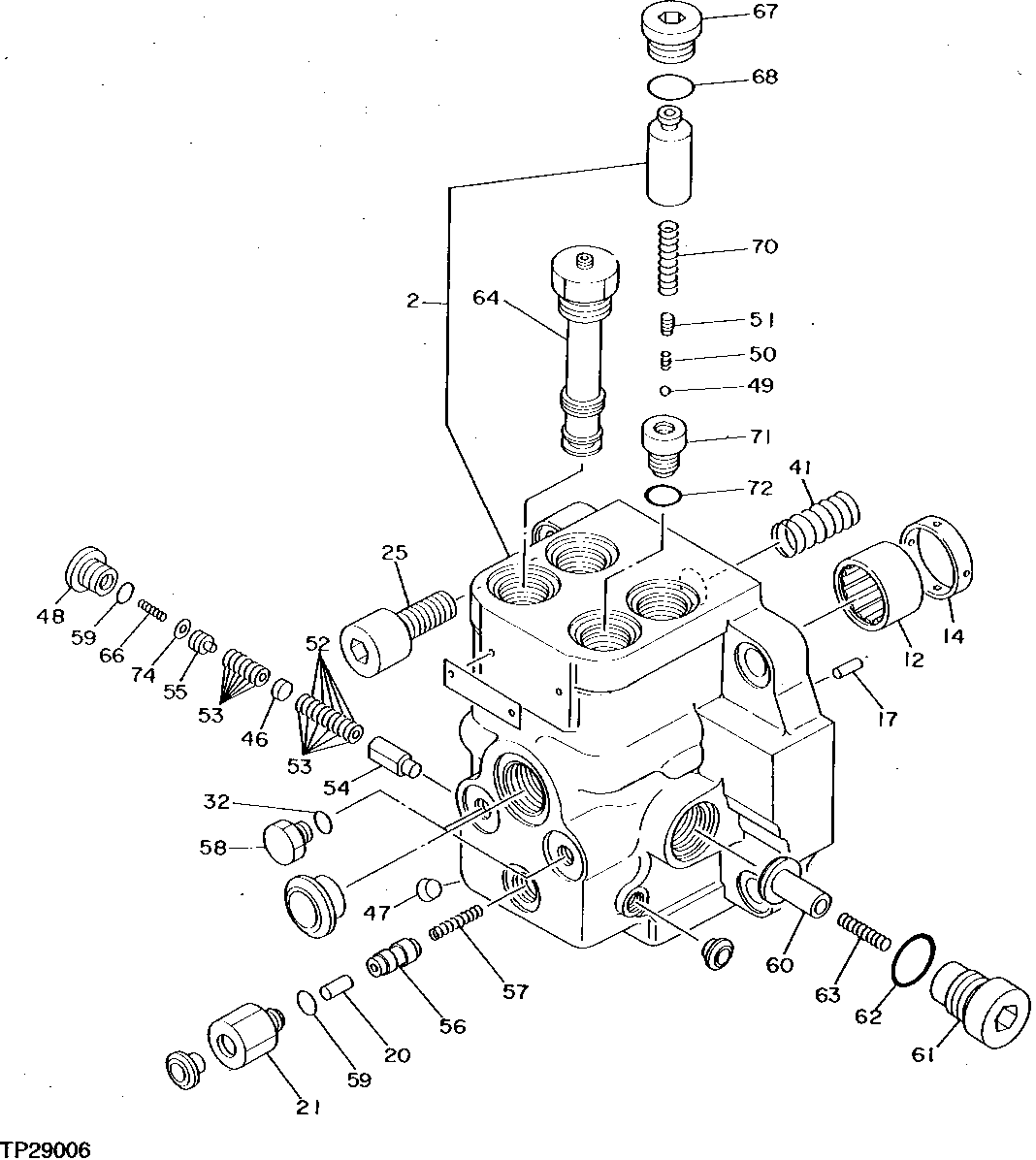

SWING MOTOR (SERIAL NO. 001037- ) [02L15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	-	1	Part 1	( AT130569 NO LONGER AVAILABLE)
12	TH105723	1	NEEDLE BEARING	-
14	0224913	1	BUSHING	(SUB FOR TH105724)
17	0311313	3	Pin	(SUB FOR TH109056)
20	44M7027	1	Pin	(SUB FOR TH109057)
21	0311315	1	PIPE PLUG	(SUB FOR TH109058)
25	19M8490	4	Screw	M16 X 40, (SUB FOR TH109061)
32	M800650	2	Packing	-
41	0356705	8	Spring	(SUB FOR AT128057)
46	0311326	1	Filter	(SUB FOR TH109072)
47	15H560	1	Pipe Plug	-
48	0356604	1	PIPE PLUG	(SUB FOR AT128051)
49	M40351	2	BALL	(SUB FOR TH109073)
50	0311328	2	SPRING	(SUB FOR TH109074)
51	0311329	2	GUIDE	(SUB FOR TH109075)
52	0311330	5	ORIFICE	(SUB FOR TH109076)
53	0311331	13	SHIM	(SUB FOR TH109077)
54	0356605	1	HOUSING	(SUB FOR AT128052)
55	0356606	1	SCREW	(SUB FOR AT128053)
56	0356607	1	FLOW CONTROL HYD. VALVE	(SUB FOR AT128054)
57	0311335	1	SPRING	(SUB FOR TH109081)
58	0419902	2	Fitting Plug	(SUB FOR TH109062) (SUB FOR AT201563)
59	CH11570	2	O-Ring	-
60	0111711	2	POPPET	(SUB FOR TH102728)
61	0224411	2	FITTING PLUG	(SUB FOR TH102731)
62	U17409	2	O-Ring	(SUB FOR TH102730)
63	0311337	2	SPRING	(SUB FOR TH109083)
64	4206608	2	PRESSURE RELIEF VALVE	(SUB FOR AT134054)
66	0356608	1	SPRING	(SUB FOR AT128055)
67	T64769	2	Drain Plug	(SUB FOR TH103581)
68	U12547	2	O-Ring	(SUB FOR TH103582)
70	0311340	2	SPRING	(SUB FOR TH109087)
71	0311341	2	FITTING PLUG	(SUB FOR TH109088)
72	4140470	2	O-Ring	(SUB FOR TH109089)
74	0356609	1	WASHER	(SUB FOR AT128056)
75	-	1	Part 36	( AT217308 NLA) REMANUFACTURED, (SUB FOR AT130606) (NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE, FOR ADDITIONAL COMPONENTS SEE PREVIOUS PAGE)

SWING MOTOR (SERIAL NO. 001037- ) [02L15]
