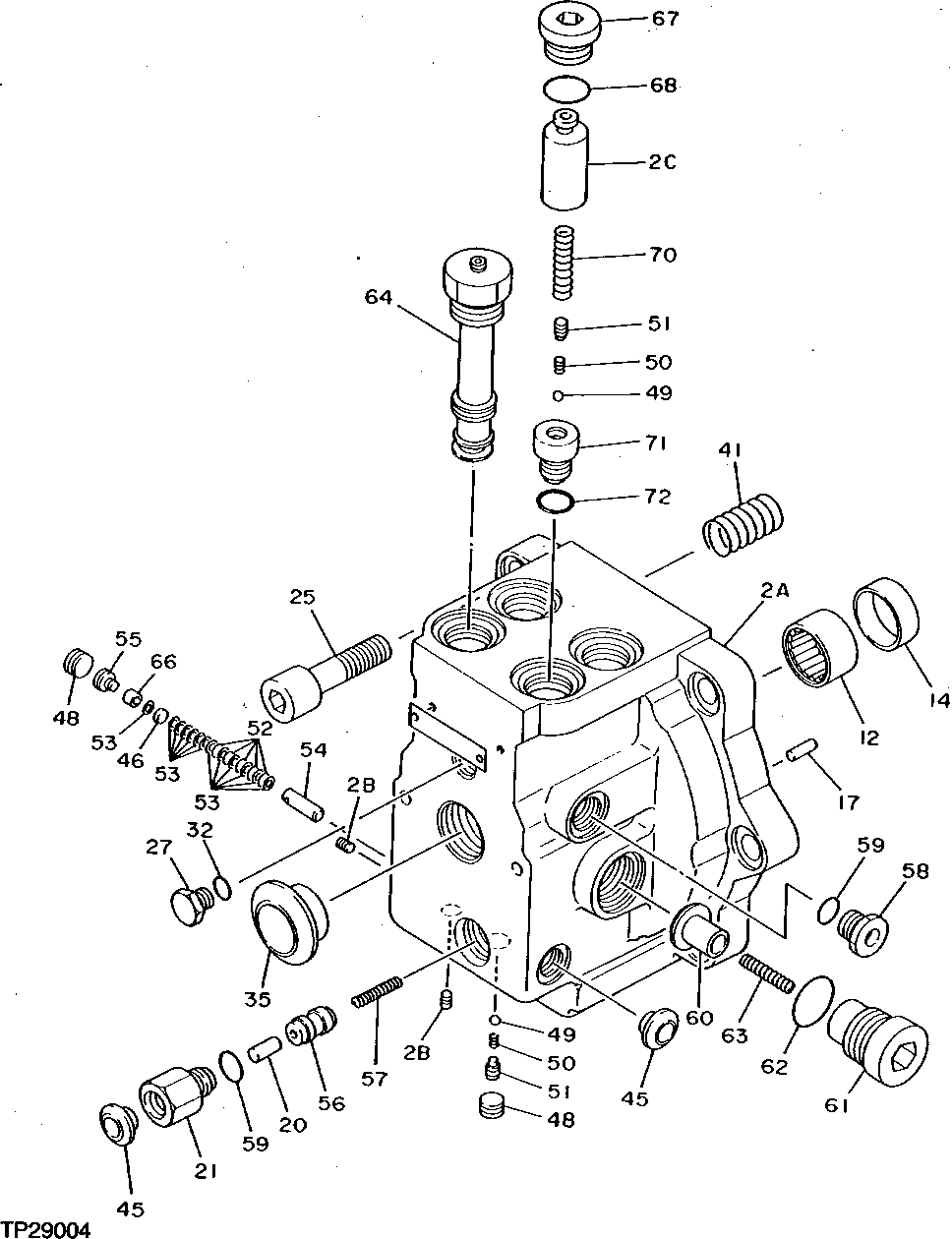

SWING MOTOR (SERIAL NO. -001036) [02L11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	0311302	1	COVER	(SUB FOR TH109045) (NOT ILLUSTRATED) (CONTAINS 2A, 2B AND 2C)
12	TH105723	1	NEEDLE BEARING	-
14	0311310	1	Bushing	(SUB FOR TH109053)
17	0311313	3	Pin	(SUB FOR TH109056)
20	44M7027	1	Pin	(SUB FOR TH109057)
21	0311315	1	PIPE PLUG	(SUB FOR TH109058)
25	19M8490	6	Screw	M16 X 40, (SUB FOR TH109061)
27	0419902	1	Fitting Plug	(SUB FOR TH109062) (SUB FOR AT201563)
32	M800650	1	Packing	-
35	-	1	Part 13	(SUB AT217308)
41	0311325	8	SPRING	(SUB FOR TH109069)
45	-	2	Part 15	(SUB AT217308)
46	0311326	1	Filter	(SUB FOR TH109072)
48	94-2011	2	FITTING PLUG	(SUB FOR TH100434)
49	M40351	3	BALL	(SUB FOR TH109073)
50	0311328	3	SPRING	(SUB FOR TH109074)
51	0311329	3	GUIDE	(SUB FOR TH109075)
52	0311330	5	ORIFICE	(SUB FOR TH109076)
53	0311331	13	SHIM	(SUB FOR TH109077)
54	0311332	1	HOUSING	(SUB FOR TH109078)
55	0311333	1	SET SCREW	(SUB FOR TH109079)
56	0311334	1	FLOW CONTROL HYD. VALVE	(SUB FOR TH109080)
57	0311335	1	SPRING	(SUB FOR TH109081)
58	0311336	2	Pipe Plug	(SUB FOR TH109082)
59	CH11570	3	O-Ring	-
60	0111711	2	POPPET	(SUB FOR TH102728)
61	0224411	2	FITTING PLUG	(SUB FOR TH102731)
62	U17409	2	O-Ring	(SUB FOR TH102730)
63	0311337	2	SPRING	(SUB FOR TH109083)
64	4206608	2	PRESSURE RELIEF VALVE	(SUB FOR AT134054)
66	0311339	1	WASHER	(SUB FOR TH109086)
67	T64769	2	Drain Plug	(SUB FOR TH103581)
68	U12547	2	O-Ring	(SUB FOR TH103582)
70	0311340	2	SPRING	(SUB FOR TH109087)
71	0311341	2	FITTING PLUG	(SUB FOR TH109088)
72	4140470	2	O-Ring	(SUB FOR TH109089)
74	-	1	Part 40	REMANUFACTURED, (SUB FOR TH111891) (NOT ILLUSTRATED) (CONTAINED ALL ITEMS ON THIS PAGE, ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGE) (SWING) ( AT130606 NO LONGER AVAILABLE) (SUB AT217308, ALONG WITH T111897, TH111890, TH109540, (2) T77858, TH110496, 8042184 AND TH111892)
2A	-	1	Part 2	(SUB TH109045)
2B	-	2	Part 3	(SUB TH109045)
2C	-	2	Part 4	(SUB TH109045)
