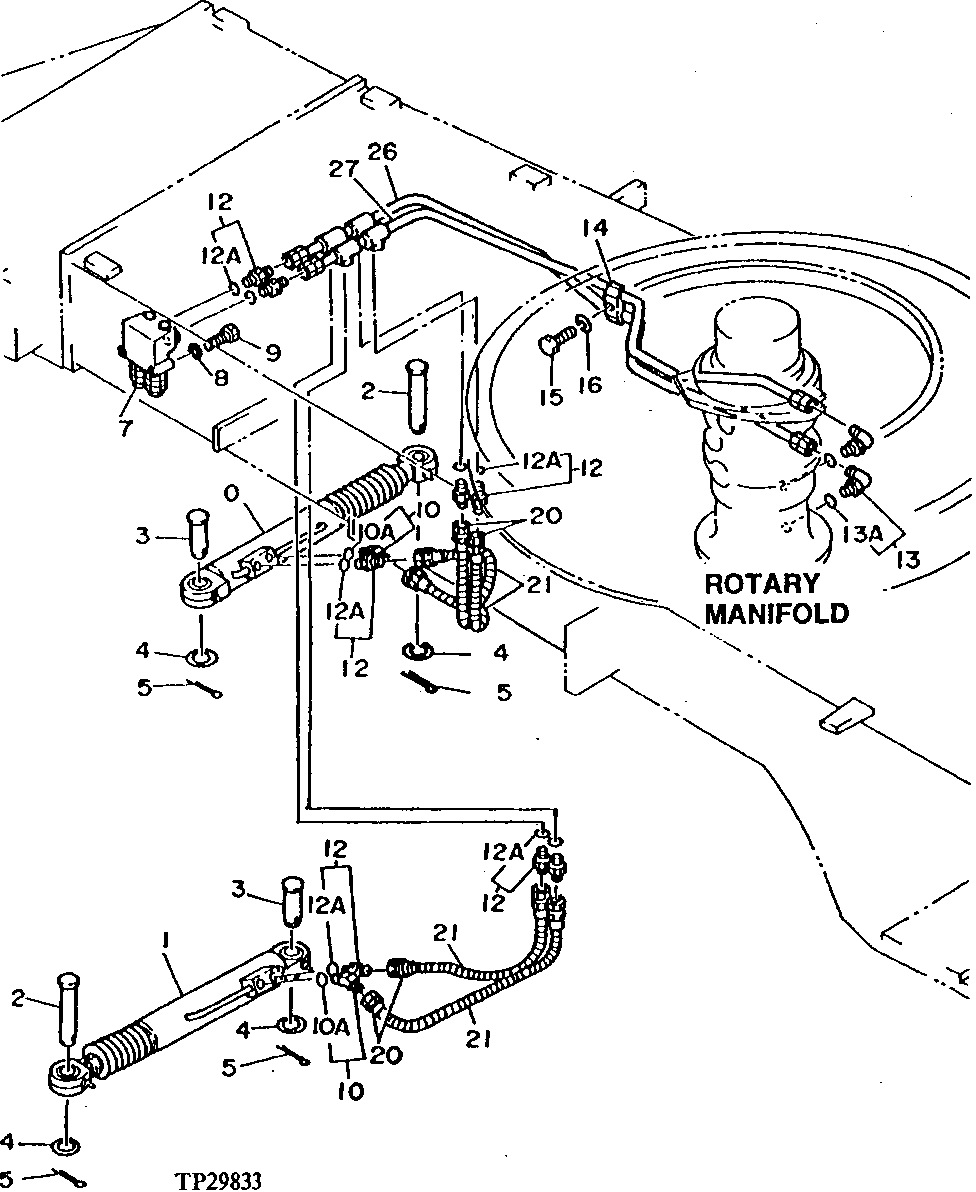

STEERING HYDRAULIC CYLINDERS, HOSES AND LINES (UNDERCARRIAGE) [01G22]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4196020	1	CYLINDER	(SUB FOR AT126305)
1	4196019	1	CYLINDER	(SUB FOR AT126304)
2	4180012	2	PIN FASTENER	(SUB FOR AT126255)
3	4180011	2	Pin Fastener	(SUB FOR AT126254)
4	24M7202	4	Washer	31 X 56 X 4 MM
5	11M7073	4	Cotter Pin	8 X 63 MM
7	4207573	1	PRESSURE RELIEF VALVE	(SUB FOR AT126387)
8	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
9	19M7184	2	Cap Screw	M8 X 55
10	4190244	2	Elbow Fitting	(SUB FOR TH106152)
12	4200466	8	Adapter Fitting	(SUB FOR TH108320)
13	4200471	2	Elbow Fitting	(SUB FOR TH108399)
14	4189858	1	Clamp	(SUB FOR TH108333)
15	19M7496	1	Cap Screw	M12 X 45, (SUB FOR AT122612)
16	12H301	1	Lock Washer	1/2"
20	AT37543	4	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT126386)
21	E90991	4	Hose Guard	(SUB FOR TH104323, TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)
26	8037205	1	OIL LINE	(SUB FOR AT127011)
27	8037204	1	OIL LINE	(SUB FOR AT127010)
10A	CH11570	1	O-Ring	-
12A	CH11570	1	O-Ring	-
13A	4506418	1	O-Ring	(SUB FOR U46489)

STEERING HYDRAULIC CYLINDERS, HOSES AND LINES (UNDERCARRIAGE) [01G22]
