SERVICE BRAKE SYSTEM HOSES AND LINES [01H13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4196312	1	ANGLE	(SUB FOR AT126313)
2	4180463	2	CYLINDER	(SUB FOR TH104339)
3	4196315	1	BRACKET	(SUB FOR AT126314)
4	14M7273	6	Nut	M8
5	12M7056	10	Lock Washer	8 MM, (SUB FOR 12M7065)
6	19M7932	4	Cap Screw	M8 X 16
8	4194439	2	HYDRAULIC RESERVOIR	(SUB FOR TH110211)
9	12M7006	14	Lock Washer	6 MM
10	19M7923	14	Cap Screw	M6 X 12
12	TY22464	4	Clamp	(SUB FOR AT145649) (SUB FOR AR21836)
13	-	2	Part 11	( TH104323 NO LONGER AVAILABLE) (CUT TO LENGTH FROM TH106022 BULK MATERIAL)
14	-	2	Part 12	(SUB FOR AT126316) (MF TY25141 CTL 270MM) ( 4196455 NLA)
15	4040197	1	ADAPTER FITTING	(SUB FOR TH104005)
16	8037177	1	OIL LINE	(SUB FOR AT127009)
17	94-1601	2	PIPE BUSHING	(SUB FOR TH103472)
18	4163158	1	TEE FITTING	(SUB FOR AT126219)
19	4086584	1	ELBOW FITTING	(SUB FOR TH104012)
20	9726683	1	OIL LINE	(SUB FOR AT127206)
24	9726690	1	OIL LINE	(SUB FOR AT127207)
25	4179081	2	Tee Fitting	(SUB FOR AT126251)
26	4179075	1	ELBOW FITTING	(SUB FOR TH104347)
27	12H301	7	Lock Washer	1/2"
28	14M7357	7	Nut	M12
29	8037173	1	OIL LINE	(SUB FOR AT127007)
30	8037174	1	OIL LINE	(SUB FOR AT127008)
32	4153987	4	HOSE	(SUB FOR AT126211)
33	987857	4	O-RING	(SUB FOR TH104376)
34	4205136	4	Grommet	(SUB FOR AT126361)
37	8037280	1	OIL LINE	(SUB FOR AT127017)
38	8037206	1	OIL LINE	(SUB FOR AT127012)
39	8033930	2	OIL LINE	(SUB FOR AT126992)
41	TH104034	2	Clamp	-
42	4000853	8	CLAMP	(SUB FOR TH104350)
43	3039628	1	COVER	(SUB FOR AT134032)
44	19M7938	4	Cap Screw	M10 X 20
45	12M7066	4	Lock Washer	10 MM
46	24M7028	4	Washer	10.500 X 20 X 2 MM

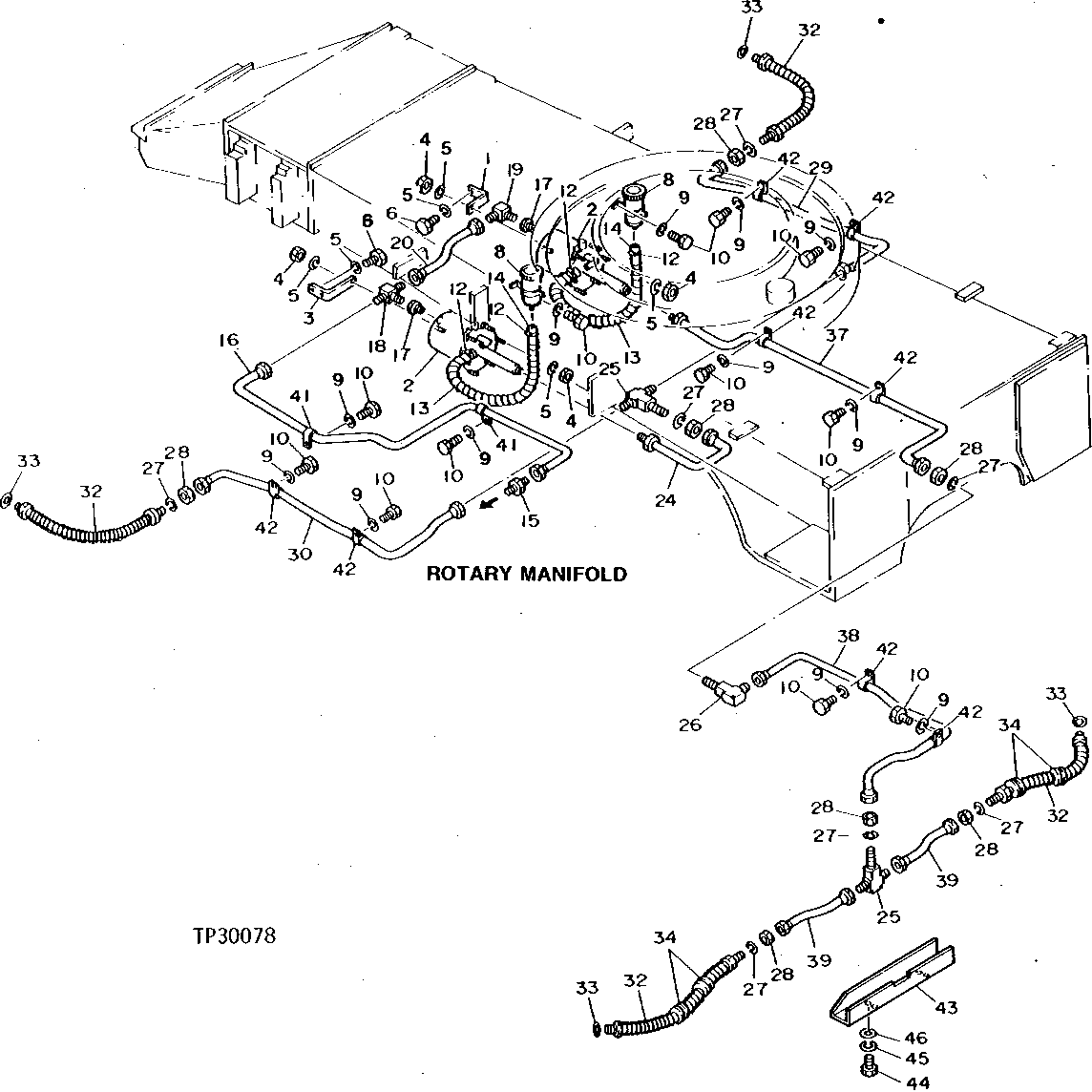

SERVICE BRAKE SYSTEM HOSES AND LINES [01H13]
