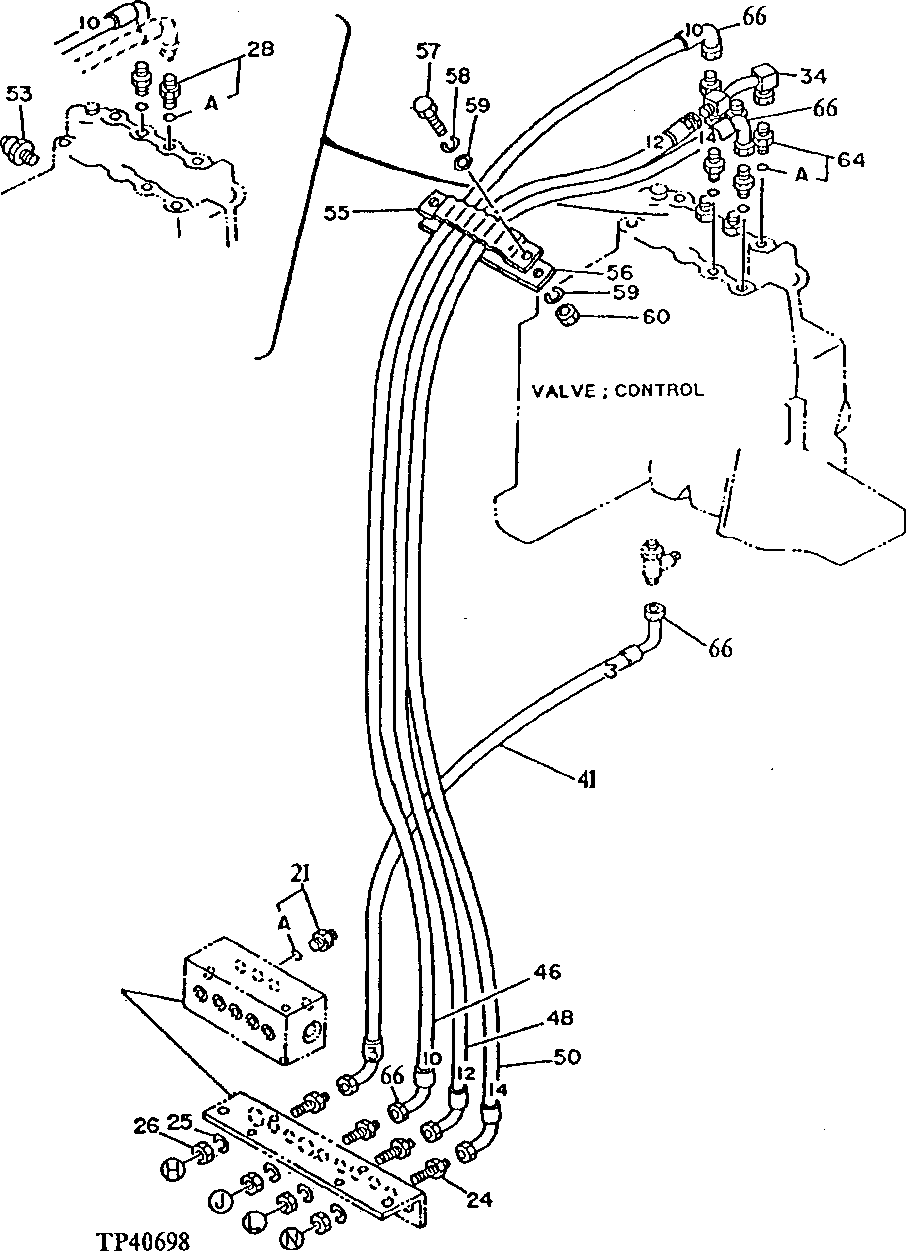

PILOT HYDRAULIC HOSES AND LINES (SERIAL NO. 001064- ) [02H21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
21	4200466	1	Adapter Fitting	(SUB FOR TH108320)
24	R27238	4	Fitting	-
25	12H294	4	Lock Washer	5/8"
26	14H888	4	Nut	9/16", (SUB FOR TH108439)
28	4202422	2	Adapter Fitting	(SUB FOR TH108440)
34	8038382	1	LINE	(SUB FOR TH108441)
41	AT50269	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT131334, ALONG WITH AE24616)
46	AT48717	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR 4208417, ALONG WITH (2) AE24616)
48	AT50269	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126414)
50	AT50269	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 016 MM (40") X 9/16", (SUB FOR 4208420, ALONG WITH AE24616)
53	4259333	1	Pressure Switch	(SUB FOR TH108413)
55	9727639	1	HOSE CLAMP	(SUB FOR TH108456)
56	9727637	1	PLATE	(SUB FOR TH108457)
57	19M7550	2	Cap Screw	M10 X 35
58	12M7066	2	Lock Washer	10 MM
59	24M7028	4	Washer	10.500 X 20 X 2 MM
60	14M7274	2	Nut	M10
64	4202422	3	Adapter Fitting	(SUB FOR TH108440)
66	AE24616	4	Elbow Fitting	-
21A	CH11570	1	O-Ring	-
28A	CH11570	1	O-Ring	-
64A	CH11570	1	O-Ring	-

PILOT HYDRAULIC HOSES AND LINES (SERIAL NO. 001064- ) [02H21]
