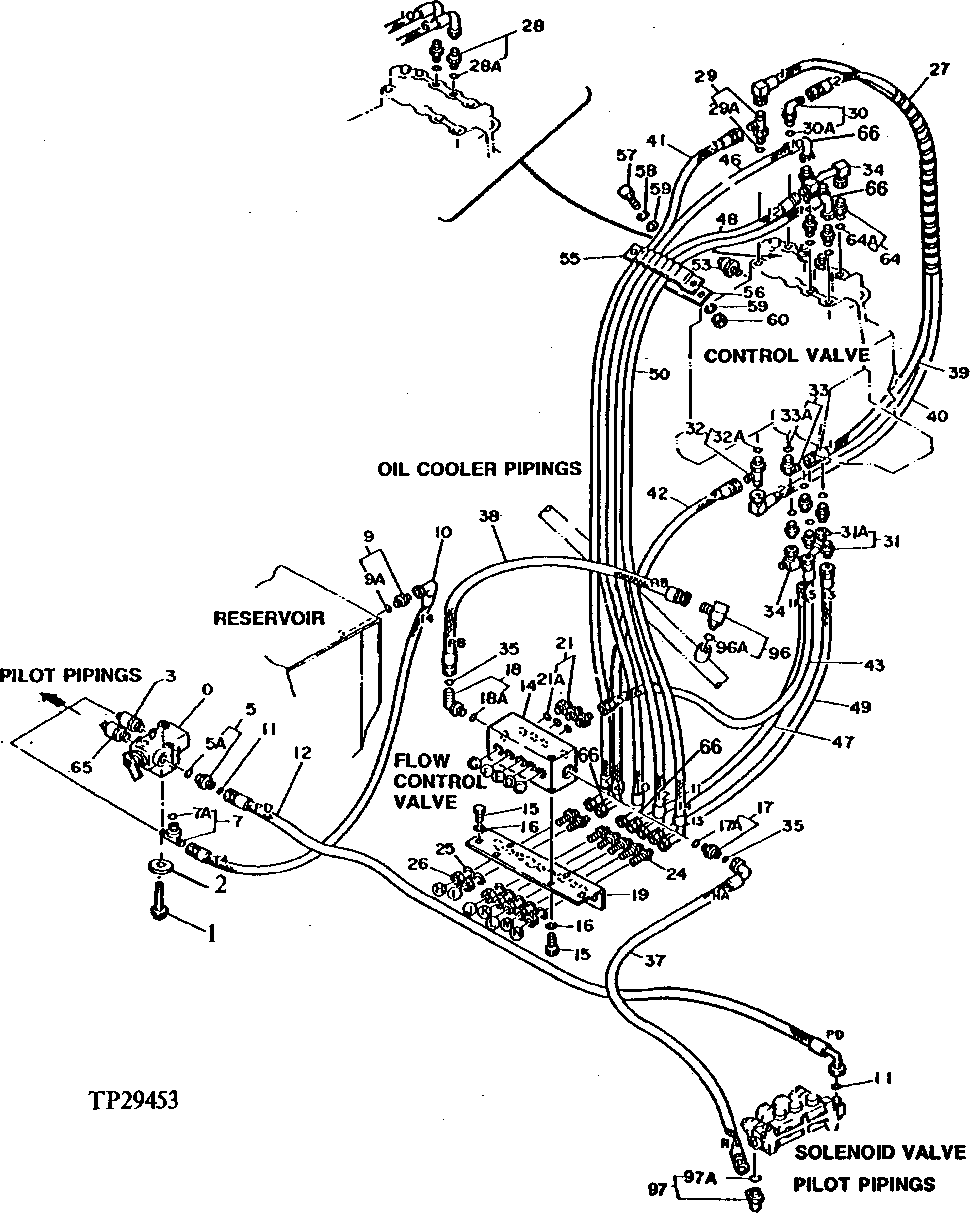

PILOT HYDRAULIC HOSES AND LINES (SERIAL NO. -001063) [02H17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
43	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16"
46	AT48717	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR 4208417, ALSO ORDER (2) AE24616)
47	AH108250	1	Hose	9/16" X 787 MM (31") X 9/16", (SUB FOR AT126413)
48	AT50269	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126414)
49	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16"
50	AT50269	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 016 MM (40") X 9/16", (SUB FOR 4208420, ALONG WITH AE24616)
53	4259333	1	Pressure Switch	(SUB FOR TH108413)
55	9727639	1	HOSE CLAMP	(SUB FOR TH108456)
56	9727637	1	PLATE	(SUB FOR TH108457)
57	19M7550	2	Cap Screw	M10 X 35
58	12M7066	2	Lock Washer	10 MM
59	24M7028	4	Washer	10.500 X 20 X 2 MM
60	14M7274	2	Nut	M10
64	4231115	3	ADAPTER FITTING	(SUB FOR AT126803)
65	4232404	1	FILTER	(SUB FOR AT126818)
66	AE24616	4	Elbow Fitting	-
96	4202112	1	Elbow Fitting	(SUB FOR TH108322)
97	A853344	1	Elbow Fitting	(SUB FOR TH108401, 4200580)
64A	CH11570	1	O-Ring	-
96A	CH11570	1	O-Ring	-
97A	4506418	1	O-Ring	(SUB FOR U46489)

PILOT HYDRAULIC HOSES AND LINES (SERIAL NO. -001063) [02H17]
