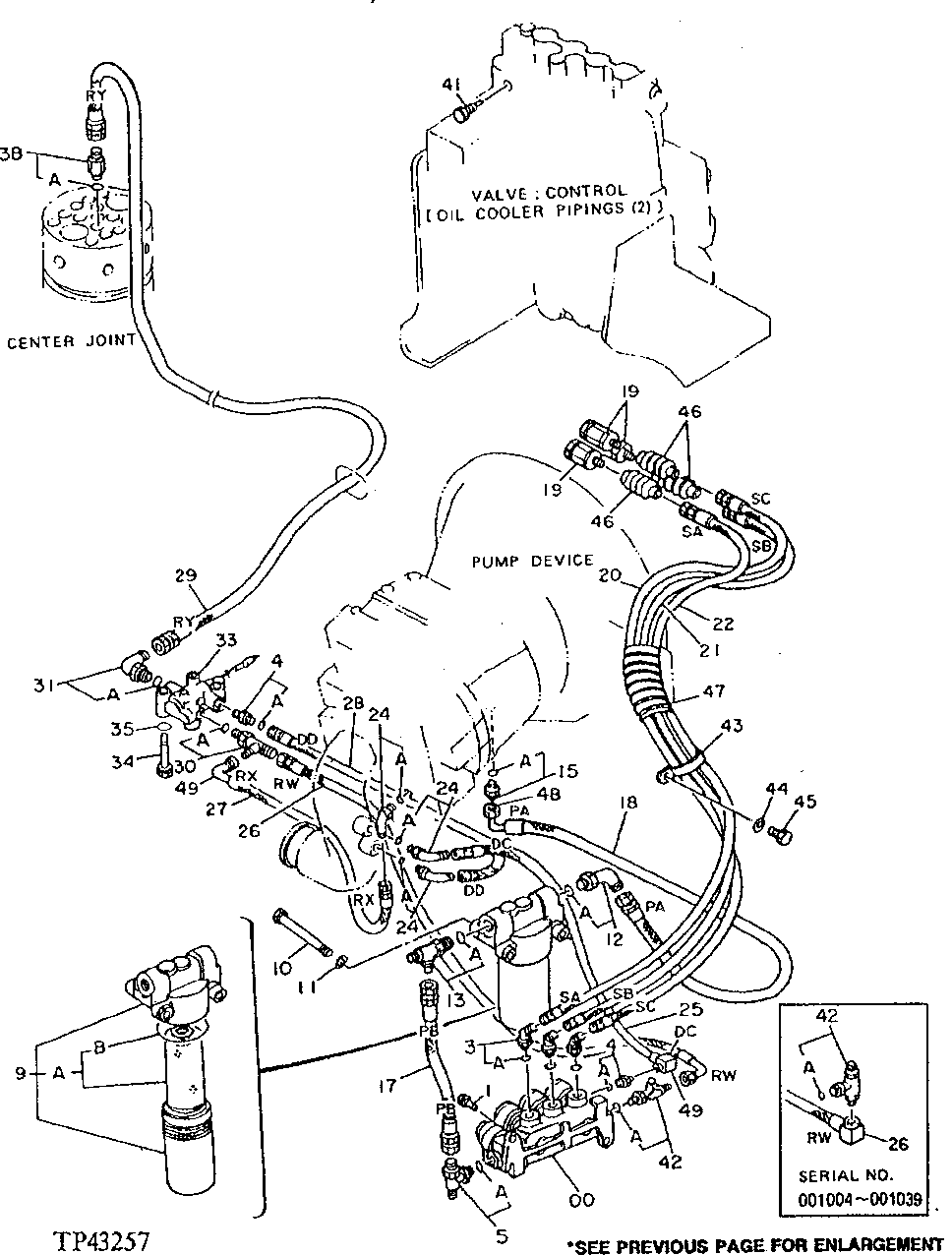

PILOT HYDRAULIC HOSES AND LINES [02H09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4196411	1	Solenoid Valve	(SUB FOR TH108398)
1	12M7066	2	Lock Washer	10 MM
1	19M7662	2	Cap Screw	M10 X 30
3	4193826	3	Elbow Fitting	(SUB FOR TH106467)
4	4200465	2	Adapter Fitting	(SUB FOR TH108328)
5	4208912	1	Tee Fitting	(SUB FOR AT126457)
9	4631976	1	Oil Filter	(SUB FOR TH108402, 4191300)
10	19M8761	2	Screw	M10 X 22, (SUB FOR TH102993)
11	12M7066	2	Lock Washer	10 MM
12	4200474	1	ELBOW FITTING	(SUB FOR AT126337)
13	4222016	1	Tee Fitting	(SUB FOR AT126748)
15	4200466	1	Adapter Fitting	(SUB FOR TH108320)
17	AR98204	1	Hydraulic Hose	(SUB FOR AT126392)
18	AT48428	1	Hydraulic Hose	ASLO ORDER AE24616
19	4187914	3	CYLINDER	(SUB FOR TH108409) (AUTO IDLE MODE ADAPTER AND ECONOMY MODE ADAPTER)
20	AH96002	1	Hydraulic Hose	(SUB FOR AT126864)
21	AH96002	1	Hydraulic Hose	(SUB FOR AT126863)
22	AH96002	1	Hydraulic Hose	(SUB FOR AT126862)
24	4154670	3	Elbow Fitting	(SUB FOR TH100951)
25	AR101376	1	Hydraulic Hose	(SUB FOR AT126393, ALONG WITH AH89069)
26	AT67065	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT126394)
27	AH97777	1	Hydraulic Hose	7/16" X 407 MM (16") X 7/16", (SUB FOR AT126399 ALONG WITH AH89069)
28	AE42718	1	Hydraulic Hose	(SUB FOR AT126400)
29	AH99310	1	Hydraulic Hose	(SUB FOR AT126401)
30	4219346	1	Tee Fitting	(SUB FOR AT126453) (SUB FOR AT132516)
31	AT318014	1	Elbow Fitting	(SUB FOR 4156434) (SUB FOR TH101930)
33	4200389	1	Solenoid Valve	(SUB FOR AT126335)
34	19M8402	2	Cap Screw	M8 X 65
35	12M7056	2	Lock Washer	8 MM, (SUB FOR 12M7065)
38	4200467	1	Adapter Fitting	(SUB FOR AT126497) (SUB FOR TH108417)
41	4209374	1	FITTING PLUG	(SUB FOR AT126470)
42	4253767	1	TEE FITTING	(SUB FOR AT134317)
42	-	1	Part 45	(SUB AT134317) ( AT126855 NO LONGER AVAILABLE)
43	AT121321	1	Hose Clamp	-
44	12M7066	1	Lock Washer	10 MM
45	19M7938	1	Cap Screw	M10 X 20
46	4208277	3	BOOT	(SUB FOR AT126398)
47	-	1	Part 53	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222) ( TH100996 NO LONGER AVAILABLE)
48	AE24616	1	Elbow Fitting	-
49	AH89069	2	Elbow Fitting	-
3A	M800650	1	Packing	-
4A	M800650	1	Packing	-
5A	CH11570	1	O-Ring	-
9A	AT186554	1	Filter Element	(SUB FOR TH108403 OR AT147821)
9B	AT264334	1	O-Ring	(SUB FOR TH100101) (USE WITH TH108403 FILTER ELEMENT)
9B	CH17154	1	Packing	(USE WITH AT147821 OR AT186554 FILTER ELEMENT)
12A	4506418	1	O-Ring	(SUB FOR U46489)
13A	4506418	1	O-Ring	(SUB FOR U46489)
15A	CH11570	1	O-Ring	-
24A	M800650	1	Packing	-
30A	M800650	1	Packing	-
31A	M800650	1	Packing	-
38A	M800650	1	Packing	-
42A	4506418	1	O-Ring	(USE WITH AT134317) (SUB FOR U46489)
42A	CH11570	1	O-Ring	(USE WITH AT126855)
