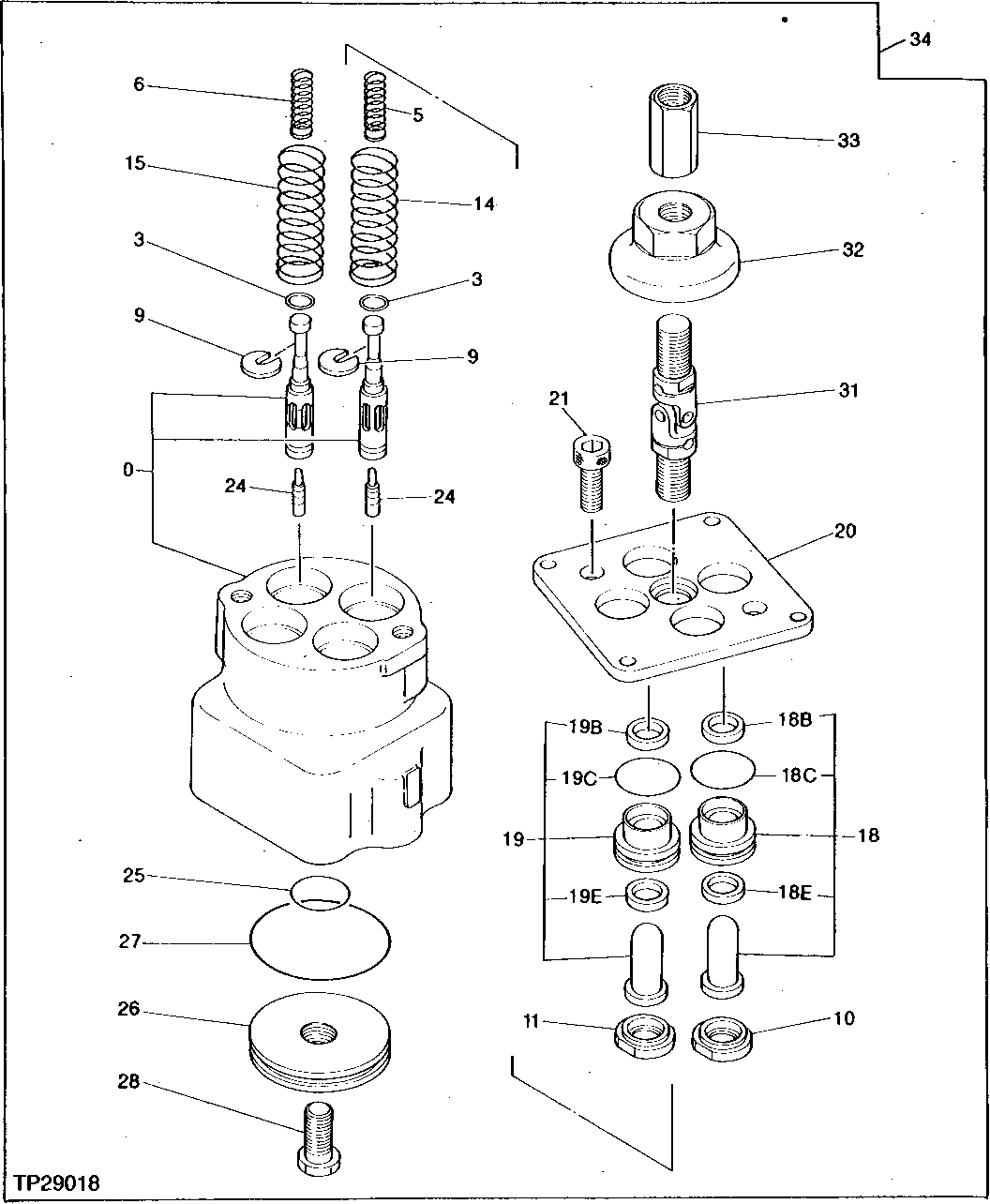

PILOT CONTROL VALVE (DIGGING FUNCTIONS) (VALVE SERIAL NO. -003068) [02J13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	( TH109211 NO LONGER AVAILABLE)
3	4173208	20	Shim	(SUB FOR TH109217)
5	4201915	2	Spring	(SUB FOR TH109212)
6	4166686	2	Compression Spring	(SUB FOR TH109213)
9	4177777	4	Spacer	(SUB FOR TH109216)
10	4179257	2	Guide	(SUB FOR TH109219)
11	4177896	2	Guide	(SUB FOR TH109218)
14	4210793	2	COMPRESSION SPRING	(SUB FOR AT134060)
15	4210794	2	COMPRESSION SPRING	(SUB FOR AT134061)
18	-	2	Part 10	(SUB (2) 9104359, (2) 9104360 AND 4284175)
18	-	2	Part 11	(SUB (2) 9104359, (2) 9104360 AND 4284175) ( 9089809 NO LONGER AVAILABLE)
19	-	2	Part 16	(SUB (2) 9104359, (2) 9104360 AND 4284175) ( 9089808 NO LONGER AVAILABLE)
19	-	2	Part 15	(SUB (2) 9104359, (2) 9104360 AND 4284175)
20	-	1	Part 20	( 4184930 NO LONGER AVAILABLE) (SUB 4284175, ALONG WITH (2) 9104359 AND (2) 9104360)
21	19M8440	2	Screw	M10 X 25
24	4184929	4	Piston	(SUB FOR TH109228)
25	CH11562	1	O-Ring	-
26	4184954	1	Plate	(SUB FOR TH109229)
27	CH11571	1	Packing	-
28	19M8168	1	Screw	M12 X 25
31	4285209	1	Universal Joint	(SUB FOR TH109230)
32	4184931	1	CAM	(SUB FOR TH109231)
33	4182067	1	Jointer	(SUB FOR TH109232)
34	AT189840	1	Hyd/Pilot Cntl Valve Reman	(USE AT131277 IF AVAILABLE) ( AT127179 NO LONGER AVAILABLE) (SUB FOR AT134293 OR AT131277)
18B	4240150	1	Seal	(SUB FOR TH111960)
18C	U46166	1	O-Ring	-
18E	4240151	1	Seal	(SUB FOR TH109224)
19B	4240150	1	Seal	(SUB FOR TH111960)
19C	U46166	1	O-Ring	-
19E	4240151	1	Seal	(SUB FOR TH109224)

PILOT CONTROL VALVE (DIGGING FUNCTIONS) (VALVE SERIAL NO. -003068) [02J13]
