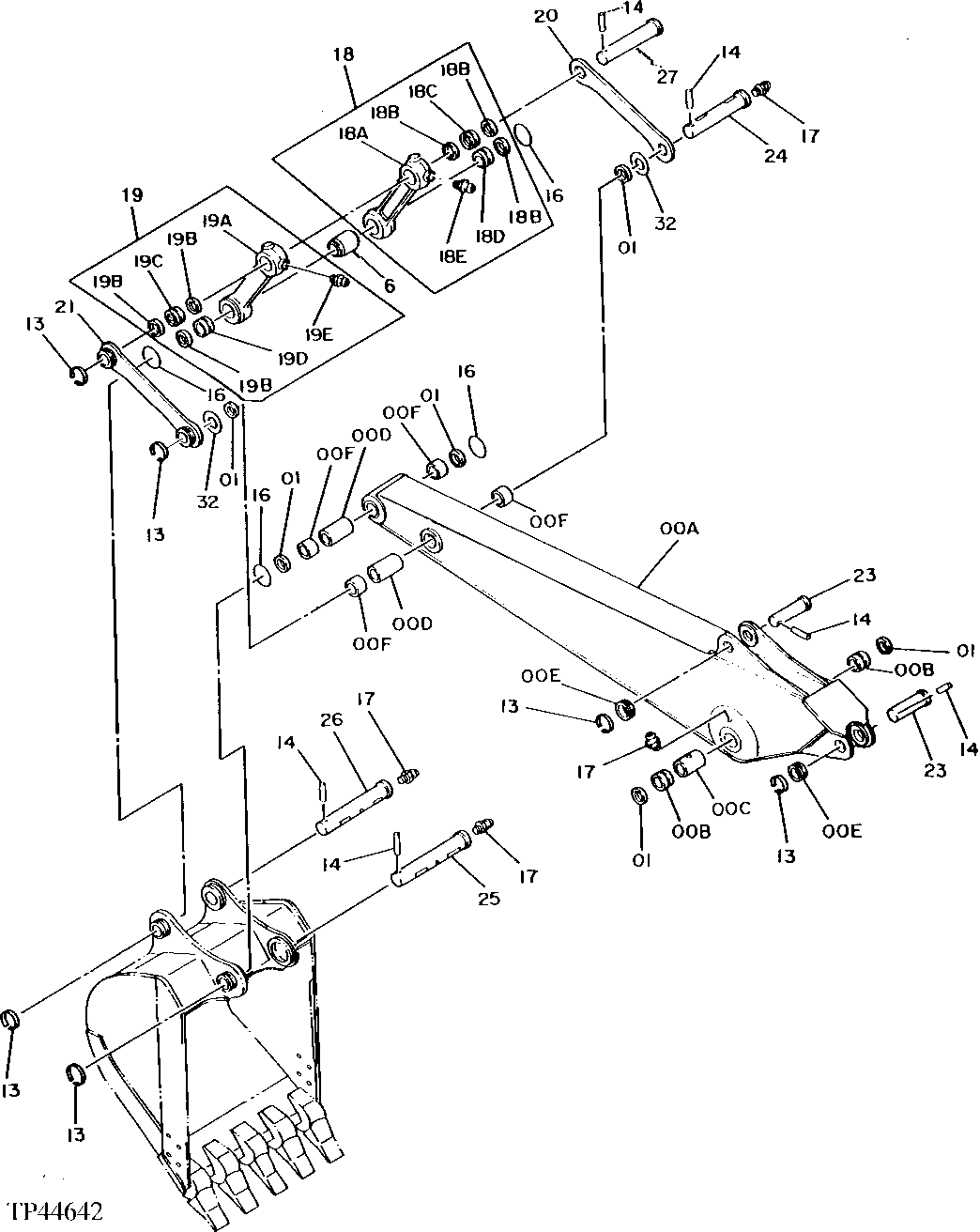

LONG ARM (2.25 M - 7 FEET 5 INCH) [02G09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TH100374	6	Seal	-
6	4065885	1	SPACER	(SUB FOR TH100376)
13	4065688	6	Retainer	(SUB FOR TH100624)
14	4065689	6	Pin Fastener	(SUB FOR TH100625)
16	TH100380	4	O-RING	-
17	TH100074	5	Lubrication Fitting	-
18	8038217	1	LINK	(SUB FOR AT127033)
19	8038218	1	LINK	(SUB FOR AT127034)
20	4199119	1	LINK	(SUB FOR AT126331)
21	9727188	1	LINK	(SUB FOR AT127211)
23	3044367	2	Pin	(SUB FOR TH108939) (SUB FOR AT134035)
24	TH108940	1	Pin	-
25	AT318059	1	Pin Fastener	(SUB FOR 3084540) (ALSO ORDER TH100074) (SUB FOR TH108941)
26	P68886	1	Pin	(ALSO ORDER TH100074) (SUB FOR TH108942)
27	P66990	1	Shear Pin	(SUB FOR TH108943)
32	4075357	2	Washer	(SUB FOR TH108944)
0A	-	1	Part 1	( AT126051 NO LONGER AVAILABLE)
0B	4188449	2	BUSHING	(SUB FOR AT126275)
0C	4128972	1	SPACER	(SUB FOR TH100370)
0D	4124575	2	Spacer	(SUB FOR TH100369)
0E	TH108649	2	Bushing	-
0F	AT122209	4	Bushing	(SUB FOR TH108931)
18A	-	1	Part 14	(SUB AT127033)
18B	TH100374	3	Seal	-
18C	4196557	1	BUSHING	(SUB FOR TH108934)
18D	AT122209	1	Bushing	(SUB FOR TH108931)
18E	TH100074	1	Lubrication Fitting	-
19A	-	1	Part 20	(SUB AT127034)
19B	TH100374	3	Seal	-
19C	4196557	1	BUSHING	(SUB FOR TH108934)
19D	AT122209	1	Bushing	(SUB FOR TH108931)
19E	TH100074	1	Lubrication Fitting	-

LONG ARM (2.25 M - 7 FEET 5 INCH) [02G09]
