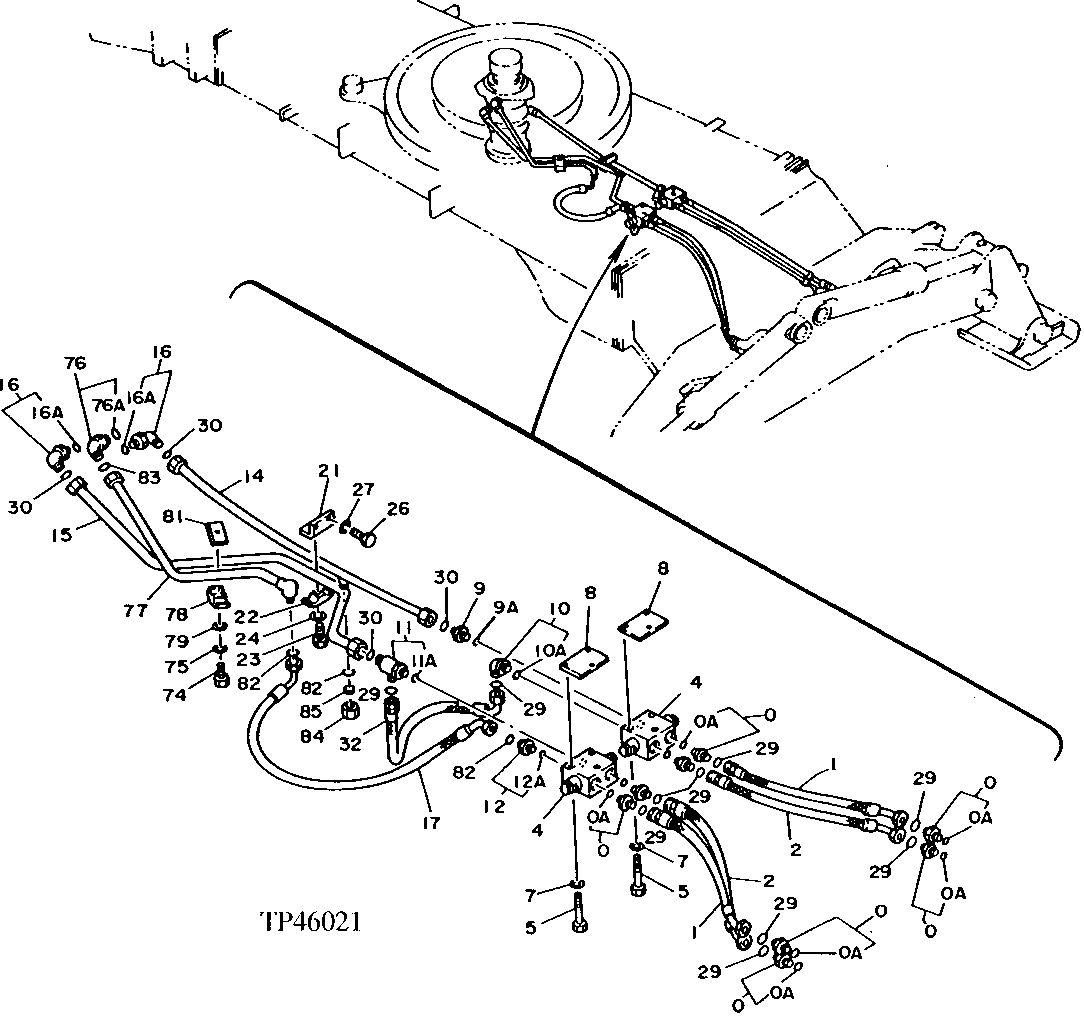

INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES (UNDERCARRIAGE) [02J05]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4189602	8	Fitting	(SUB FOR TH108350)
1	AT126692	2	HYDRAULIC HOSE - FABRICATE	-
2	AT126691	2	Hydraulic Hose	13/16" X 750 MM (29-1/2") X 13/16"
4	4195894	2	CHECK VALVE	(SUB FOR AT126303)
5	19M8403	6	Cap Screw	M8 X 75
7	12M7056	6	Lock Washer	8 MM, (SUB FOR 12M7065)
8	4218501	2	PLATE	(SUB FOR AT126715)
9	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH110204 OR TH101006, ALONG WITH U46489)
10	A853344	1	Elbow Fitting	(SUB FOR TH108401, 4200580)
11	4218502	1	TEE FITTING	(SUB FOR AT126716)
12	4189602	1	Fitting	(SUB FOR TH108350)
14	8041230	1	OIL LINE	(SUB FOR AT127084)
15	8041229	1	OIL LINE	(SUB FOR AT127083)
16	4202404	2	ELBOW FITTING	(SUB FOR TH109577)
17	AT126693	1	HYDRAULIC HOSE - FABRICATE	13/16" X 750 MM (29-1/2") X 13/16"
21	4218281	1	ANGLE	(SUB FOR AT126699)
22	4189858	1	Clamp	(SUB FOR TH108333)
23	19M7496	1	Cap Screw	M12 X 45, (SUB FOR AT122612)
24	12H301	1	Lock Washer	1/2"
26	19M7402	2	Cap Screw	M10 X 25
27	12M7066	2	Lock Washer	10 MM
29	T77857	10	O-Ring	(SUB FOR TH108323)
30	T77858	4	O-Ring	(SUB FOR TH108349)
32	AT134091	1	HYDRAULIC HOSE - FABRICATE	13/16" X 700 MM (27-1/2") X 13/16"
74	19M7572	1	Cap Screw	M10 X 45
75	12M7066	1	Lock Washer	10 MM
76	4202404	1	ELBOW FITTING	(SUB FOR TH109577)
77	8043256	1	OIL LINE	(SUB FOR AT134283)
78	4189858	1	Clamp	(SUB FOR TH108333)
79	24M7028	1	Washer	10.500 X 20 X 2 MM
81	4137297	1	STRAP	(SUB FOR AT134046)
82	T77857	3	O-Ring	(SUB FOR TH108323)
83	T77858	1	O-Ring	(SUB FOR TH108349)
84	4189092	1	Tube Nut	(SUB FOR AT134047)
85	4189093	1	Cap	(SUB FOR AT134048)
0A	4506418	1	O-Ring	(SUB FOR U46489)
9A	4506418	1	O-Ring	(SUB FOR U46489)
10A	4506418	1	O-Ring	(SUB FOR U46489)
11A	4506418	1	O-Ring	(SUB FOR U46489)
12A	4506418	1	O-Ring	(SUB FOR U46489)
16A	4506418	1	O-Ring	(SUB FOR U46489)
76A	4506418	1	O-Ring	(SUB FOR U46489)

INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES (UNDERCARRIAGE) [02J05]
