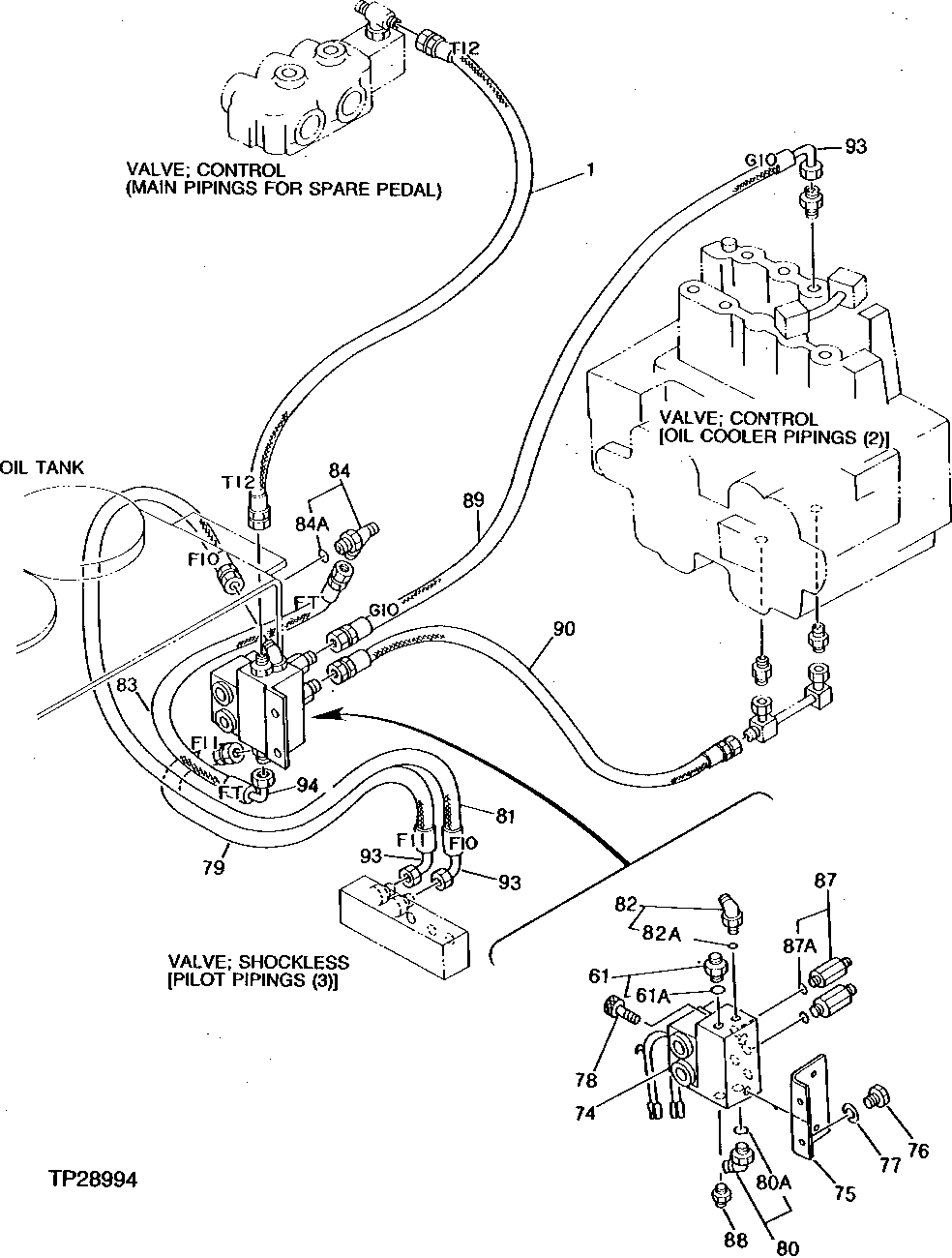

INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES (MAIN FRAME) [02J03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AH97777	1	Hydraulic Hose	7/16" X 407 MM (16") X 7/16"
61	4200465	1	Adapter Fitting	(SUB FOR TH108328)
74	4199095	1	SOLENOID VALVE	(SUB FOR AT126330)
75	4217247	1	ANGLE	(SUB FOR AT126673)
76	19M7938	2	Cap Screw	M10 X 20
77	12M7066	2	Lock Washer	10 MM
78	19M8506	2	Screw	M8 X 60
79	AT37543	1	HYDRAULIC HOSE - FABRICATE	9/16" X 483 MM (19") X 9/16", (SUB FOR AT126676, ALONG WITH AE24616)
80	4200472	1	Elbow Fitting	(SUB FOR TH111301)
81	AH108250	1	Hose	9/16" X 787 MM (31") X 9/16", (SUB FOR 4217324 ALONG WITH AE24616)
82	AT318014	1	Elbow Fitting	(SUB FOR 4156434) (SUB FOR TH101930)
83	4203161	1	Hydraulic Hose	(SUB FOR TH108352) (SUB FOR AT126677, ALONG WITH AH89069)
84	4208909	1	Tee Fitting	(SUB FOR AT126454)
87	4223934	2	Adapter Fitting	(SUB FOR AT134092)
88	X4-4FTX-S	1	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
89	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR AT134126, ALONG WITH (2) AE24616)
90	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR AT134087)
93	AE24616	4	Elbow Fitting	-
94	AH89069	1	Elbow Fitting	-
61A	M800650	1	Packing	-
80A	M800650	1	Packing	-
82A	M800650	1	Packing	-
84A	CH11570	1	O-Ring	-
87A	M800650	1	Packing	-
