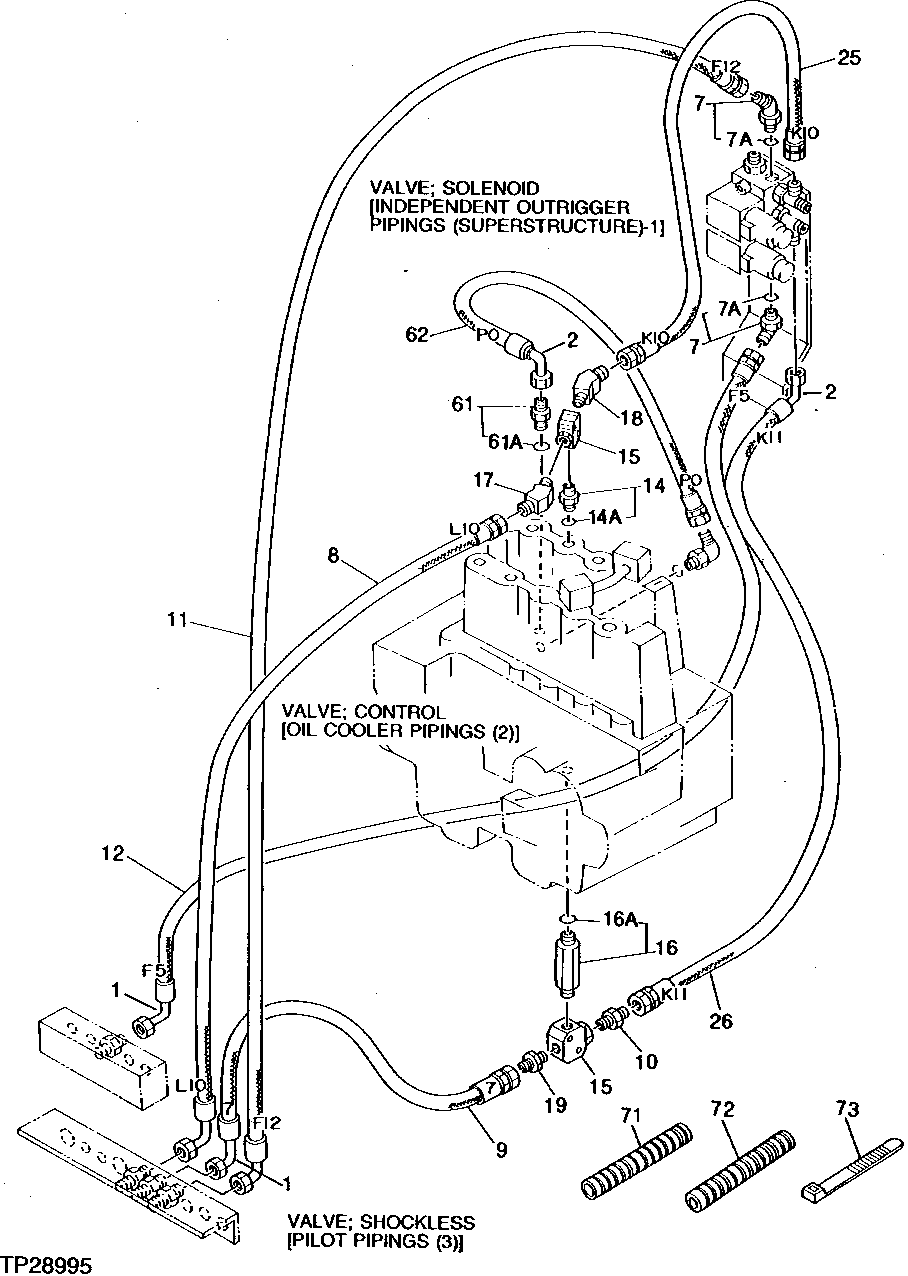

INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES (MAIN FRAME) [02I23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AE24616	2	Elbow Fitting	-
2	AH89069	2	Elbow Fitting	-
7	4200472	2	Elbow Fitting	(SUB FOR TH111301)
8	AT134113	1	HYDRAULIC HOSE - FABRICATE	-
9	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR 4208416, ALSO ORDER AE24616)
10	X4-4FTX-S	1	Adapter Fitting	(SUB FOR TH100963)
11	AT72803	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 499 MM (59") X 9/16", (SUB FOR AT134101)
12	AT48717	1	HYDRAULIC HOSE - FABRICATE	9/16" X 1 131 MM (44-1/2") X 9/16", (SUB FOR AT134102, ALONG WITH AE24616)
14	4219344	1	ADAPTER FITTING	(SUB FOR AT126727)
15	4219700	2	FLOW CONTROL HYD. VALVE	(SUB FOR AT126744)
16	4230003	1	ADAPTER FITTING	(SUB FOR AT134114)
17	4219342	1	Elbow Fitting	(SUB FOR AT126725)
18	4154655	1	Elbow Fitting	(SUB FOR TH101056)
19	4215648	1	Adapter Fitting	(SUB FOR AT126652)
25	AT126482	1	Hydraulic Hose	7/16" X 500 MM (19-3/4") X 7/16", (SUB FOR AT134103)
26	AE42718	1	Hydraulic Hose	7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR AT134104, ALONG WITH AH89069)
61	4200465	1	Adapter Fitting	(SUB FOR TH108328)
62	AE42718	1	Hydraulic Hose	7/16" X 600 MM (23-1/2") X 7/16", (SUB FOR AT134107, ALONG WITH AH89069)
71	-	8	Part 23	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222) ( TH100996 NO LONGER AVAILABLE)
72	E90991	1	Hose Guard	(SUB FOR TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)
73	H77698	10	Tie Band	-
7A	M800650	1	Packing	-
14A	CH11570	1	O-Ring	-
16A	CH11570	1	O-Ring	-
61A	M800650	1	Packing	-

INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES (MAIN FRAME) [02I23]
