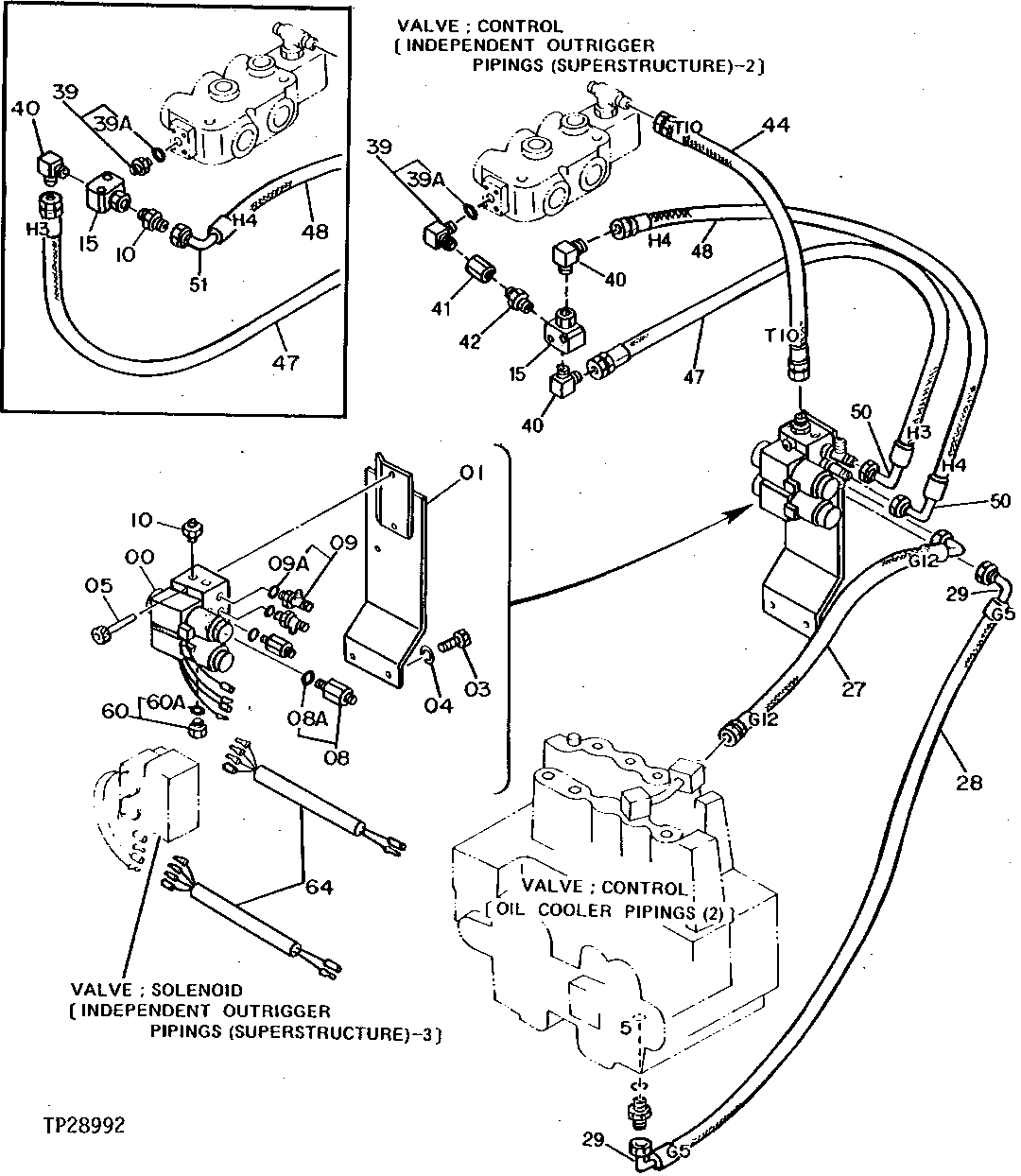

INDEPENDENT STABILIZER HYDRAULIC HOSES AND LINES (MAIN FRAME) [02I21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4199095	1	SOLENOID VALVE	(SUB FOR AT126330)
1	9731161	1	BRACKET	(SUB FOR AT134300)
3	19M8011	2	Cap Screw	M12 X 30
4	12H301	2	Lock Washer	1/2"
5	19M8506	2	Screw	M8 X 60
8	4223934	2	Adapter Fitting	(SUB FOR AT134092)
9	4203171	2	Tee Fitting	(SUB FOR TH110578)
10	X4-4FTX-S	2	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
10	X4-4FTX-S	1	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
15	4219700	1	FLOW CONTROL HYD. VALVE	(SUB FOR AT126744)
27	AT67065	1	HYDRAULIC HOSE - FABRICATE	9/16" X 508 MM (20") X 9/16", (SUB FOR AT134112)
28	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR AT134116, ALONG WITH (2) AH89069)
29	AH89069	2	Elbow Fitting	-
39	4174585	1	ADAPTER FITTING	(SUB FOR AT130826)
39	4152200	1	ADAPTER FITTING	(SUB FOR AT126210)
40	4154656	1	Elbow Fitting	(SUB FOR TH101588)
40	4154656	2	Elbow Fitting	(SUB FOR TH101588)
41	4225316	1	HYD ACTUATED CONTROL VALVE	(SUB FOR AT130827)
42	T116057	1	Fitting	(SUB FOR TH101997)
44	AH97777	1	Hydraulic Hose	7/16" X 407 MM (16") X 7/16", (SUB FOR AT134105)
47	AT126850	1	Hydraulic Hose	(SUB FOR AT134111, ALONG WITH AH89069)
47	AE42718	1	Hydraulic Hose	-
48	AT132513	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR 4259568, ALONG WITH (2) AH89069)
48	AE42718	1	Hydraulic Hose	-
50	AH89069	2	Elbow Fitting	-
51	AH89069	1	Elbow Fitting	-
60	AT318013	1	Drain Plug	(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)
64	4232458	1	WIRING HARNESS	(SUB FOR AT134124)
8A	M800650	1	Packing	-
9A	M800650	1	Packing	-
39A	M800650	1	Packing	-
60A	M800650	1	Packing	-
