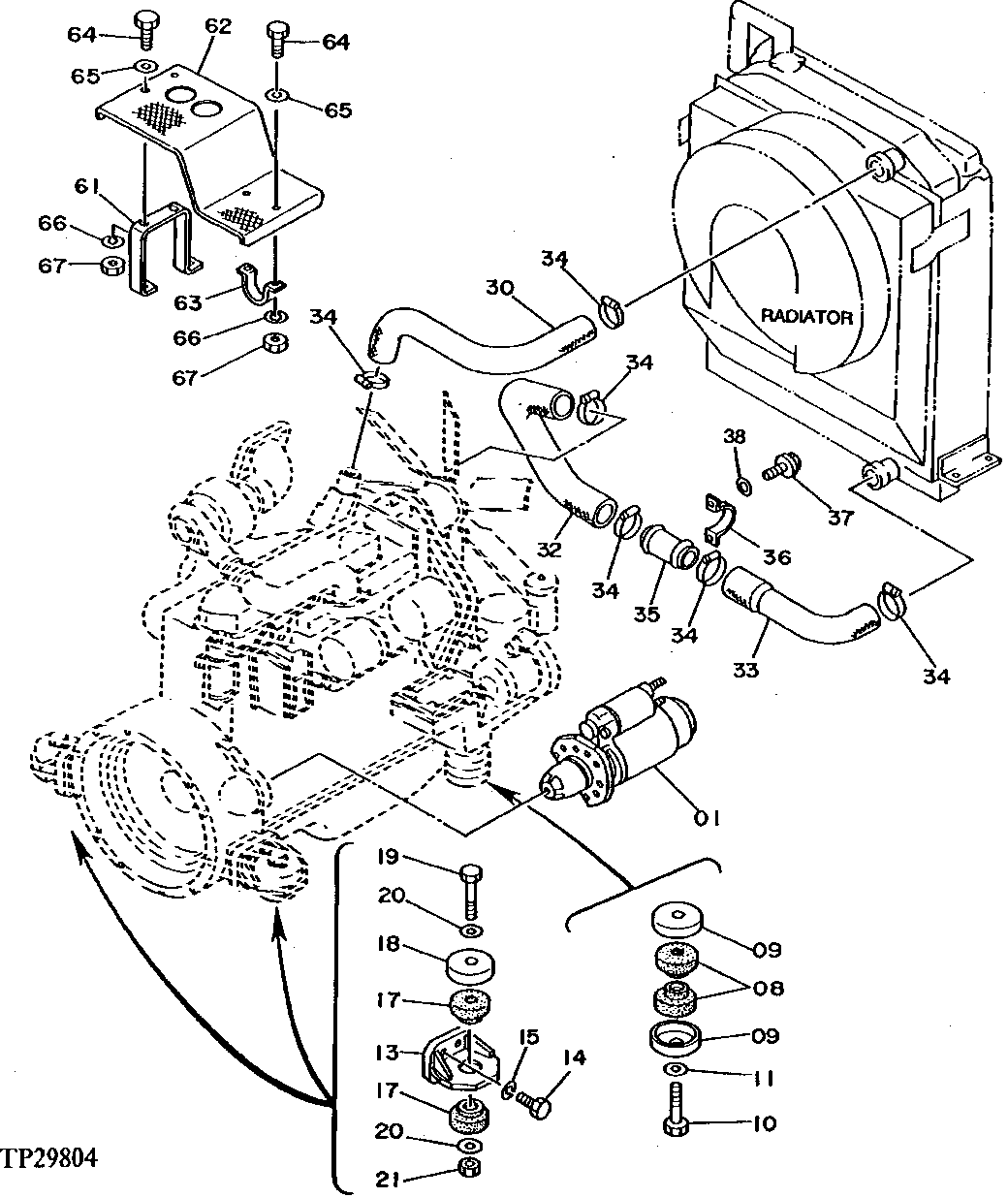

ENGINE MOUNTS, RADIATOR HOSES AND STEP [01D04]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE70961	1	Starter Motor Kit	(SUB FOR RE65173, RE15718 AND RE43422) (ALSO ORDER T84410 AND T84411)
2	T84410	1	Label	(NOT ILLUSTRATED)
3	T84411	1	Label	(NOT ILLUSTRATED)
8	4155171	4	ISOLATOR	(SUB FOR TH100887)
9	4189018	4	Retainer	(SUB FOR TH109410)
10	19M8333	2	Cap Screw	M18 X 110, (SUB FOR TH103639)
11	4114406	2	Washer	(SUB FOR TH100891)
13	8028462	2	BRACKET	(SUB FOR TH100892)
14	19H2993	8	Cap Screw	1/2" X 1-1/2"
15	12H301	8	Lock Washer	1/2"
17	4155170	4	ISOLATOR	(SUB FOR TH100894)
18	4189018	2	Retainer	(SUB FOR TH109410)
19	19M8970	2	Cap Screw	M18 X 120, (SUB FOR J931804)
20	4114406	4	Washer	(SUB FOR TH100891)
21	J951018	2	Nut	(SUB FOR TH100890)
30	3044984	1	Hose	(SUB FOR AT126176)
32	3044305	1	Hose	(SUB FOR AT126172)
33	3034188	1	HOSE	(SUB FOR TH103644)
34	TY22472	6	Clamp	(SUB FOR AT145651 OR AR21999)
35	4183087	1	Line	(SUB FOR TH103645)
36	4053865	1	Clamp	(SUB FOR TH103646)
37	19M7662	2	Cap Screw	M10 X 30
38	12M7066	2	Lock Washer	10 MM
61	4191729	1	Bracket	(SUB FOR TH105595)
62	3035975	1	Step	(SUB FOR TH105596)
63	4053865	1	Clamp	(SUB FOR TH103646)
64	19M7402	4	Cap Screw	M10 X 25
65	24M7101	4	Washer	11 X 34 X 3 MM, (SUB FOR TH101289)
66	12M7066	4	Lock Washer	10 MM
67	14M7274	4	Nut	M10
