COMPRESSED AIR FOOT VALVE, CONTROL VALVE, HOSES AND LINES [02E13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T115957	1	ADAPTER FITTING	(SUB FOR TH101034)
24	X4-4FTX-S	1	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
25	4218694	1	WIRING HARNESS	(SUB FOR AT126718)
26	4209197	1	ADAPTER FITTING	(SUB FOR AT126465)
27	12H301	1	Lock Washer	1/2"
28	14H1047	1	Nut	7/16", (SUB FOR AT126466)
39	4182316	1	HYD ACTUATED CONTROL VALVE	(SUB FOR AT126262)
40	X4-4FTX-S	1	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
42	4154656	2	Elbow Fitting	(SUB FOR TH101588)
45	4086377	1	PRESSURE SWITCH	(SUB FOR TH103992)
53	AE42282	1	HYDRAULIC HOSE	(SUB FOR AT126443)
56	AT131891	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT126689)
68	M800462	1	Plug	(SUB FOR TH101049)
70	AT48434	1	Hydraulic Hose	(SUB FOR AT126479)
71	4250096	1	HYDRAULIC HOSE	(SUB FOR AT134331)
72	AE42280	1	Hydraulic Hose	(SUB FOR AT126481)
73	4209930	2	ADAPTER FITTING	(SUB FOR AT126496)
74	4200467	1	Adapter Fitting	(SUB FOR AT126497) (SUB FOR TH108417)
79	4154656	1	Elbow Fitting	(SUB FOR TH101588)
82	21M7246	2	Screw	M6 X 16
83	24M7054	2	Washer	6.400 X 12 X 1.600 MM
84	H77698	3	Tie Band	-
86	4252524	1	BRACKET	(SUB FOR AT134332)
87	19M7938	2	Cap Screw	M10 X 20
88	4453817	1	SOLENOID VALVE	(SUB FOR TH103987)
89	19M7299	2	Cap Screw	M6 X 45
90	4086599	1	TEE FITTING	(SUB FOR AT134333)
91	X4-4FTX-S	1	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
92	4154656	1	Elbow Fitting	(SUB FOR TH101588)
93	4168366	1	BLEED VALVE	(SUB FOR TH103990)
94	94-1601	1	PIPE BUSHING	(SUB FOR TH103472)
95	4250095	1	HYDRAULIC HOSE	(SUB FOR AT134334)
73A	M800650	1	Packing	-
74A	M800650	1	Packing	-

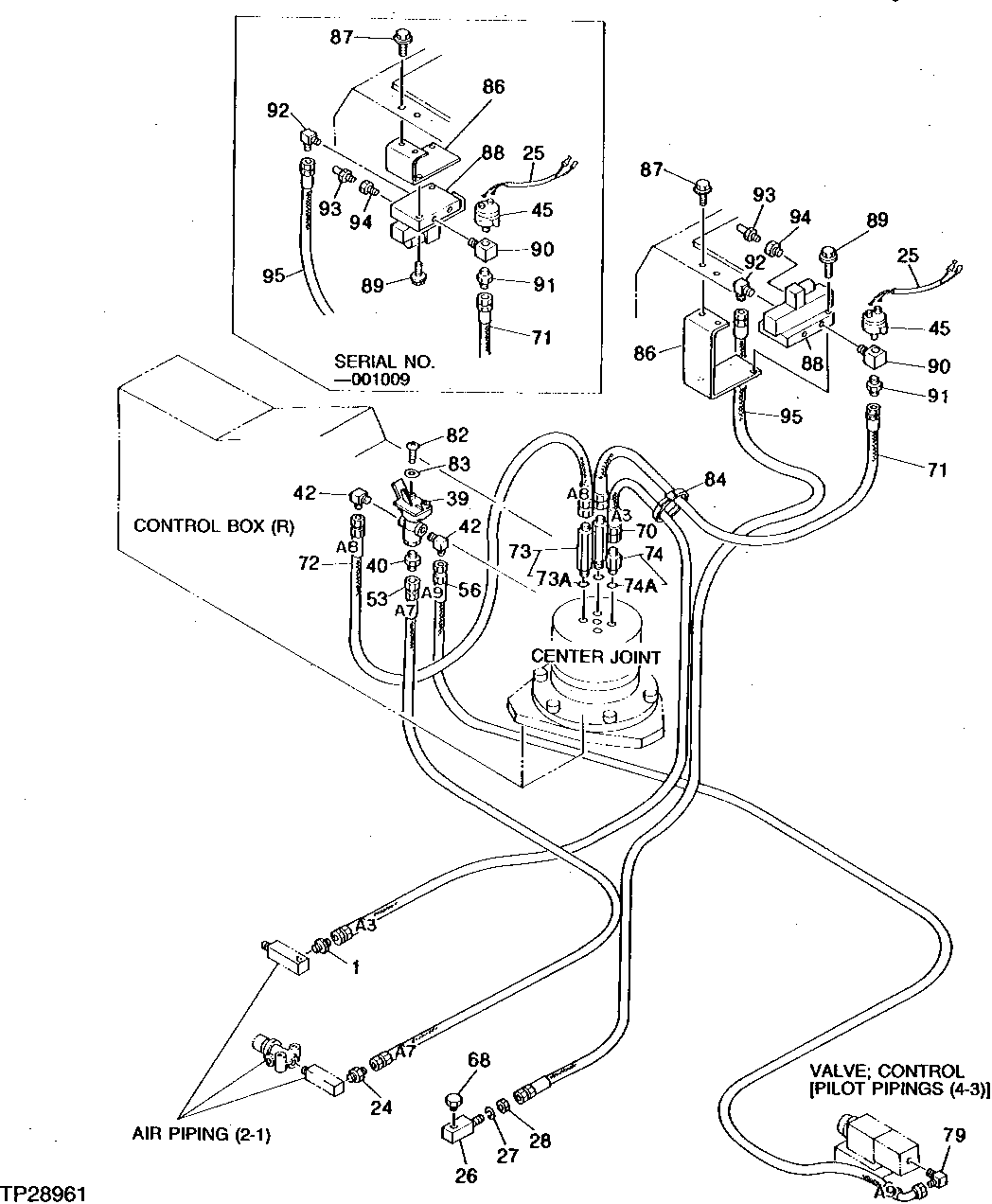

COMPRESSED AIR FOOT VALVE, CONTROL VALVE, HOSES AND LINES [02E13]
