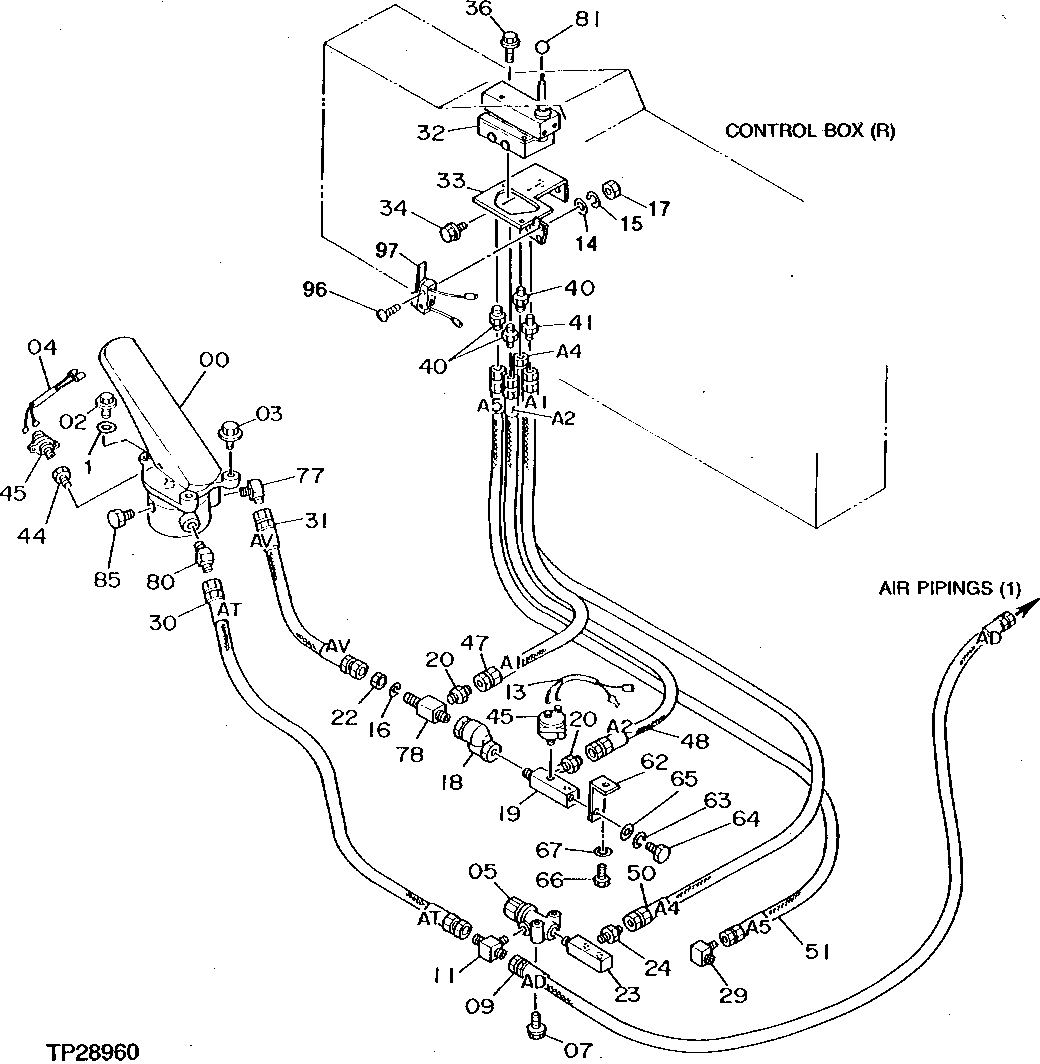

COMPRESSED AIR FOOT VALVE, CONTROL VALVE, HOSES AND LINES [02E11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4086378	1	FLOW CONTROL HYD. VALVE	(SUB FOR TH103991)
1	12M7066	1	Lock Washer	10 MM
2	19M7662	1	Cap Screw	M10 X 30
3	19M7358	2	Cap Screw	M10 X 40
4	4218695	1	WIRING HARNESS	(SUB FOR AT126719)
5	4123646	1	FLOW CONTROL HYD. VALVE	(SUB FOR TH103994)
7	19M7299	2	Cap Screw	M6 X 45
9	AE42000	1	Hydraulic Hose	(SUB FOR AT126438)
11	4211164	1	TEE FITTING	(SUB FOR AT126510)
13	4218693	1	WIRING HARNESS	(SUB FOR AT126717)
14	24M7117	2	Washer	4.300 X 9 X 0.800 MM
15	12H315	2	Lock Washer	(SUB FOR 12M7063)
16	12H294	1	Lock Washer	5/8"
17	14M7139	2	Nut	M4, (SUB FOR 14M7100)
18	986953	1	CHECK VALVE	(SUB FOR TH102095)
19	4195752	1	ADAPTER FITTING	(SUB FOR AT126297)
20	X4-4FTX-S	2	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
22	14H888	1	Nut	9/16", (SUB FOR TH108439)
23	4195753	1	ADAPTER FITTING	(SUB FOR AT126298)
24	X4-4FTX-S	1	Adapter Fitting	(SUB FOR X0103-4-4) (SUB FOR TH100963)
29	4154656	1	Elbow Fitting	(SUB FOR TH101588)
30	AT57860	1	Hydraulic Hose	(SUB FOR AT126500)
31	AT48428	1	Hydraulic Hose	(SUB FOR AT126499)
32	4251653	1	HYD ACTUATED CONTROL VALVE	(SUB FOR AT134329)
33	8046439	1	BRACKET	(SUB FOR AT134330)
34	12M7056	2	Lock Washer	(SUB FOR AT133601) (SUB 19M7881 AND 12M7065)
34	12M7056	2	Lock Washer	8 MM, (USE WITH 19M7881) (SUB FOR 12M7065)
34	19M7881	2	Screw	M8 X 20
36	19M7299	2	Cap Screw	M6 X 45
40	X4-4FTX-S	3	Adapter Fitting	(SUB FOR TH100963)
41	4156430	1	ADAPTER FITTING	(SUB FOR TH101937)
44	94-1601	1	PIPE BUSHING	(SUB FOR TH103472)
45	4086377	2	PRESSURE SWITCH	(SUB FOR TH103992)
47	AT132513	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR AT126439)
48	AT126850	1	Hydraulic Hose	(SUB FOR AT126440)
50	AH96002	1	Hydraulic Hose	(SUB FOR AT126441)
51	AH96002	1	Hydraulic Hose	(SUB FOR AT126442)
62	4208620	1	ANGLE	(SUB FOR AT126448)
63	12M7056	1	Lock Washer	8 MM, (SUB FOR 12M7065)
64	19M7932	1	Cap Screw	M8 X 16
65	24M7055	1	Washer	8.400 X 16 X 1.600 MM
66	19M8324	1	Cap Screw	M10 X 16
67	12M7066	1	Lock Washer	10 MM
77	T115889	1	ELBOW FITTING	(SUB FOR TH101035)
78	4211165	1	ADAPTER FITTING	(SUB FOR AT126511)
80	4157919	1	Elbow Fitting	(SUB FOR TH104011)
81	4248745	1	GRIP	(SUB FOR AT134137)
85	94-2012	1	Fitting Plug	(SUB FOR TH100653)
96	21M7369	2	Screw	M4 X 25
97	4180220	1	SWITCH	(SUB FOR AT126785) (SUB FOR AT126258)
