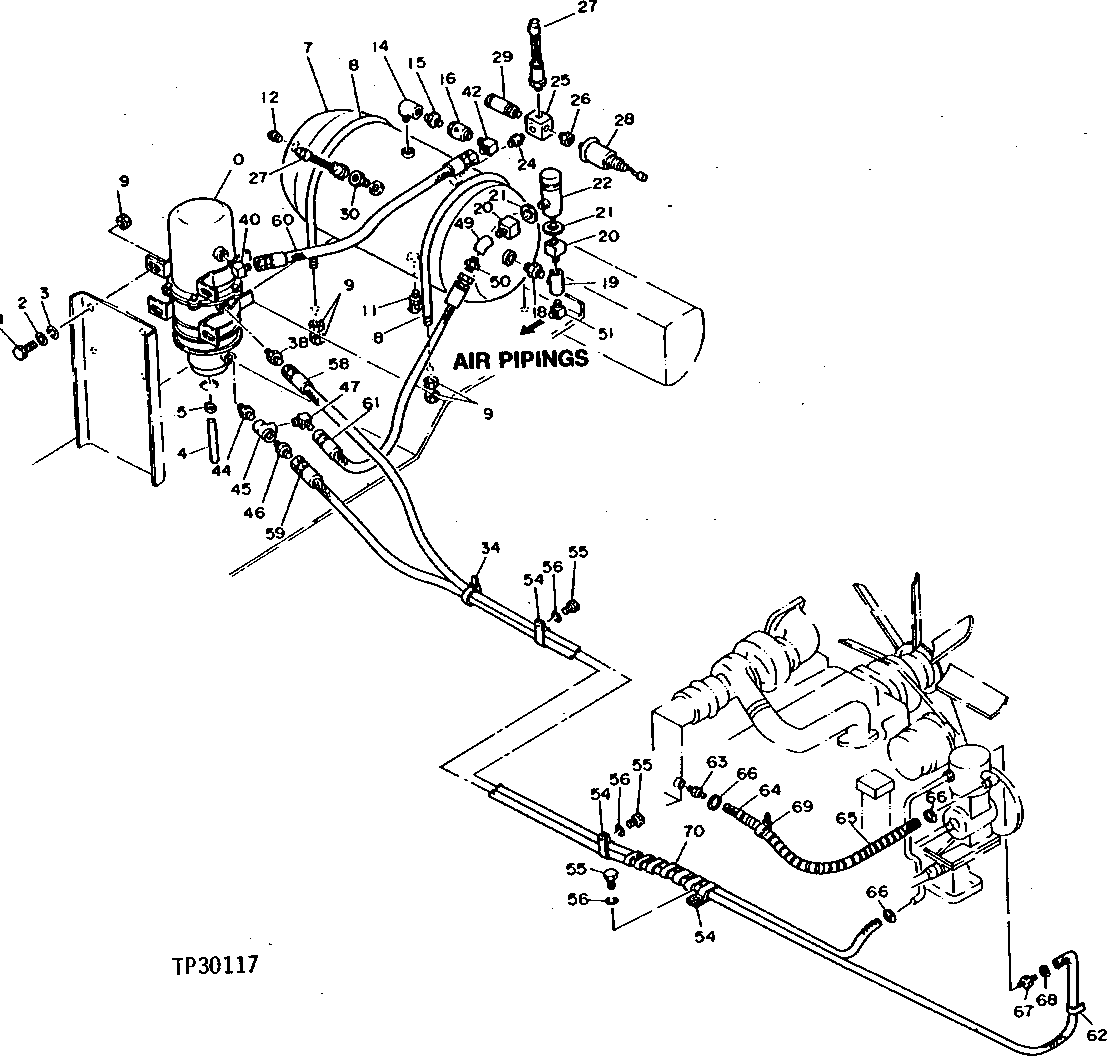

COMPRESSED AIR AND LINES TANK, DRIER, HOSES [02E09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4343737	1	RECEIVER-DRYER	(SUB FOR TH103966) (SUB FOR AT173104)
1	19M8761	4	Screw	M10 X 22, (SUB FOR AT127980 OR TH100456)
2	24M7028	4	Washer	10.500 X 20 X 2 MM
3	12M7066	4	Lock Washer	10 MM
4	-	1	Part 5	(CUT TO 3.93") (MAKE FROM TY22328) (SUB FOR AT126464)
5	WZ2141223	1	Hose Clamp	(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)
7	4172102	1	TANK	(SUB FOR TH103968)
8	4151541	2	U-BOLT	(SUB FOR TH103969)
9	14M7274	12	Nut	M10
11	4172103	1	DRAIN VALVE	(SUB FOR TH103970)
12	94-2024	1	Fitting Plug	(SUB FOR TH101292)
14	94-0632	1	Elbow Fitting	(SUB FOR TH107042)
15	94-1902	1	ADAPTER FITTING	(SUB FOR TH102083)
16	986953	1	CHECK VALVE	(SUB FOR TH102095)
18	94-1902	1	ADAPTER FITTING	(SUB FOR TH102083)
19	94-0661	1	TEE FITTING	(SUB FOR TH102950)
20	499820	2	ADAPTER FITTING	(SUB FOR TH103973)
21	984219	2	SEALING WASHER	(SUB FOR TH103974)
22	4092238	1	GOVERNOR	(SUB FOR TH103975)
24	94-1908	1	ADAPTER FITTING	(SUB FOR AT127193)
25	4165163	1	MANIFOLD	(SUB FOR AT126223)
26	3052675	1	PIPE BUSHING	(SUB FOR AT127192) (SUB FOR AT136549)
27	4206449	2	PRESSURE SWITCH	(SUB FOR TH110094)
28	4168339	1	SENDER	(SUB FOR TH103993)
29	986952	1	VALVE	(SUB FOR TH102104)
30	94-1608	1	PIPE BUSHING	(SUB FOR TH103982)
34	H77698	7	Tie Band	-
38	4154653	1	ADAPTER FITTING	(SUB FOR AT126746) (SUB FOR TH100989)
40	4207744	1	ELBOW FITTING	(SUB FOR AT126388)
42	T115889	1	ELBOW FITTING	(SUB FOR TH101035)
44	94-1901	1	Adapter Fitting	(SUB FOR TH102106)
45	94-0661	1	TEE FITTING	(SUB FOR TH102950)
46	T115957	1	ADAPTER FITTING	(SUB FOR TH101034)
47	4182734	1	Elbow Fitting	(SUB FOR TH104010)
49	94-0601	1	ELBOW FITTING	(SUB FOR AT127191)
50	4156430	1	ADAPTER FITTING	(SUB FOR TH101937)
51	T115889	1	ELBOW FITTING	(SUB FOR TH101035)
54	T32854	3	Clamp	(SUB FOR AT121964)
55	19M8324	3	Cap Screw	M10 X 16
56	12M7066	3	Lock Washer	10 MM
58	AT126880	1	HYDRAULIC HOSE - FABRICATE	-
59	AH89075	1	Hydraulic Hose	(SUB FOR AT126495)
60	AR98204	1	Hydraulic Hose	(SUB FOR AT126490)
61	AE42718	1	Hydraulic Hose	(SUB FOR AT126489)
62	4192965	2	CLAMP	(SUB FOR TH105628)
63	4168965	1	FITTING	(SUB FOR TH102119)
64	4183590	1	HYDRAULIC HOSE - FABRICATE	(SUB FOR TH103979)
65	4432360	1	HOSE GUARD	(SUB FOR TH105627 OR 4192956)
66	WZ2141223	3	Hose Clamp	(SUB FOR AR21837, THIS APPLICATION) (SUB FOR AA34965)
67	R67293	1	Fitting	(SUB FOR TH102116)
68	TY22464	1	Clamp	(SUB FOR TH100896 AND AT145649) (SUB FOR AR21836)
69	H77698	5	Tie Band	-
70	-	1	Part 53	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR TH100996, AT138222 OR 3052919)
