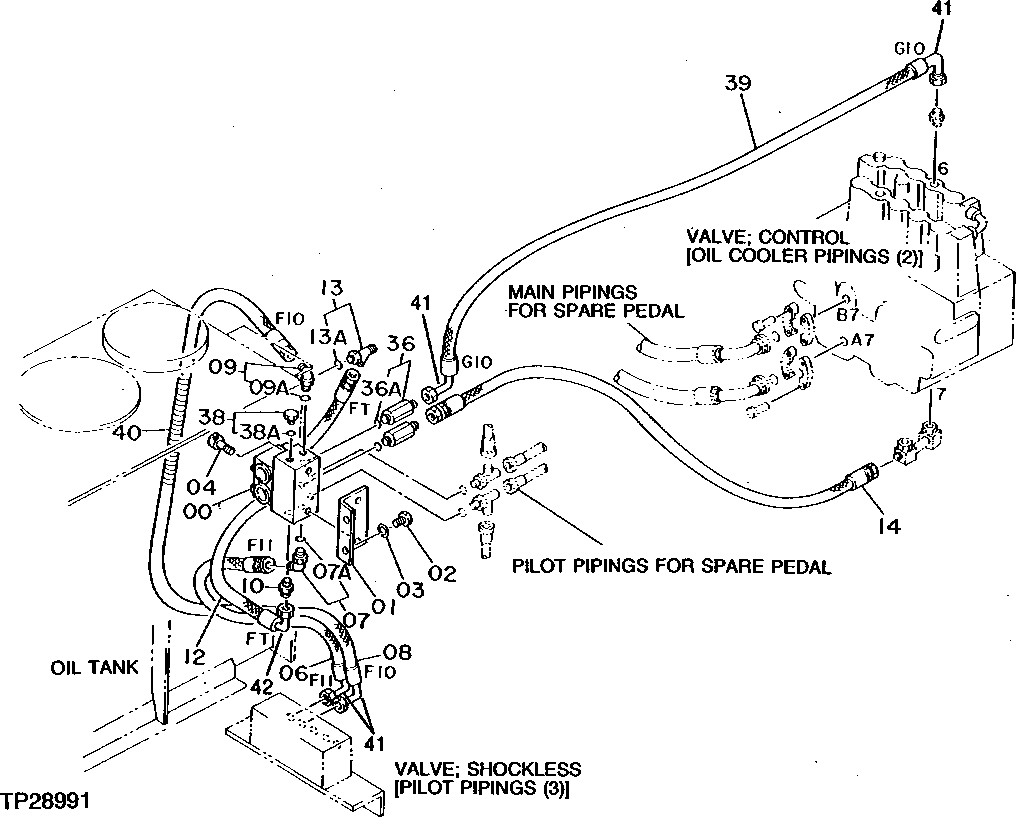

BLADE OR OUTRIGGER HYDRAULIC HOSES AND LINES (MAIN FRAME) [02I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4199095	1	SOLENOID VALVE	(SUB FOR AT126330)
1	4217247	1	ANGLE	(SUB FOR AT126673)
2	19M7938	2	Cap Screw	M10 X 20
3	12M7066	2	Lock Washer	10 MM
4	19M8506	2	Screw	M8 X 60
6	AT37543	1	HYDRAULIC HOSE - FABRICATE	9/16" X 483 MM (19") X 9/16", (SUB FOR AT126676, ALONG WITH AE24616)
7	4200472	1	Elbow Fitting	(SUB FOR TH111301)
8	AH108250	1	Hose	9/16" X 787 MM (31") X 9/16", (SUB FOR 4217324, ALONG WITH AE24616)
9	AT318014	1	Elbow Fitting	(SUB FOR 4156434) (SUB FOR TH101930)
10	X4-4FTX-S	1	Adapter Fitting	(SUB FOR TH100963)
12	4203161	1	Hydraulic Hose	(SUB FOR TH108352) (SUB FOR AT126677, ALONG WITH AH89069)
13	4208909	1	Tee Fitting	(SUB FOR AT126454)
14	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR AT134087)
36	4223934	2	Adapter Fitting	(SUB FOR AT134092)
38	AT318013	1	Drain Plug	(SUB FOR 4093624) (SUB FOR TH103949) (SUB FOR TH102536)
39	AT48428	1	Hydraulic Hose	9/16" X 708 MM (27-3/4") X 9/16", (SUB FOR AT134126, ALONG WITH (2) AE24616)
40	E90991	2	Hose Guard	(SUB FOR TH106022, 4133527 OR 4327293) (CUT TO 600MM LENGTH)
41	AE24616	4	Elbow Fitting	-
42	AH89069	1	Elbow Fitting	-
7A	M800650	1	Packing	-
9A	M800650	1	Packing	-
13A	CH11570	1	O-Ring	-
36A	M800650	1	Packing	-
38A	M800650	1	Packing	-
