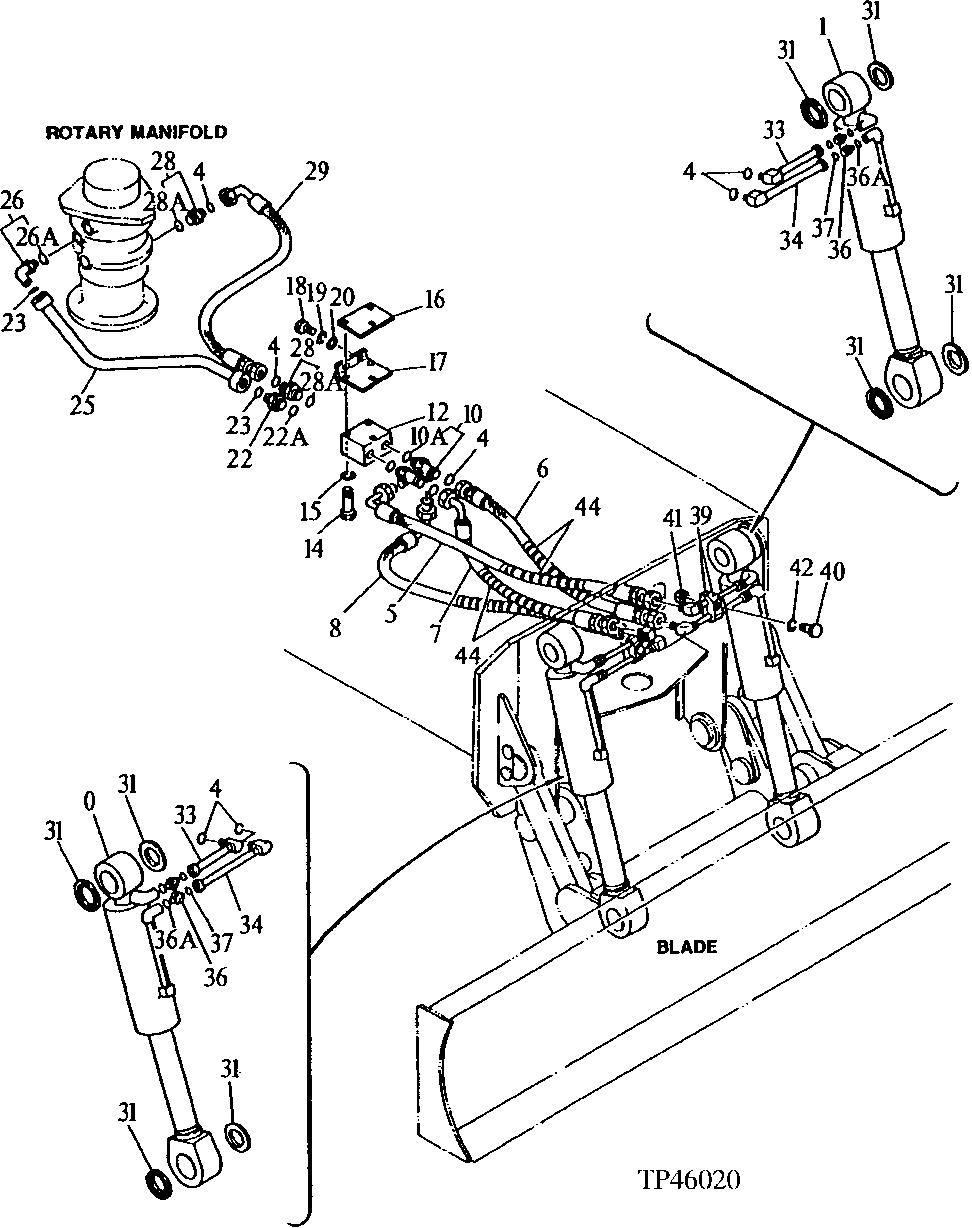

BLADE HYDRAULIC HOSES AND LINES (UNDERCARRIAGE) [02I19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	4231943	1	CYLINDER	(LEFT) (SUB FOR AT134119)
1	4231944	1	CYLINDER	(RIGHT) (SUB FOR AT134120)
4	T77857	10	O-Ring	(SUB FOR TH108323)
5	AT134117	1	Hydraulic Hose	13/16" X 750 MM (29-1/2") X 13/16"
6	AT134055	1	HYDRAULIC HOSE - FABRICATE	13/16" X 700 MM (27-1/2") X 13/16"
7	AT126691	1	Hydraulic Hose	13/16" X 750 MM (29-1/2") X 13/16"
8	AT134110	1	HYDRAULIC HOSE - FABRICATE	13/16" X 900 MM (35-1/2") X 13/16"
10	4205383	2	Tee Fitting	(SUB FOR AT134051)
12	4195894	1	CHECK VALVE	(SUB FOR AT126303)
14	19M8403	3	Cap Screw	M8 X 75
15	12M7056	3	Lock Washer	8 MM, (SUB FOR 12M7065)
16	4218501	1	PLATE	(SUB FOR AT126715)
17	4231942	1	BRACKET	(SUB FOR AT134118)
18	19M7402	2	Cap Screw	M10 X 25
19	12M7066	2	Lock Washer	10 MM
20	24M7101	2	Washer	11 X 34 X 3 MM, (SUB FOR TH101289)
22	X8-10F5OX	1	Adapter Fitting	(SUB FOR TH110204 OR TH101006, ALONG WITH U46489)
23	T77858	2	O-Ring	(SUB FOR TH108349)
25	8043534	1	OIL LINE	(SUB FOR AT134284)
26	4202404	1	ELBOW FITTING	(SUB FOR TH109577)
28	4189602	2	Fitting	(SUB FOR TH108350)
29	AT134059	1	HYDRAULIC HOSE - FABRICATE	13/16" X 600 MM (23-1/2") X 13/16"
31	TH105979	8	Seal	-
33	9732035	2	OIL LINE	(SUB FOR AT134301)
34	9732036	2	OIL LINE	(SUB FOR AT134302)
36	X8-10F5OX	4	Adapter Fitting	(SUB FOR TH110204 OR TH101006, ALONG WITH U46489)
37	T77858	4	O-Ring	(SUB FOR TH108349)
39	4189858	4	Clamp	(SUB FOR TH108333)
40	19M7361	2	Cap Screw	M12 X 50
41	14M7275	2	Nut	M12
42	12H301	2	Lock Washer	1/2"
44	-	4	Part 37	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222) ( TH100996 NO LONGER AVAILABLE)
10A	4506418	1	O-Ring	(SUB FOR U46489)
22A	4506418	1	O-Ring	(SUB FOR U46489)
26A	4506418	1	O-Ring	(SUB FOR U46489)
28A	4506418	1	O-Ring	(SUB FOR U46489)
36A	4506418	4	O-Ring	(SUB FOR U46489)

BLADE HYDRAULIC HOSES AND LINES (UNDERCARRIAGE) [02I19]
