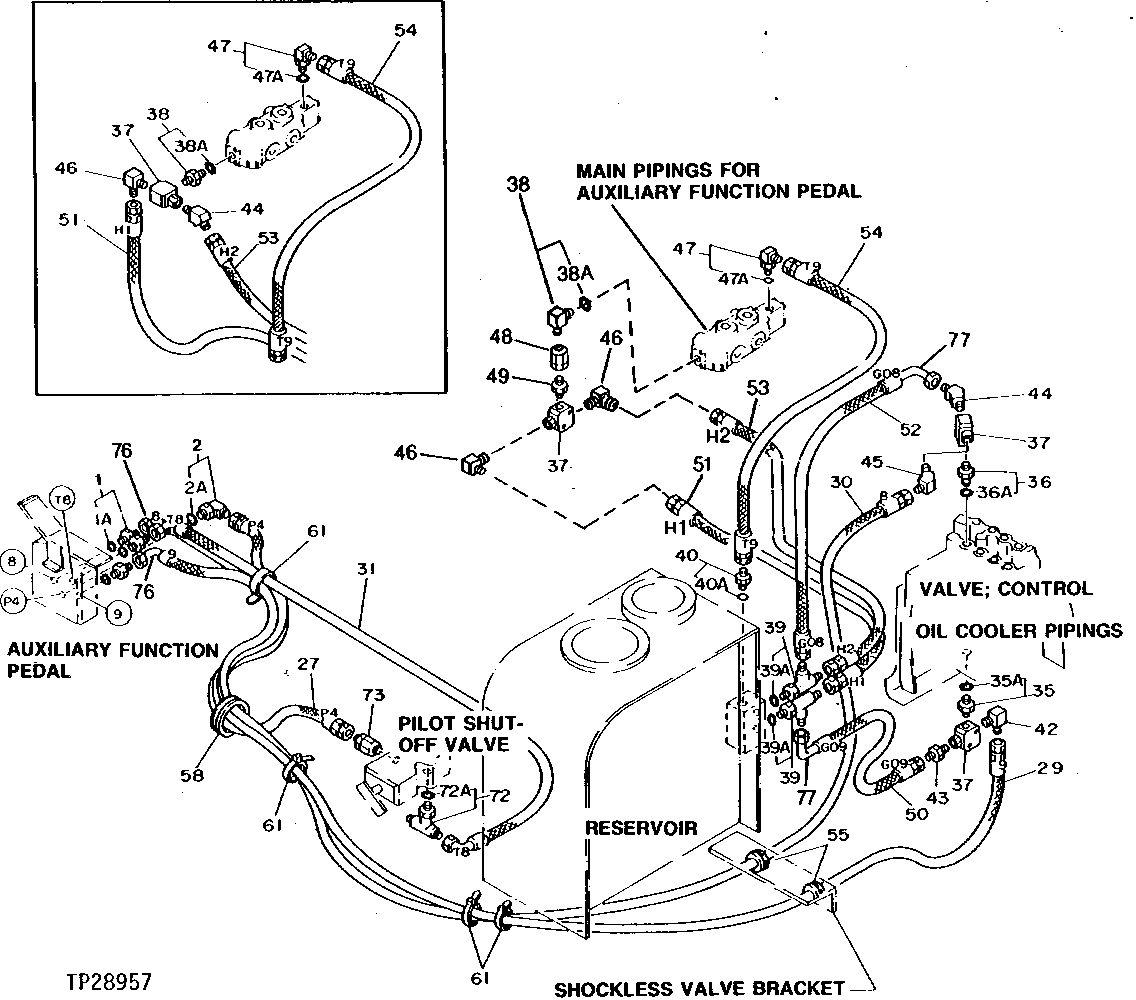

AUXILIARY FUNCTION PILOT HOSES AND LINES [02I09]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	4200467	3	Adapter Fitting	(SUB FOR TH108417)
2	AT318014	1	Elbow Fitting	(SUB FOR 4156434) (SUB FOR TH101930)
27	AT57860	1	Hydraulic Hose	9/16" X 1 016 MM (40") X 9/16", (SUB FOR AT126731)
29	AT61195	1	HYDRAULIC HOSE - FABRICATE	9/16" X 2 794 MM (110") X 9/16", (SUB FOR AT126733, ALONG WITH AE24616)
30	AA36172	1	HYDRAULIC HOSE	9/16" X 3 300 MM (130") X 9/16", (SUB FOR AT126734, ALONG WITH AE24616)
31	AT69452	1	Hydraulic Hose	(SUB FOR AT126735)
35	4219343	1	ADAPTER FITTING	(SUB FOR AT134323)
36	4219344	1	ADAPTER FITTING	(SUB FOR AT126727)
37	4219700	3	FLOW CONTROL HYD. VALVE	(SUB FOR AT126744)
38	4174585	1	ADAPTER FITTING	(SUB FOR AT130826) (USE WITH AT130824 CONTROL VALVE)
38	4152200	1	ADAPTER FITTING	(SUB FOR AT126210) (USE WITH AT126343 CONTROL VALVE)
39	4203171	2	Tee Fitting	(SUB FOR TH110578)
40	4200465	1	Adapter Fitting	(SUB FOR TH108328)
42	4215652	1	Elbow Fitting	(SUB FOR AT126655)
43	X4-4FTX-S	1	Adapter Fitting	(SUB FOR TH100963)
44	4154655	2	Elbow Fitting	(SUB FOR TH101056) (USE WITH AT126343 CONTROL VALVE)
44	4154655	1	Elbow Fitting	(SUB FOR TH101056) (USE WITH AT130824 CONTROL VALVE)
45	4219342	1	Elbow Fitting	(SUB FOR AT126725)
46	4154656	1	Elbow Fitting	(SUB FOR TH101588) (USE WITH AT126343 CONTROL VALVE)
46	4154656	2	Elbow Fitting	(SUB FOR TH101588) (USE WITH AT130824 CONTROL VALVE)
47	4154670	1	Elbow Fitting	(SUB FOR TH100951)
48	4225316	1	HYD ACTUATED CONTROL VALVE	(SUB FOR AT130827) (USE WITH AT130824 CONTROL VALVE)
49	T116057	1	Fitting	(SUB FOR TH101997) (USE WITH AT130824 CONTROL VAVLE)
50	AE42718	1	Hydraulic Hose	(SUB FOR AT134324 ALONG WITH AH89069)
51	AE42282	1	HYDRAULIC HOSE	(USE WITH AT130824 CONTROL VALVE)
51	AH111269	1	HYDRAULIC HOSE	(SUB FOR AT134325)
52	AT126850	1	Hydraulic Hose	(SUB FOR AT126732, ALONG WITH AH89069)
53	AT126850	1	Hydraulic Hose	(USE WITH AT130824 CONTROL VALVE)
53	AE42282	1	HYDRAULIC HOSE	(SUB FOR AT134326)
54	AE42281	1	Hydraulic Hose	(SUB FOR AT126728)
55	4208985	2	GROMMET	(SUB FOR AT126462)
58	4509404	1	Grommet	(SUB FOR TH100553)
61	H77698	10	Tie Band	-
72	4208911	1	Tee Fitting	(SUB FOR AT126456)
73	4188687	1	FILTER	(SUB FOR TH108433)
76	AE24616	2	Elbow Fitting	-
77	AH89069	2	Elbow Fitting	-
1A	M800650	1	Packing	-
2A	M800650	1	Packing	-
35A	CH11570	1	O-Ring	-
36A	CH11570	1	O-Ring	-
38A	M800650	1	Packing	-
39A	M800650	1	Packing	-
40A	M800650	1	Packing	-
47A	M800650	1	Packing	-
72A	CH11570	1	O-Ring	-
