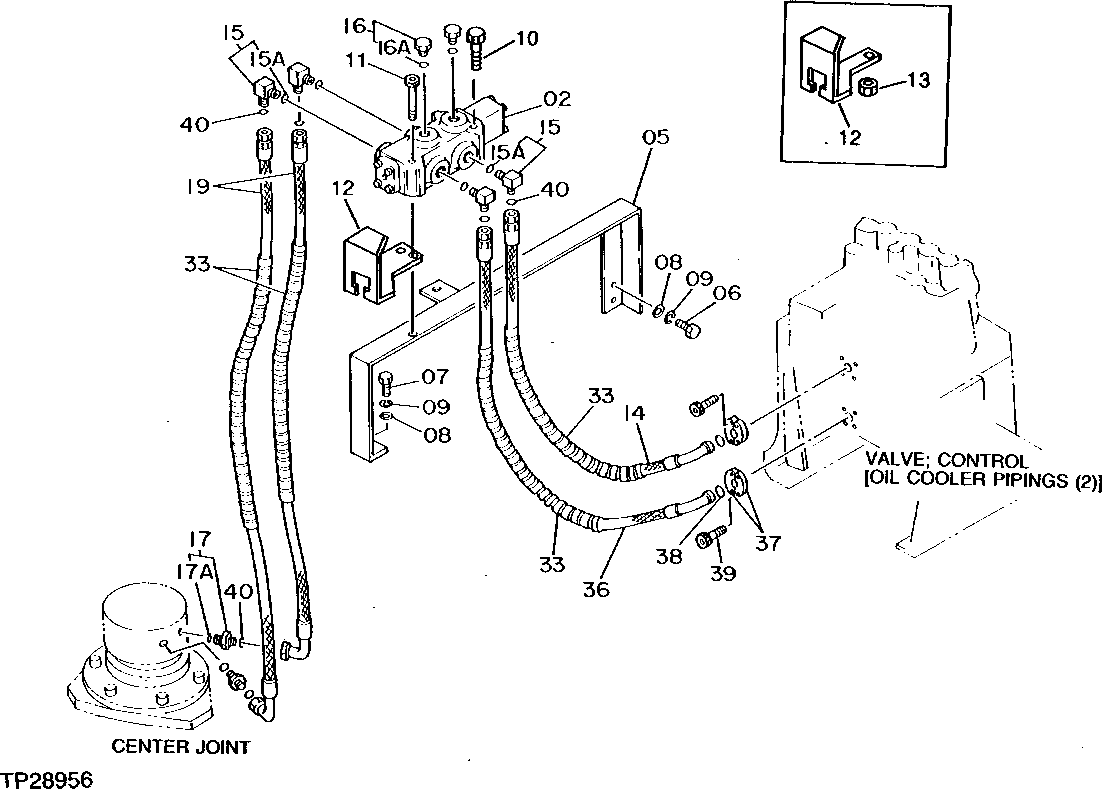

AUXILIARY FUNCTION HYDRAULIC HOSES AND LINES [02I07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
2	4263455	1	HYD ACTUATED CONTROL VALVE	(SUB FOR AT126343) (SUB FOR AT130824)
2	-	1	Part 1	(SUB AT130824) ( AT126343 NO LONGER AVAILABLE)
5	8043181	1	SUPPORT	(SUB FOR AT134282)
6	19M8011	2	Cap Screw	M12 X 30
7	19M7403	1	Cap Screw	M12 X 35
8	24M7047	3	Washer	13 X 24 X 2.500 MM
9	12H301	3	Lock Washer	1/2"
10	19M8547	1	Screw	M12 X 90, (SUB FOR AT127258 OR M341290)
11	19M8442	2	Screw	M12 X 100, (USE WITH AT126343)
11	19M8547	2	Screw	M12 X 90, (USE WITH AT130824) (SUB FOR AT127258 OR M341290)
12	3053525	1	COVER	(SUB FOR AT130803) (SUB FOR AT130825)
13	14M7275	2	Nut	M12, (USE WITH AT126343)
14	AT126737	1	HYDRAULIC HOSE - FABRICATE	1/2" X 650 MM (25-1/2") X 13/16"
15	4217341	4	Elbow Fitting	(SUB FOR AT126684)
16	4174542	2	Drain Plug	(SUB FOR TH110478)
17	4189602	2	Fitting	(SUB FOR TH108350)
19	AT126690	2	HYDRAULIC HOSE - FABRICATE	13/16" X 700 MM (27-1/2") X 13/16"
33	-	4	Part 21	(MAKE FROM XHG-075 BULK MATERIAL, CUT TO LENGTH) (SUB FOR AT138222) ( TH100996 NO LONGER AVAILABLE)
36	AT126682	1	HYDRAULIC HOSE - FABRICATE	1/2" X 800 MM (31-1/2") X 13/16"
37	4510173	4	Fitting	(SUB FOR TH108341)
38	R69667	2	O-Ring	(SUB FOR T59013)
39	19M8439	8	Screw	M8 X 25
40	T77857	6	O-Ring	(SUB FOR TH108323)
15A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
16A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
17A	4506418	1	O-Ring	(SUB FOR U46489)

AUXILIARY FUNCTION HYDRAULIC HOSES AND LINES [02I07]
