Открытый узел

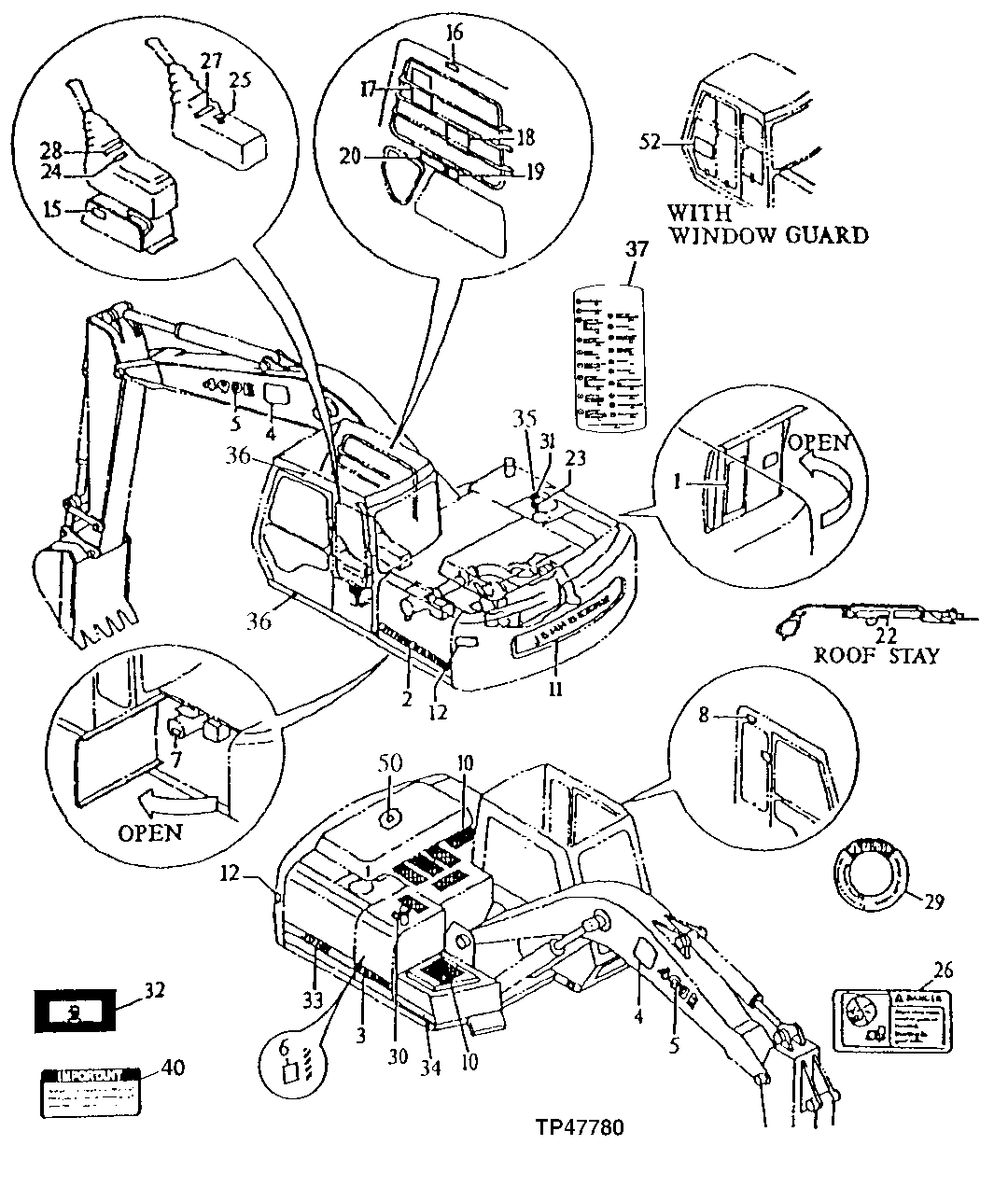

Labels and Decals (020405 - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T151992	1	Label	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) Periodic Maintenance
1	T148311	1	Label	Periodic Maintenance, SUB FOR T114396
1	T153556	1	Label	-
1	T153573	1	Label	Periodic Maintenance French, K2
2	T146531	1	Label	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) STRIPE LEFT SIDE
3	T147098	1	Label	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) SUB FOR T146528, DEERE STRIPE RIGHT SIDE
4	JD5627	2	LABEL	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) Leaping Deer
5	T146530	2	Label	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) Model Designation
6	T149983	1	Label	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) OIL LEVEL CHECK, LOCATED TO LEFT OF HYDRAULIC OIL SIGHT LEVEL ON HYDRAULIC TANK
6	T153431	1	Label	K2, OIL LEVEL CHECK - FRENCH
6	T153415	1	Label	Spanish, K3, OIL LEVEL CHECK
7	T128279	1	LABEL	Spanish, K3, AIR CLEANER
7	T302226	1	Safety Sign	Air Cleaner No Text, SUB FOR R56902
7	T128280	1	LABEL	French, K2, AIR CLEANER
7	-	1	Part 12	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) R56902 NLA, ORDER T302226, AIR CLEANER
8	T146664	1	Safety Sign	SUB FOR TH111901, WINDOW LOCK INSIDE CAB
8	T148909	1	Safety Sign	French, WINDOW LOCK INSIDE CAB
8	T148904	1	Safety Sign	Spanish, WINDOW LOCK INSIDE CAB
9	4121128	1	Mat	Not Illustrated, SUB FOR TH106654, ANTI-SKID TAPE
10	H21259	8	Mat	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) CLEAT, OPERATOR DECK
11	T146526	1	Label	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) John Deere Counterweight
12	T153399	1	Label	Stay Clear French, K3
12	T153426	1	Label	Stay Clear French, K2
12	T145893	2	Safety Sign	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) Stay Clear, SUB FOR T114398
15	4299059	1	Label	Hydraulic Lockout, SUB FOR T138886
16	T146668	1	Safety Sign	SUB FOR T114389, WARNING WINDOW BAR
16	T148908	1	Safety Sign	French, K2, WARNING WINDOW BAR
16	T148905	1	Safety Sign	Spanish, K3, WARNING WINDOW BAR
17	2033492	1	Label	Lift Capacity, SUB FOR T138841
17	T153572	1	Label	Lift Capacity French, K2
17	T153557	1	Label	Lift Capacity Spanish, K3
18	T153559	1	Label	Spanish, K3, START-STOP OPERATION
18	T153571	1	Label	French, K2, START-STOP OPERATION
18	2034293	1	Label	SUB FOR T138851, START-STOP OPERATION
19	T146667	1	Safety Sign	SUB FOR T114392, DANGER ELECTRICAL HAZARD
19	T148910	1	Safety Sign	French, K2, DANGER ELECTRICAL HAZARD
19	T148906	1	Safety Sign	Spanish, K3, DANGER ELECTRICAL HAZARD
20	T146666	1	Safety Sign	Caution, SUB FOR T138835
20	T148911	1	Safety Sign	Caution French, K2
20	T148907	1	Safety Sign	Caution Spanish, K3
22	4289908	1	Label	SUB FOR AT155731(CAB ROOF DOOR ARROW)
23	P63448	1	Label	(<service-part>AT169407</service-part> REPAINT KIT. ALSO ORDER <service-part>4295579</service-part > TAPE ASEMBLY.) SUB FOR AT155733(PUMP BLEED)
24	4288971	1	Label	SUB FOR AT155729(ETHER AID/MOTION CANCEL)
25	4264805	1	Label	Ignition Switch, SUB FOR AT155730

Labels and Decals (020405 - )
