Controlled Load Lowering Device Kit (Boom Cylinder)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
0	-	1	Part 1	(AT171150 NLA) (BOOM CYLINDER LOAD LOWERING) (CONTAINS ALL ITEMS LISTED ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS PAGES)
1	4217341	2	Elbow Fitting	(SUB FOR AT126684)
24	9739018	1	Support	(SUB FOR AT172351)
25	19M7403	2	Cap Screw	M12 X 35
25	12H301	2	Lock Washer	1/2"
25	24M7047	2	Washer	13 X 24 X 2.500 mm
27	4190125	2	Clamp	(SUB FOR TH108960)
28	19M7361	2	Cap Screw	M12 X 50
28	12H301	2	Lock Washer	1/2"
29	8059789	1	Line	(SUB FOR AT172352)
30	3060670	1	Manifold	(SUB FOR AT172353)
31	19M7493	2	Cap Screw	M12 X 40
31	12H301	2	Lock Washer	1/2"
32	A853166	1	Adapter Fitting	(SUB FOR AT107392 OR 4189619)
33	4174542	1	Drain Plug	(SUB FOR TH110478)
34	4157562	2	Elbow Fitting	(SUB FOR TH109540)
36	AT172354	2	Hydraulic Hose	-
37	4251920	1	Hydraulic Hose	(SUB FOR AT172355)
38	-	1	Part 23	(SUB FOR AT172356) (4210356 NLA)
39	T77857	4	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
40	T77858	4	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
46	9735916	1	Channel	(SUB FOR AT157648)
47	-	1	Part 27	(AT172357 NLA)
49	-	5	Part 28	(MAKE FROM XHG-075 BULK MATERIAL, CTL) (SUB FOR AT138222)
1A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
32A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
33A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)
34A	AT318035	1	O-Ring	(SUB FOR 4506424, TH100055)

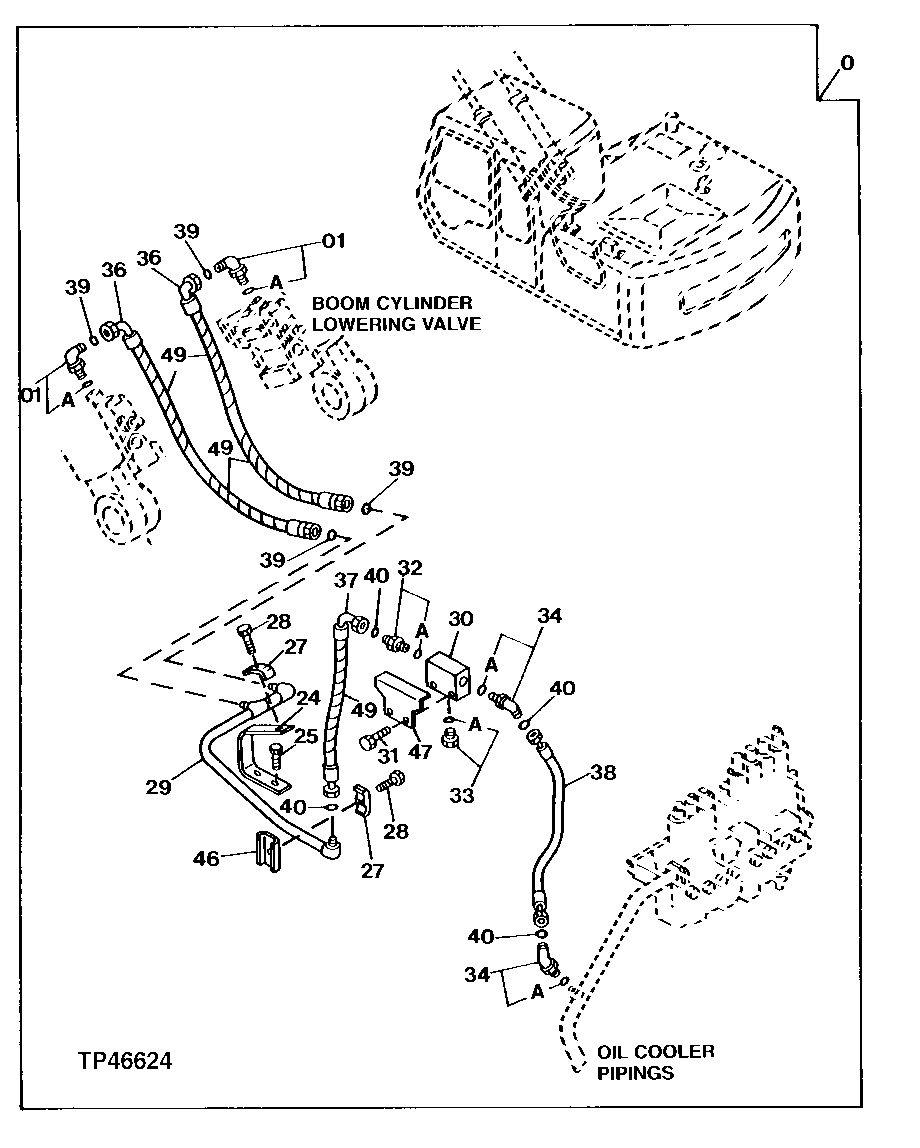

Controlled Load Lowering Device Kit (Boom Cylinder)
